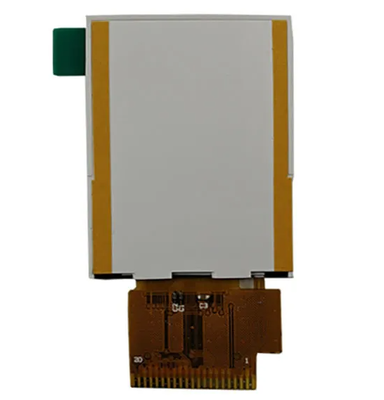

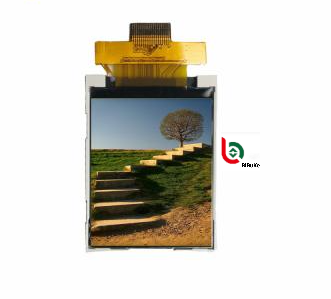

1.77 Inch 128x160 Resolution TFT LCD Display with MPU 8 Bit Interface Small TFT LCD Module

This 1.77-inch TFT liquid crystal module is a compact color display device with a resolution of 128×160 (QQVGA). It adopts an 8-bit MPU parallel interface (compatible with 8080 timing) and is equipped with an internal ST7735S or GC9106 driver IC. It can directly interface with single-chip microcontrollers such as STM32 and 51.

• Physical Specifications: Dimensions approximately 33.90×44.05×2.5mm, effective display area 28.03×35.04mm, 20-pin FPC interface, either soldering or connector installation is possible.
• Display Performance: TN transmissive panel, 262K colors (6bit), brightness 200-500cd/m², contrast 250:1-500:1, response time approximately 30ms, typical viewing angle 12 o'clock direction.
• Electrical Characteristics: Operating voltage 2.8V (IO port 1.8-3.3V), built-in 2 white LED backlights, low power consumption design, suitable for battery-powered devices.
• Environmental Adaptability: Industrial-grade temperature range -20℃ to 70℃, complies with RoHS environmental standards.

This module boasts core advantages of small size, low cost and easy driving, and is widely applied in various embedded and portable devices:

• Industrial Control: Instruments and meters, temperature controllers, data collectors, human-machine interfaces (HMI)
• Consumer Electronics: Smart wristbands, electronic cigarettes, razors, beauty devices, power banks, MP3/MP4 players
• Medical Equipment: Fetal heart monitors, blood glucose meters, portable health monitoring devices
• Smart Home: Coffee machines, water dispensers, remote controls, small household appliance control panels
• Vehicle and Security: Rearview camera auxiliary screens, access card readers, small monitoring displays
• Education and Development: Single-chip microcomputer development boards, Arduino/STM32 learning kits, experimental demonstration screens

• Universal Interface: 8-bit MPU parallel port, no need for complex SPI configuration, can be stably driven by low-speed MCU
• High Integration: The driver IC and backlight circuit are built-in, the peripheral is extremely simple, shortening the development cycle
• Cost-Friendly: Mature for mass production, low price, suitable for large-scale low-cost projects
