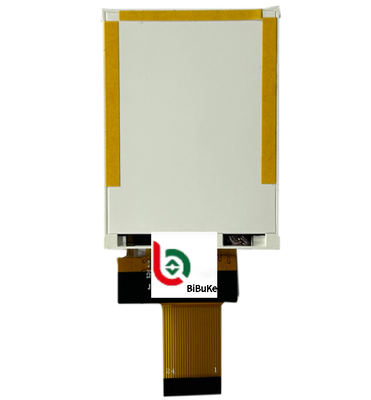

2" MCU Interface 176x220 Pixels With ILI9225G IC TFT LCD Display
This 2-inch TFT LCD display features 176x220 pixel resolution with ILI9225G driver IC, designed for industrial and embedded applications.
Key Features
- Cost-effective 2-inch color TFT LCD display
- 176x220 QCIF resolution
- MCU interface with 8/16-bit parallel support
- TN type display with 6 o'clock viewing direction
- Customizable touch screen options available
| Product |
2" Inch TFT LCD Display |
| Resolution |
176x220 Dots |
| Interface |
MPU 8/16_Bit |
| Connection |
FPC Connector Type |
| Operating Temp. |
-20℃ To +70℃ |
| Touch Screen |
Without Touch Screen (Customizable) |
| Viewing Direction |
6 O'clock |
| Pin Number |
36 Pins |
| Surface Luminance |
300 Cd/m2 |
Product Introduction
This 2-inch TFT liquid crystal display module utilizes the ILI9225G driver IC with 176×220 pixel resolution and MCU interface (8/16-bit parallel). It's a compact full-color display supporting 262K colors in TN display mode.
Core Parameters
- Size: 2 inches (effective display area approximately 31.68×39.60mm)
- Resolution: 176 (RGB) × 220 pixels, dot pitch approximately 0.18×0.18mm
- Driver IC: ILI9225G with integrated source/gate driver and display RAM
- Interface: MCU (i80/M68) 8/16-bit parallel port
- Brightness: Typical 250-300cd/m² with 12-point directional viewing angle
- Voltage: 3.3V power supply with approximately 20mA working current
- Dimensions: Approximately 37.68×51.30×2.2mm with FPC wiring
Applications
- Industrial control and instrumentation: handheld terminals, data collectors, detectors
- Consumer electronics: MP3/MP4 players, smart wristbands, household appliances
- Medical equipment: portable blood glucose meters, ECG monitors, health wristbands
- IoT and embedded projects: Arduino, STM32 development boards
- Other scenarios: smart door locks, vehicle displays, educational devices
Product Drawing
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product issues
- Custom logo printing and model number application
- Competitive shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- Comprehensive quality inspection before shipment
- 24-hour response time for customer inquiries
- Custom LCD display manufacturing based on specifications
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module and tooling development.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can customize LCD modules. Please send your drawing paper or provide outline size, display information, glass thickness, polarizer, display type, connector mode, temperature specifications, supply voltage, viewing direction, and drive conditions.
What is leading time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing upon drawing confirmation.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Leading Time?
For standard products in stock: 1 day after payment. For mass production of special orders: approximately 15-30 days. We'll inform you if we can complete earlier.
