1.9 Inch IPS TFT LCD Display with 350 cd/m2 Brightness and SPI/RGB Interface

1.9 Inch IPS TFT LCD Display with 350 cd/m2 Brightness and SPI/RGB Interface
Features Gallery Product Description Chat Now
Features
Specifications
Surface Luminance: 350 Cd/m2 (nits)
Connect: Plugging (can Be Customized)
Display Mode: Normally White,Transmissive
Pin Number: 30 Pins
Interface Types: SPI / RGB
Displaysize: 1.9 Inches
Storage Temperature: -20℃ To +60℃
Outline Dimension: 25.8 X 49.72 X 1.43 Mm
Basic Infomation
Document: Product Brochure PDF
Payment & Shipping Terms
Product Description

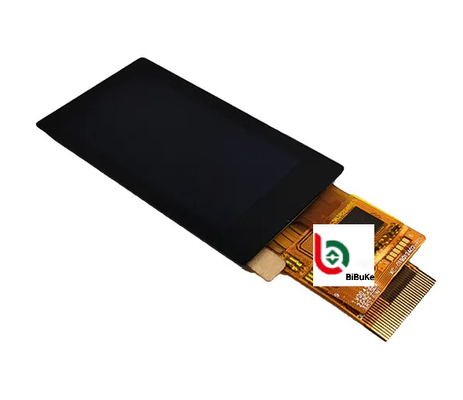

1.9" With SPI/RGB Interface, 350cd/m² IPS CTP TFT LCD Display
Product Overview
Product: 1.9" inch TFT Touch Screen: Capacitive Touch Panel (CTP)
Resolution: 170 × 320 Viewing Direction: IPS Full Viewing Angle (80/80/80/80)
Interface: SPI / RGB Outline Dimension: 25.8 × 49.72 × 1.43 mm
Active Area: 42.72 × 22.7 mm Driver IC: ST7789V or Equivalent
Pin Number: 30 Pins Connection: Plugging (can be customized)
Surface Luminance: 350 cd/m² (nits) LED Lifetime: 40,000 Hours
Product Features
This 1.9-inch IPS TFT liquid crystal display module integrates a capacitive touch screen (CTP) and supports both SPI and RGB interfaces. With typical brightness of 350 cd/m², it offers an industrial-grade high-performance display solution with excellent cost-effectiveness.
Core Specifications: Resolution 170 (RGB) × 320, Display Area 22.7 × 42.72mm, Module Size Approximately 25.8 × 49.72 × 1.43mm, Uses ST7789 Series Driving IC, Capable of Displaying 262K Colors.
IPS Full Viewing Angle: Up, Down, Left, and Right View Angles All Above 80°, High Color Reproduction Accuracy, No Obvious Color Difference or Dimming Phenomenon When Viewed from Different Angles.
Dual Interface Design: SPI Interface Wiring is Simple and Occupies Fewer Pins, Suitable for Low-Speed Control; RGB Interface Can Achieve High Refresh Rate and High-Definition Picture Quality, Suitable for Different Main Controllers and Bandwidth Requirements.
CTP Capacitive Touch: Supports Multi-Point Touch, Responsive, High Precision, Surface Hardness and Anti-Interference Capability Are Strong, Suitable for Industrial and Consumer Touching Scenarios.
Industrial Grade Reliability: Working Temperature -20℃~+70℃, Storage Temperature -30℃~+80℃, Voltage 2.4~3.3V (Typical 2.8V), Capable of Adapting to Complex Environments for Long-Term Stable Operation.
Main Applications
  • Industrial Control: Embedded Systems, PLC Control Panels, Industrial Instruments and Meters, Automation Equipment Human-Machine Interface (HMI)
  • Handheld Terminal: Data Collectors, Detectors, Medical Handheld Devices, Smart Locks, Intercom Sub-Panels
  • Smart Home: Smart Switch Panels, Thermostats, Video Doorbells, Small Household Display Screens
  • Consumer Electronics: Wearable Devices, VR/AR Accessories, Portable Navigation (GPS), Audio Players, Game Console Sub-Panels
  • Automotive and Security: Reverse Camera Auxiliary Screens, Driving Recorders, Access Control Systems, Monitoring Displays
Product Drawings
1.9 Inch IPS TFT LCD Display with 350 cd/m2 Brightness and SPI/RGB Interface 0 1.9 Inch IPS TFT LCD Display with 350 cd/m2 Brightness and SPI/RGB Interface 1 1.9 Inch IPS TFT LCD Display with 350 cd/m2 Brightness and SPI/RGB Interface 2
Product Video
Our Services
  • Free repair within one year after the shipment of products from us
  • Replacement within 30 days after the shipment of products from us due to products' problems
  • We can print your logo and stick your model number on the displays
  • We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts
  • Professional technician supports. We have a good after-sales service team. They can solve your problems in time
  • All goods will be inspected and tested by our engineers and QC/QA before packing and shipment
  • Customer satisfaction is most important to us. If you have any problem or questions regarding our transaction, please contact us by Email or online. It will be responded within 24 hours
  • Products pictures only for your reference. Please kindly refer to the specification. We can provide the products based on the specification, or you can offer your own specification or drawing. We can customize all kinds of LCD displays for you
Frequently Asked Questions
Q: I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Can you provide this?

A: No problem. Firstly, please kindly send us your specification/drawing paper. If you don't have the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.

Q: This LCD is just what we want, but it is big size. Do you have any smaller size? And the display content need to be changed a little.

A: For the segment type LCD module, if you need to modify the outline size or display content, a new LCD glass module is needed. We have to open new tooling for you.

Q: This LCD display is HTN type, but I want STN type. Can you make?

A: That's all right. We can change for you as per your request.

Q: I want to customize a new LCD module. Can you do?

A: Yes, we can. Please send your drawing paper. If you don't have one, please advise us the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp, Operating Temp, Supply Voltage, Viewing direction, drive condition). We can customize for you.

Q: What is the lead time for tooling?

A: Generally speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment. We can report you the exact time when you confirm the drawing paper.

Q: Can you send us samples for checking?

A: Yes. Samples order is available.

Q: What is the Lead Time?

A: If we have stock for the standard ones, the lead time is one day after payment. If it is the mass production for special ones, the lead time is about 15-30 days. If we can finish earlier, we will report the information in advance.
