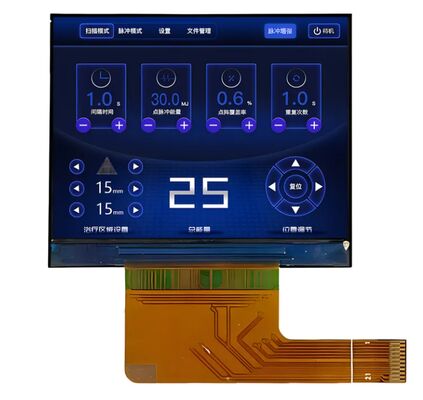

2 Inch 480x360 Dots IPS TFT LCD Screen Module with MIPI/RGB Interface for Embedded Devices

This is a 2-inch IPS TFT LCD screen module with a resolution of 480×360. It is equipped with MIPI/RGB dual interfaces and features small size, high resolution, wide viewing angle and multi-interface compatibility. It is suitable for embedded and portable device applications.

• Size: 2 inches (horizontal landscape)
• Resolution: 480×360 pixels (RGB arrangement), high pixel density, clear text and images
• Panel type: IPS, full viewing angle (approximately 85° up, down, left, and right), good color consistency, no color bias
• Brightness: Typical 350-500 cd/m², some high-brightness models can reach 850-1000 cd/m²
• Contrast ratio: Approximately 800:1-1500:1, vivid colors
• Color: 16.7M colors (24-bit), detailed display
• Driver IC: Mainstream ST7701S, stable and reliable
• Backlight: WLED, lifespan approximately 40,000 hours

• MIPI (2 Lane): High-speed serial interface, few pins, low power consumption, simple wiring, suitable for mobile phones / main control chips
• RGB: Parallel interface, compatible, suitable for STM32, FPGA, etc. embedded main control
• Interface Form: FPC flexible ribbon cable (24-30 pins), flexible soldering / plugging

• Module Size: Approximately 46×40.9×2.5 mm, lightweight and compact
• Operating Temperature: -20°C to +70°C, industrial-grade wide temperature range
• Power Supply: 2.6-3.3V (typical 2.8V), low power consumption
• Touch: Optional capacitive touch (such as GT911), supports multi-touch

• Industrial Control: Small PLC, industrial instruments, data collectors, automation control panels, suitable for harsh conditions
• Medical Portable Devices: Oxygen sensors, blood glucose meters, electrocardiogram monitors, portable ultrasound terminals, low power consumption + high quality suitable for battery-powered scenarios
• Smart Wearables and Consumer Electronics: Smart watches, fitness trackers, portable players, Bluetooth speakers, small size and high resolution enhance interaction experience
• Smart Home: Smart locks, thermostats, smart switches, video doorbells, as a status display and interaction window
• Embedded Development: STM32/FPGA prototype development, DIY projects, IoT terminals, MIPI/RGB dual interface compatible with various main controllers
• Imaging and Security: Camera viewfinder, dash cams, access control terminals, wide viewing angle suitable for multi-angle viewing

• Free repair within one year after the shipment of products from us.
• Replacement within 30 days after the shipment of products from us due to products' problems.
• We can print your logo and stick your model No. on the cameras.
• We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
• Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
• All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
• Customers satisfactory is most important to us. If you have any problem or questions regarding our transaction. Please contact us by Email or online. It will be responded within 24 hours.
• Products pictures only for your reference. Please kindly refer to the specification. We can provide the products basic on the specification. Or you can offer your own specification or drawing, we can customize all kinds of LCD displays for you. Thanks for your kind support always.
