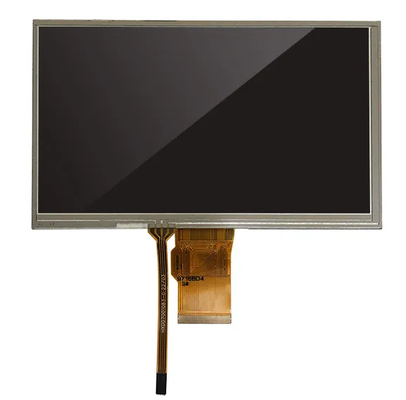

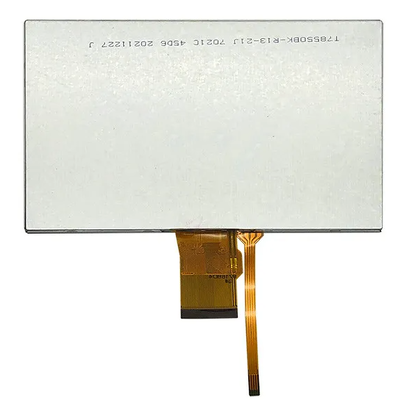

7 Inch 800x480 Dots RGB 24 Bit TFT LCD Display With Resistive Touch Panel

This 7-inch TFT liquid crystal display module features a resolution of 800×480, RGB 24-bit parallel interface, and integrated four-wire resistive touch screen. Characterized by high cost-effectiveness, industrial-grade stability, and strong environmental adaptability, it serves as a classic general-purpose screen for embedded and industrial control applications.

• Size and Ratio: 7-inch diagonal, 16:9 widescreen format offering balanced portability and viewing area
• Resolution: 800×480 (WVGA), 24-bit RGB true color (16.7M colors) for clear, sharp text and graphics
• Panel and Viewing Angle: Typically TN panels with 70°/50° viewing angles; upgraded models available with MVA/IPS technology and 140°-170° viewing angles
• Brightness and Contrast: 250-400 cd/m² brightness with 500:1-800:1 contrast ratio for excellent indoor clarity
• Backlight and Lifespan: LED side-backlit design with approximately 1-2W power consumption and over 50,000 hours lifespan for stable long-term operation
• Interface: 24-bit RGB parallel interface (40Pin FFC/FPC) for high-speed transmission and stable image quality, compatible with mainstream embedded controllers including STM32 and ARM

• Type: Four-wire resistive touch screen (RTP) with pressure sensing activation
• Features: Single-point touch with precise positioning, strong anti-interference capability, and low cost
• Performance: 80% light transmittance with service life up to 1 million presses
• Advantages: Resistant to dust, moisture, and oil stains; stable operation with gloves; no capacitor screen errors or response issues

• Thickness: Approximately 2.5-3.5 mm with PCB baseplate for easy integration and installation
• Operating Temperature: -20°C to +70°C industrial-grade wide temperature range suitable for harsh conditions
• Protection: Scratch-resistant surface with optional dust and moisture resistance; compatible for 24-hour continuous indoor operation

• Industrial Control HMI: PLC human-machine interfaces, equipment control panels, automation production line terminals
• Smart Terminal and Equipment: Medical portable monitors, IoT gateways, data collectors, intelligent delivery systems
• Vehicle and Security: Vehicle monitoring terminals, rearview mirrors, driving record devices, access control systems
• Smart Home and Commercial: Control panels, video doorbells, cash registers, self-service kiosks
• Embedded Development and DIY: STM32/Arduino prototype development, teaching experiments, open-source projects

• Stable and Mature: Resistive touch + RGB interface solution with proven industrial market reliability
• Cost-Effective: Competitive pricing compared to capacitive screens of similar size
• Environment Adaptability: Reliable performance in dust, moisture, and oil stain environments with glove operation
• Versatile: 7-inch size with 800×480 resolution suitable for embedded, industrial control, and commercial applications

• Free repair within one year after product shipment
• Replacement within 30 days for product-related issues
• Custom logo printing and model number application available
• Established shipping partnerships with volume discounts
• Professional technical support and responsive after-sales service team
• Comprehensive inspection and testing by engineers and QC/QA before shipment
• 24-hour response guarantee for all customer inquiries and issues
• Customization services available based on customer specifications or drawings
