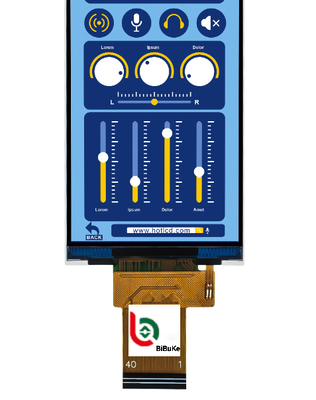

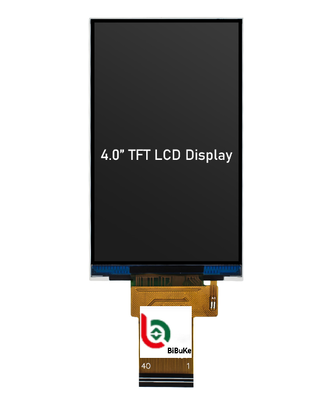

4 inch 480x800 Medical TFT Display RGB Interface LCD Touch Screen
4 inch 480x800 Medical TFT Display RGB Interface LCD Touch Screen
Product Specifications
| Product: |
4"inch TFT LCD Touch Screen |
Touch Screen: |
Resistive Touch Panel (RTP) |
| Resolution: |
480x800 |
Viewing Direction: |
12 O'clock |
| Driver IC: |
ILI9806E |
Pin Number: |
51 Pins |
| Connection: |
Plugging |
Surface Luminance: |
300 Cd/m2 (nits) |
| Interface: |
RGB |
LED Lifetime: |
40,000 Hours |
| Operating Temp.: |
-20℃ To +70℃ |
Compliance: |
REACH & RoHS Compliant |
Product Introduction
This is a 4-inch, 480×800 resolution medical-grade TFT liquid crystal touch screen, featuring a high-speed RGB interface + IPS full-view display, combined with capacitive touch control. It is specifically designed for medical equipment to meet the requirements of high precision, high reliability and a clean environment.
Display Core (Medical-grade TFT/IPS)
- Size: 4 inches (vertical screen, elongated aspect ratio)
- Resolution: 480×800, high pixel density, clear text / curves
- Panel: IPS full viewing angle, ≥ 85° up, down, left, and right, suitable for multi-person consultation viewing
- Color: 16.7M colors (24-bit), accurately reproduces medical images and parameters
- Brightness: 400-600 cd/m², clear visibility in operating room strong light
- Contrast: 800:1-1000:1, good gray level, suitable for waveform / electrocardiogram display
- Backlight: WLED, lifespan ≥ 50,000 hours, low blue light, no flicker
- Surface: Anti-glare + antibacterial coating, easy to clean, resistant to alcohol / iodophor wiping, in line with medical infection control
- Thickness: Approximately 2.0-2.8 mm, ultra-thin and lightweight, suitable for portable devices
Interface and Driver (RGB + Capacitive Touch)
- Interface: 24-bit RGB parallel, high-speed transmission, no ghosting, suitable for dynamic waveforms
- Driver IC: Common ST7701S, NT35510, medical-grade low power consumption, anti-interference
- Touch: Projective capacitive (PCAP), supports multi-touch (such as zooming images)
- Touch IC: GT911/FT6336, fast response, high precision, supports operation with medical gloves
- Operating temperature: -20°C to + 70°C, stable adaptation to low/high temperature disinfection environments
- Protection: ESD anti-static, EMI anti-interference, in line with medical equipment electromagnetic compatibility standards
Main Applications
Medical monitoring equipment: Multi-parameter monitor, electrocardiogram / blood oxygen / blood pressure monitor, displays real-time waveforms, values, and alarm information, IPS wide viewing angle suitable for bedside and nurse station observation
Portable medical instruments: Handheld ultrasound, fundus camera, blood glucose meter, electrocardiogram machine, high resolution clearly presents fine images and data, ultra-thin design is convenient for carrying
Operating room equipment: Anesthesia machine, ventilator, infusion pump, endoscopy system, strong light visibility + antibacterial surface, meets aseptic operation and precise control requirements
Medical terminals and panels: Hospital bed head terminal, medical control panel, self-service registration / inquiry machine, vertical screen ratio suitable for information lists and operation interfaces
Home medical health equipment: Smart health monitor, rehabilitation training equipment, remote medical terminal, low blue light eye protection, suitable for long-term use
Product Drawings
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?
Answer: No problem. Firstly, please kindly send us your specification/ drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: That's all right. We can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
