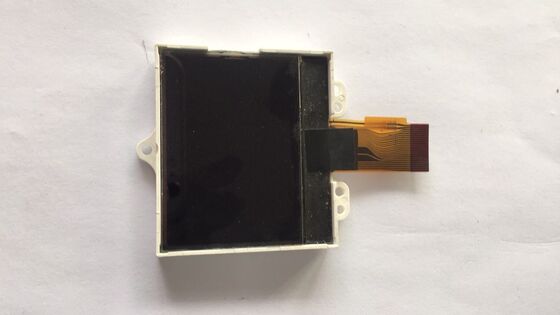

2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution

1000
MOQ
0.7-7USD
Price
2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution
Features Gallery Product Description Chat Now
Features
Specifications
Driver Ic: ST7567
Backlight Type: LED
Resolution: 128x64 Pixels
Fpc Number: 30PIN
Name: 128x64 LCD Display
Connector: COG+FPC
Highlight:

Monochrome LCD Screen 128x64

,

2.15 inch Monochrome LCD Screen

,

128x64 dot matrix lcd display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display
2.15inch Monochrome 128x64 Dot Matrix LCD Display FSTN, Positive
Technical Specifications
Parameter Specification
Product Name Graphic LCD Display
LCD Type FSTN, Positive
Polarizer Type Transmissive
Viewing Angle 6 O'clock
Resolution 128x64 dots
Drive Method 1/64 Duty, 1/9 Bias
Working Voltage 3.0V
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
FPC Connector 30 pins, ZIF type
Pitch 0.5 mm
Connector COG+FPC
Driver IC ST7567
Interface MCU 8-bit Parallel
Backlight Type 3 pcs LEDs, White
Power Consumption VF=3.0V, IF=15*3mA
Outline Dimension 56.4(W) × 37.0(H) × 6.0(T) mm
View Area 53.8(W) × 28.8(H) mm
Active Area 48.61(W) × 24.93(H) mm
Dot Size 0.35(W) × 0.36(H) mm
Product Overview
The 2.15-inch 128x64 dot matrix liquid crystal display is a common monochrome LCD module featuring FSTN (Fringe Stacked Thin Film Transistor) technology with excellent contrast and viewing angle characteristics.
Key Features
  • Resolution: 128 horizontal × 64 vertical pixels for basic text and graphic display
  • Display Type: Monochrome display with black, blue, and white options
  • Panel Technology: FSTN LCD with superior contrast and viewing angles
  • Controller: ST7567 driver IC with MCU 8-bit parallel interface
  • Interface Options: Parallel interfaces (8080/6800) and serial interfaces (SPI, UART)
  • Operating Voltage: 3.0V for low power consumption
  • Compact Design: Cost-effective, stable performance with simple interface requirements
Applications
  • Household Appliances: Control panels for microwave ovens, washing machines, rice cookers
  • Medical Equipment: Patient monitors, blood pressure meters, blood glucose meters
  • Electronic Instruments: Automotive dashboards, industrial instruments, data recorders
  • Handheld Devices: Electronic dictionaries, calculators, GPS units, portable games
  • Smart Devices: Home control panels, smart card readers, POS systems
2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 0 2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 1
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging methods are customized based on product size and customer requirements, complying with international shipping standards.
2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 2
Shipping: Express services including DHL, FedEx, EMS, UPS, air freight, and sea shipping. We accommodate preferred shipping methods.
2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 3
Payment Methods
2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 4
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom branding with your logo and model numbers
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Comprehensive quality control with pre-shipment inspection
  • 24-hour customer response time for all inquiries
  • Custom LCD display solutions based on your specifications
Production Line Capabilities
  • Clean Room: Class 10k @ 0.8um, Pressure 0.8kgf
  • Antistatic Floor: Resistance 1×10 ohm to 1×10 ohm
  • COG Production Lines: 4 lines
  • Backlight Production Lines: 2 lines
  • Monthly Capacity: 1 million units
2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 5 2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 6 2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 7
Quality Assurance: ISO9001 certified with one-year guarantee for non-artificial damage
  • Small LCD display screens
  • Competitive pricing
  • Large production capacity
  • Certifications: ISO, RoHS, REACH compliant
  • Custom dimensions available
  • STN blue small LCD display options

2.15 Inch Monochrome LCD Display with ST7567 Driver IC and 128x64 Dot Matrix Resolution 8
