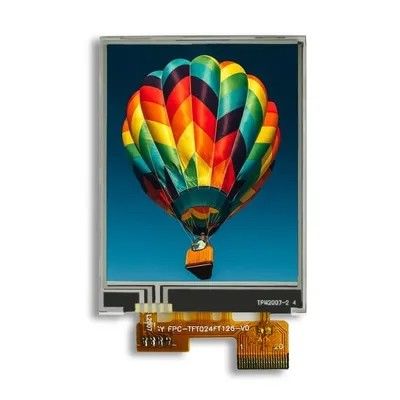

2.4 Inch TFT Touch Screen TN 240x320 ST7789V 20pin SPI With Resistive Touch

2.4 Inch TFT LCD Screen TN 240x320 Pixels ST7789V 20pin SPI with Resistive Touch

Product Description:

• TFT LCD Technology:

  • Active Matrix Display: The TFT (Thin-Film Transistor) technology allows for bright, colorful, and sharp images with relatively good contrast.
  • Color Depth: Typically 16-bit color (65,536 colors), which provides vibrant and clear visuals.
  • LED Backlight: The display uses an LED backlight for better visibility in different lighting conditions.
  •


• Resistive Touchscreen:

  • Resistive technology uses two conductive layers separated by a small gap. When the screen is pressed, the two layers make contact, and the device detects the location of the touch based on the voltage change.
  • Pressure Sensitivity: Unlike capacitive touchscreens, which respond to electrical fields from fingers, resistive screens can be activated with any object that applies pressure, such as a stylus, finger, or even a gloved hand.
  • Lower Sensitivity to Environmental Factors: Resistive touchscreens tend to be more robust in outdoor or industrial environments, as they are less sensitive to external factors like moisture, dust, or electrical interference.

Basic Parameters:

NO.	ITEM	SPECIFICATIONS
1	Product Name	2.4 Inch TFT LCD touch screen
2	LCD Type	TN, Transmissive
3	Viewing Angle	12 O'clock
4	Resolution	240x320 dots
5	Operating Temperature	-20~+70℃
6	Storage Temperature	-30~+80℃
7	FPC Connector	20PIN, ZIF type
8	Driver IC(COG)	ST7789V
9	Interface	SPI
10	Backlight Type	4-LED, White, 80mA
11	Outline Dimension	42.72(H)* 60.26(V)* 3.35(D) mm
12	Active Area	36.72(H)* 48.96(V) mm





---

Products Application field:

Audio product    Medical Equipment

Industrial product(watermeter, electronicmeter,Equipment )

Automobiles  Sports Equipment   Watches

Household appliance(air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)



---

Production Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.

In compliance with ISO9001 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
