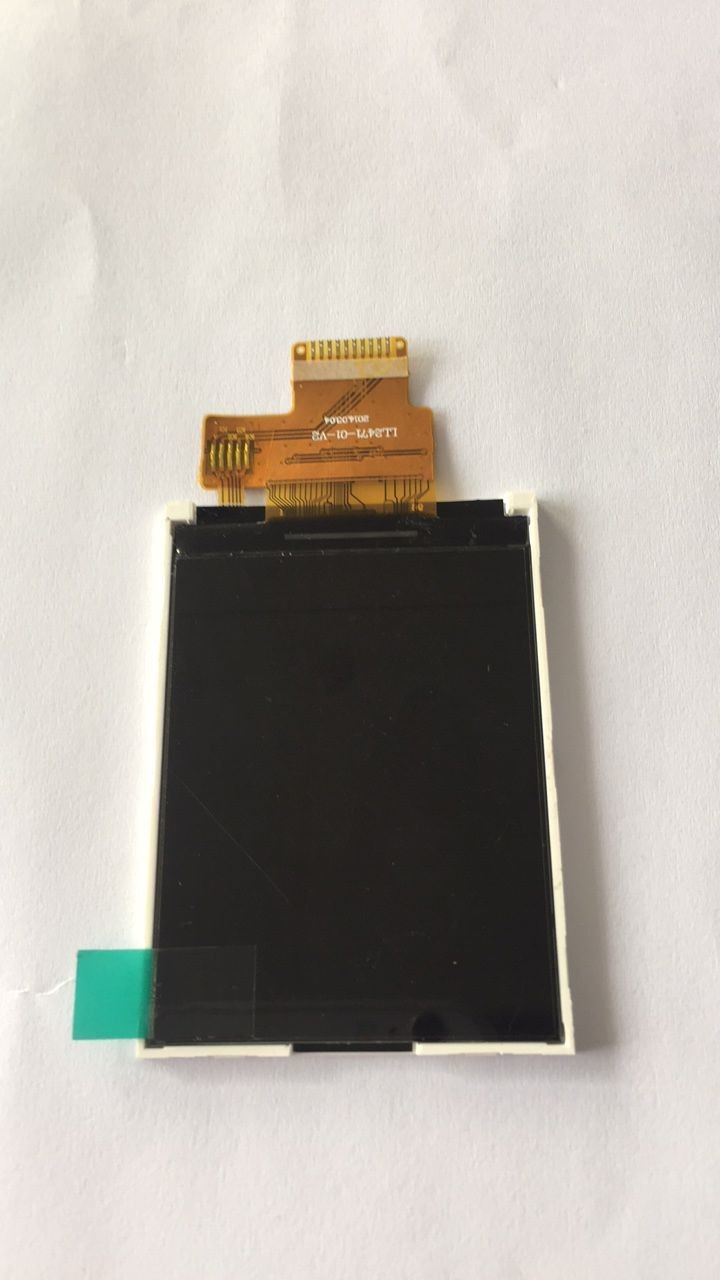

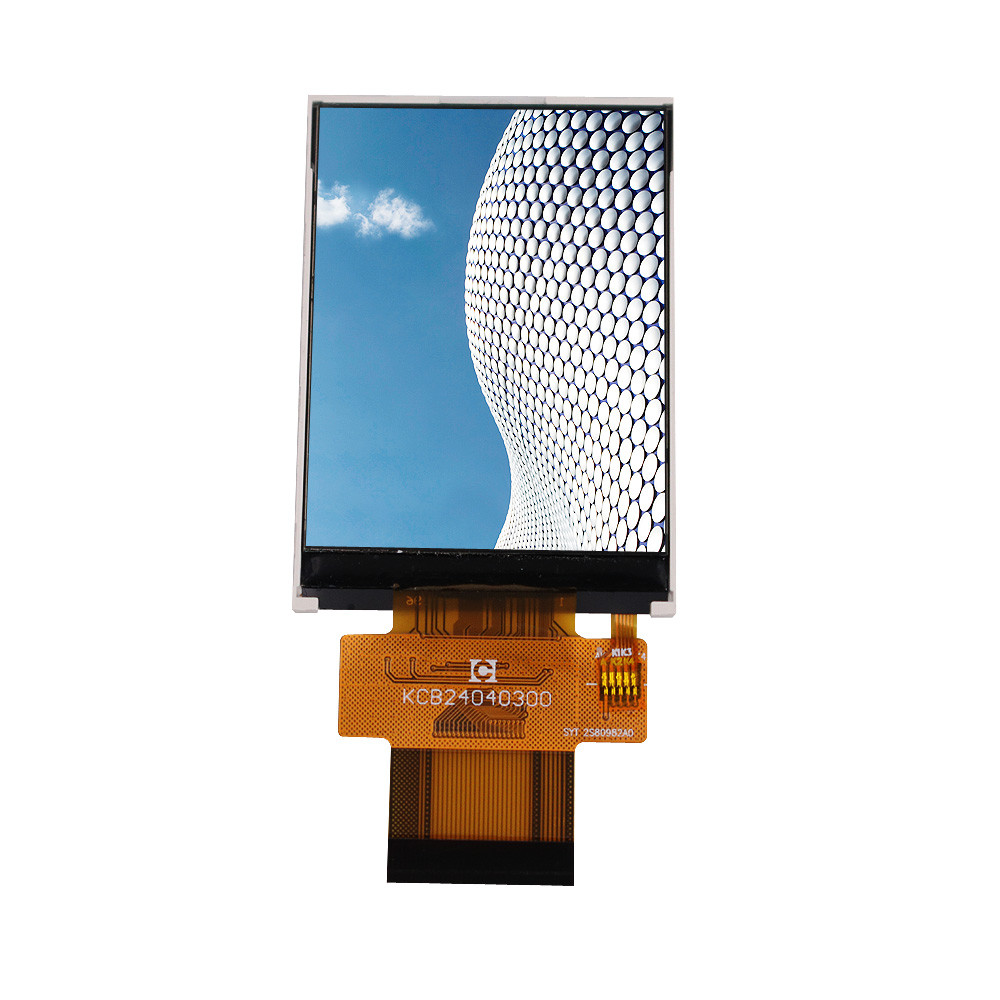

2.4 Inch TFT LCD Touch Screen 350cd/m2 TFT Capacitive Touchscreen
General Specifications:
1.1 Features
|
Item
|
Standard Value
|
|
Size
|
2.4
|
|
Display Format
|
240(RGB) *320
|
|
LCD Type
|
TFT , Transflective , Positive
|
|
Viewing Direction(Gray Inversion)
|
12 O’clock
|
|
polaroid
|
Up: 0.17mm,Down,:0.17mm
|
|
Backlight
|
White LED
|
|
Interface
|
RGB/MCU
|
|
Driver IC
|
Driver IC : ILI9341V
|
1.2 Mechanical Specifications
|
Item
|
Standard Value
|
Unit
|
|
Outline Dimension
|
42.72 (W) * 59.26 (L) * 2.5 (H)+-0.05
|
mm
|
|
Active Area
|
36.72 (W) * 48.96 (L)
|
mm
|
|
Dot Size
|
0.153 (W) * 0.153 (L)
|
mm
|
Note:For detailed information please refer to LCM drawing
1.3 Absolute Maximum Ratings(Ta=25℃ VSS=0V)
|
Item
|
Symbol
|
Min.
|
Type
|
Max.
|
Unit
|
Humidity
|
|
Supply Voltage for
Logic
|
VCI
|
2.8
|
3.2
|
3.4
|
V
|
--
|
|
IOVCC
|
2.8
|
3.2
|
3.4
|
V
|
--
|
|
Power Supply for LCD
|
VGH-VGL
|
-0.3
|
--
|
32
|
V
|
--
|
|
Operating Temperature
|
TOP
|
-20
|
--
|
70
|
°C
|
Note1
|
|
Storage Temperature.
|
TST
|
-30
|
--
|
80
|
°C
|
Note2
|
BIBUKE TFT LCD Module Series:
1. Our standard TFT LCD Module size:
1.44'', 1.77", 2.0", 2.4", 2.8", 3.2", 3.5",
4"(3.97"), 4.3", 5", 7", 8", 9'', 10.1".
2. Developed 4.0''(3.97'') LCD module with IPS glass.
3. Developed 2.4'' to 7.0'' TFT LCD with ZIF FPC connection.
4. Standard CTP for 3.2'', 3.5'', 4.3", 5.0", 7'', 8'', 10.1''.
5. High transmittance RTP for 4.3" and 7".
6. Can make customized CTP.
Packaging & Shipping:
Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,
according to customer request and demand. Different countries have not same requirement..
Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.
Payment Method:
Products Application field:
1.Audio product 2.Medical Equipment 3.Industrial product(watermeter, electronicmeter,Equipment )
4.Automobiles 5. Sports Equipment 6.Watches
7.Household appliance(air condition/wash machine/electronic cooler/
refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)
