10.1 Inch TFT LCD Touch Screen with 1024X600 Resolution and 200 cd/m2 Brightness

1000
MOQ
0.7-7USD
Price
10.1 Inch TFT LCD Touch Screen with 1024X600 Resolution and 200 cd/m2 Brightness
Features Gallery Product Description Chat Now
Features
Specifications
Outline Dimensions: 235x143x5.9mm
Number Of Dots: 1024X600
Connectivity: LVDS
Brightness: 200 Cd/m2
Origin: China
Panel Size: 10.1 Inch(diagonal)
Active Area: 48.60*64.80mm
Display Mode: Transmissive
Highlight:

10.1 Inch TFT LCD Touch Screen

,

1024X600 Resolution LCD Display

,

200 cd/m2 Brightness Touch Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
10.1" LVDS TFT LCD Resistive Touch Screen With Resistive Touch
Key Specifications
Specification Value
Resolution 1024(RGB) × 600
Display Mode Transmissive
Display Type TFT
Interface LVDS
Touch Panel With RTP
Brightness 200cd/m²
Detailed Technical Specifications
Item Contents Unit
LCD Type TFT/Transmissive
Module Size (W×H×T) 235×143×5.9 mm
Active Size (W×H) 222.72×125.28 mm
Number of Dots 1024×600
Interface Type LVDS
Recommend Viewing Direction 12 o'clock
Brightness 200 cd/m²
Touch Panel Type With RTP

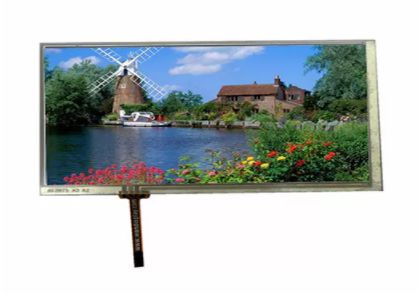

10.1 Inch TFT LCD Touch Screen with 1024X600 Resolution and 200 cd/m2 Brightness 0 10.1 Inch TFT LCD Touch Screen with 1024X600 Resolution and 200 cd/m2 Brightness 1
Component Composition
The product consists of a 10.1-inch TFT LCD display and resistive touch screen. The TFT LCD display includes the liquid crystal panel and backlight, which controls light passage for image display. The resistive touch screen features a surface hard coating, PET layer, outer/inner ITO layers, transparent isolation points, and glass base layer.
Display Technology
Utilizes TFT (Thin Film Transistor) technology with high resolution and excellent color display. The LVDS interface provides high-speed, low-power data transmission with strong anti-interference capability. Resistive touch technology detects precise touch coordinates through electrical signal conversion.
Applications
  • Industrial Control: Ideal for control panels with stable operation in challenging environments
  • Medical Equipment: Clearly displays patient data and supports glove operation
  • Vehicle Navigation: Provides clear map display with precise touch operation
  • POS Systems: Durable solution for retail transaction processing
  • Educational Equipment: Suitable for interactive whiteboards and teaching displays

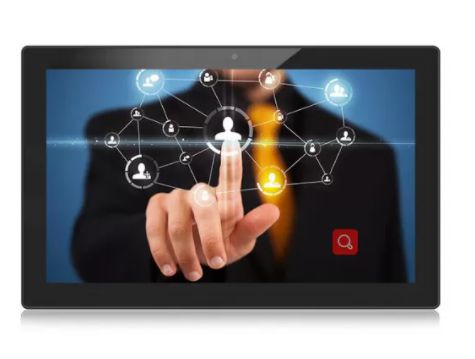

10.1 Inch TFT LCD Touch Screen with 1024X600 Resolution and 200 cd/m2 Brightness 2
