Name: 3.0V Custom LCD Panel , Segmented LCD Display TN Transmissive FPC Connect
Brand: Dongguan Bibuke Electronic Technology Co., Ltd.
SKU: BBI-001
Price: 2.10 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Custom LCD Panel

Lcd Type: TN Positive

Connector: PIN, 16 Numbers

Storage Temperature: Varies Based On Customization

Drive Voltage: 4.0V

Power Supply: Varies Based On Customization

Connection Way: Soldering PIN

Highlight:

3.0V Custom LCD Panel

Segmented LCD Display FPC Connect

Custom Segmented LCD Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Model Number: BBI-001

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

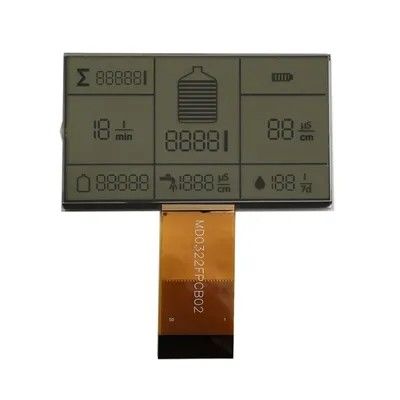

3.0V Custom LCD Panel , Segmented LCD Display TN Transmissive FPC Connect

Product Description

3.0V Custom LCD Panel Black Silk Screen Segmented TN Transmissive FPC Connect

Product Description

Twisted Nematic Technology:

The "Twisted Nematic" part of the name refers to the liquid crystal technology used. In this configuration, the liquid crystals are arranged in a way that, when no voltage is applied, they twist light passing through them.
When a voltage is applied, the crystals untwist and alter the light's polarization, effectively turning the segment on or off to create the desired characters or symbols.

Segment-based Display:

TN segment LCDs typically consist of individual segments (often 7-segment or 14-segment) arranged to form numbers, letters, or other characters.
Each segment can be independently controlled to either be in an "on" (lit) or "off" (unlit) state, allowing for the formation of various alphanumeric characters.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Product Name	Custom LCD Screen
2	LCD Type	TN positive, transmissive
3	Viewing Angle	12 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 3.0V
5	Operating Temperature	0~+50℃
6	Storage Temperature	-10~+60℃
7	Connector	FPC, 50 numbers
8	Outline Dimension	93(W)* 56(H)* 2.8(T) mm
9	LCD View Area	90(W)* 50(H) mm

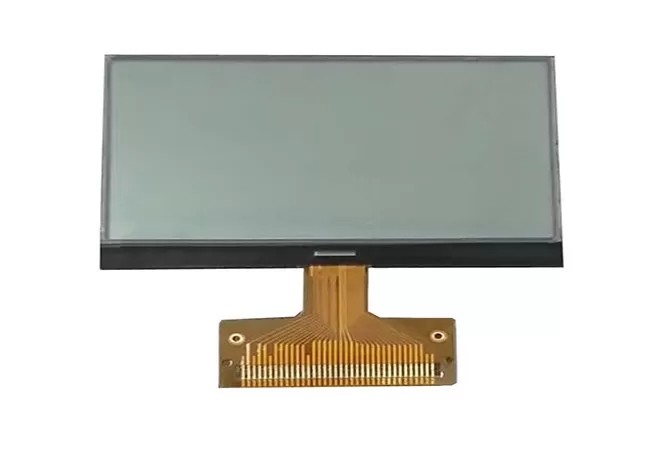

3.0V Custom LCD Panel , Segmented LCD Display TN Transmissive FPC Connect 0

Packaging & Shipping:

Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,

according to customer request and demand. Different countries have not same requirement..

3.0V Custom LCD Panel , Segmented LCD Display TN Transmissive FPC Connect 2

Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.

3.0V Custom LCD Panel , Segmented LCD Display TN Transmissive FPC Connect 3
