Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN

1000
MOQ
0.7-7USD
Price
Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN
Features Gallery Product Description Chat Now
Features
Specifications
Operate Temperature: 0~+50℃
Backlight Type: LED
Drive Method: 1/4 Duty, 1/3 Bias
Dimensions: Customizable
Storage Temperature: -10°C To 60°C
Working Voltage: 4.5V
Application: Industrial/Consumer Electronics
Display Type: Segment
Highlight:

Custom TN LCD segment display

,

Transmissive white backlight LCD

,

4.5V 24PIN segment LCD
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN

Detail Information

LCD Type: TN(Gray), Positive
Viewing Angle: 6 O'clock
Connector: PIN
Voltage: 4.5V
Drive Mode: 1/4 Duty, 1/3 Bias
Operating Temperature: 0~+50℃

Detailed Parameters:

NO.  ITEM  SPECIFICATIONS
1  LCD Type  TN positive, transmissive
2  Viewing Angle  12 O'clock
3  Drive Method  1/4 Duty, 1/3 Bias, 4.5V
4  Operating Temperature  0~+50℃
5  Storage Temperature  -10~+60℃
6  Connector  PIN, 24 numbers
7  Backlight  White
8  Outline Dimension  77.6(W)* 60.0(H)* 2.0(T) mm
9  LCD View Area  70.5(W)* 56.0(H) mm

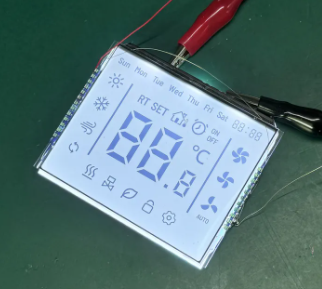

Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN 0

Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN 1


Customized TN LCD Segment LCD Display Transmissive White Backlight 4.5V 24PIN 2

Why TN LCDs Are Chosen for These Products


  • Very Low Power Consumption (great for battery devices)

  • Simple Interface (static or multiplexed)

  • Inexpensive to Produce

  • Fast Response Times (compared to other passive types)

  • Customizable Segment Layouts

Main Product Applications of TN LCDs


  • Digital Watches

  • Calculators

  • Remote Controls

  • Thermometers / Hygrometers

  • Electronic Scales

  • Home Weather Stations

  • Pedometers / Fitness Devices

  • Electronic Toys
