RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC

Product Description

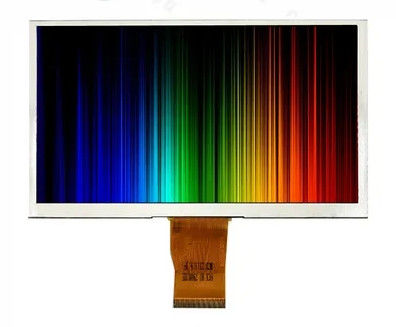

7 Inch TFT Display Panels 1024×600 Dots Matrix 50pin FPC with RGB Interface

Key Features:

1. Resolution:

   • 1024x600 pixels, meaning it has 1024 horizontal pixels and 600 vertical pixels.

   • This resolution improves lower-resolution displays like 800x480, providing sharper images and clearer text.

2. Aspect Ratio: 16:9, making it suitable for media applications such as video playback and games.

3. Pixel Density: The pixel density (PPI – pixels per inch) of a 7-inch display with 1024x600 resolution is around 170 PPI. This is adequate for general applications, but higher-resolution displays may be preferred for extremely fine detail.

4. Display Type: TFT (Thin-Film Transistor): Provides vibrant colors, good contrast, and fast refresh rates. TFT is often more affordable and offers decent image quality for most applications.

5. Backlight: LED backlighting is typically used, which is energy-efficient and provides adequate brightness for indoor use.

6. Viewing Angles: The viewing angle of TFT screens is decent but not as wide as that of IPS (In-Plane Switching) displays. Expect a loss of color accuracy and contrast if viewed from extreme angles.

7. Connectivity: These screens usually come with various connection options, such as RGB (parallel), HDMI, or SPI for interfacing with microcontrollers or SBCs (Single-Board Computers) like the Raspberry Pi or Arduino.
