Home /Products/IPS TFT LCD Display/4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface

4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface

1000
MOQ
0.7-7USD
Price
4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface
Features Gallery Product Description Chat Now
Features
Specifications
Active Area: 95.04(W)×53.856(V) Mm
Led Life: 50000 Hours
Brightness: 250 Nits
Product: 4.3 Inch IPS TFT LCD Display
Logic Voltage: 2.5V-3.3V
Colors: 262K
Aspect Ratio: 16:9
Backlight Leds: 8LEDs
Name: IPS TFT LCD Display
Highlight:

4.3 Inch TFT LCD Panel

,

IPS TFT LCD Panel

,

40 Pin TFT Display RGB Interface
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
4.3 Inch IPS TFT LCD Panel with 6 O'Clock Viewing Angle
High-performance 4.3-inch IPS TFT LCD display featuring 480×272 resolution, ST7282 driver IC, and 40-pin RGB interface for industrial and embedded applications.
Display Technology & Features
This panel utilizes IPS (In-Plane Switching) technology, providing superior 178° viewing angles with consistent color and brightness across all directions.
Parameter Specification
Product Name 4.3 Inch TFT Display
LCD Type IPS, Transmissive
Viewing Angle 6 O'clock
Display Mode Normally Black
Resolution 480×272 dots
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
FPC Connector 40PIN, socket type
FPC Pitch 0.5mm
Driver IC (COG) ST7282
Interface Parallel RGB 24-Bit
Backlight Type 7-LED, White, parallel
Luminance 300 cd/m²
Outline Dimension 105.5(W) × 67.2(H) × 3.0(D) mm
Active Area 95.04(W) × 53.86(H) mm
Technical Specifications
Screen Size: 4.3-inch diagonal
Display Area: 95.04 × 53.86 mm
Resolution: 480×272 (WQVGA), 118 PPI
Color Support: 16.7M colors (24-bit RGB)
Brightness Range: 270-530 cd/m²
Core Advantages
Full viewing angle with consistent color representation
High compatibility with 40-pin RGB interface
Industrial-grade temperature tolerance
Cost-effective solution for embedded displays
Low power consumption for extended operation
Application Areas
Industrial control panels and instruments
Vehicle auxiliary displays and monitoring systems
Medical portable equipment and diagnostic devices
Smart home and IoT terminal interfaces
POS systems and handheld devices

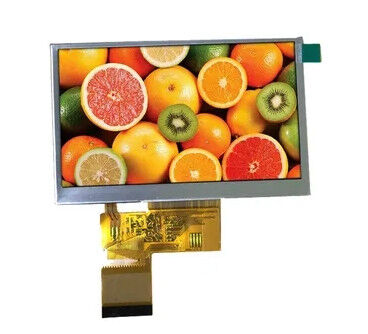

Product Images
4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface 0 4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface 1
Packaging & Shipping
Packaging options include carton boxes, cupboard, EPE, and blister tray. Custom packaging available based on product size and customer requirements.
4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface 2
Shipping methods: DHL, FedEx, EMS, UPS, air shipping, and sea shipping available.
4.3 Inch IPS TFT LCD Display with 480x272 Resolution and 40 Pin RGB Interface 3
Product Video
