7 Inch IPS TFT LCD Display with 480×234 Dots Resolution and 26pin FPC Interface

1000
MOQ
0.7-7USD
Price
7 Inch IPS TFT LCD Display with 480×234 Dots Resolution and 26pin FPC Interface
Features Gallery Product Description Chat Now
Features
Specifications
Touchscreen: No
Display Area: 68.04(H)x120.96(V)mm
Power Consumption: 30W
Input Voltage: 2.8~3.3V
Interface Type: RGB
Fpc: 26pin
Lcd Type: A-Si TFT Active Matrix
Display Colors: 16.7M
Name: IPS TFT LCD Display
Highlight:

7 Inch IPS TFT LCD Display

,

7 Inch TFT LCD Display 26pin

,

IPS TFT LCD Display 480×234
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC
High-quality 7-inch IPS TFT LCD display with 480×234 resolution and 26-pin FPC interface, designed for industrial and embedded applications.
Key Specifications
  • Screen Size: 7 inches (diagonal)
  • Resolution: 480 × 234 pixels for clear image quality
  • Aspect Ratio: 16:9 widescreen format
  • Technology: TFT with LED backlighting for superior color reproduction and contrast
  • Interface: RGB parallel or LVDS interface compatible with embedded systems and microcontrollers
Core Applications
  • Industrial Control & HMI: PLC control panels, CNC equipment, intelligent instruments with wide viewing angles
  • Vehicle & Transportation: Truck instrument panels, vehicle information terminals, POS systems
  • Medical Equipment: Portable monitoring devices, blood glucose meters, blood oxygen monitors
  • Consumer Electronics: Smart home control panels, Bluetooth speaker displays, barcode scanners
  • Custom Solutions: IoT edge nodes, security systems, educational equipment
Technical Specifications
Item Specifications
Product Name 7.0 Inch TFT Display
Display Mode Normally White
Viewing Angle 6 O'clock
Pixel Arrangement RGB Vertical Stripe
Resolution 480 RGB(H) × 234(V) Pixels
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
FPC Connector 26PIN, Socket Type
FPC Pitch 0.5 mm
Backlight Consumption 10.8V, 100mA
Luminance 200 cd/m²
Outline Dimension 162.6(H) × 96.6(V) mm
Active Area 154.08(H) × 86.58(V) mm

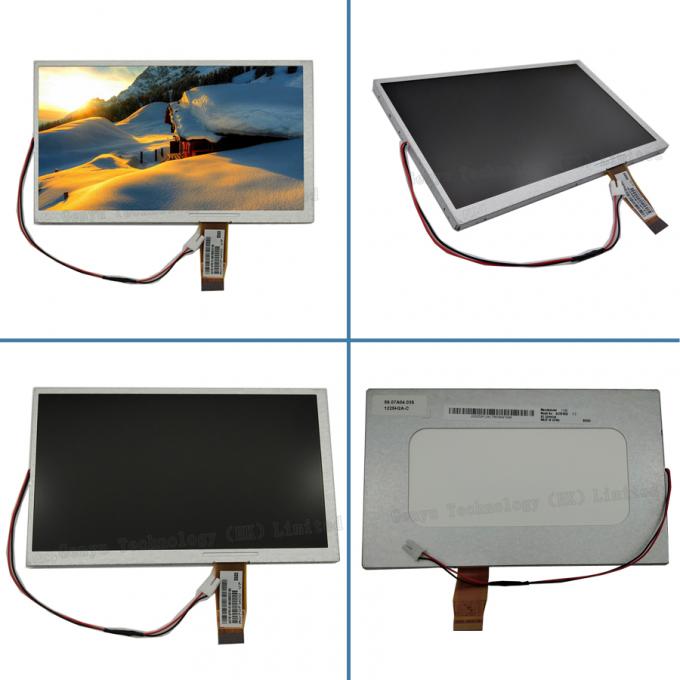

7 Inch TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo printing and model number application
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Comprehensive quality inspection before shipment
  • 24-hour response time for customer inquiries
  • Custom display solutions based on your specifications
Application Fields
Audio Products
Medical Equipment
Industrial Products
Automotive Systems
Sports Equipment
Watches & Timepieces
Household Appliances

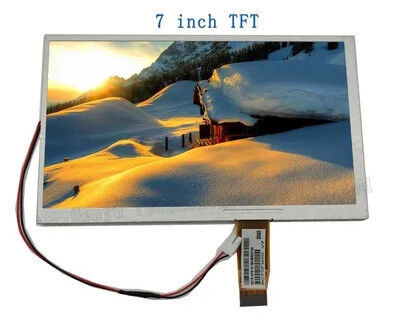

7 Inch IPS TFT LCD Display with 480×234 Dots Resolution and 26pin FPC Interface 1
