DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices

1000
MOQ
0.7-7USD
Price
DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices
Features Gallery Product Description Chat Now
Features
Specifications
Name: 2.4 Inch LCD Display
Display Type: LCD
Operating Temperature: -20°C To 70°C
Interface: SPI Interface
Storage Temperature: -30°C To 80°C
Display Size: 128x64
Voltage: 3.0V
Highlight:

DFSTN 2.4 Inch LCD Display

,

2.4 Inch LCD Display 128x64

,

128x64 COG LCD Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
DFSTN 2.4 Inch LCD Display 18pin FPC SPI 128x64 COG Module
This 2.4-inch DFSTN LCD display features an 18-pin FPC SPI interface with 128x64 resolution COG technology, specifically designed for handheld devices and industrial applications.
Technical Specifications
Parameter Specification
Module Size 63.00(W) × 42.50(H) × 5.0(D) mm
Viewing Area 59.00(W) × 32.00(H) mm
  • Display Mode: DFTN / Negative / Transmissive
  • Display Dot Matrix: 128×64 dot
  • Viewing Direction: 6 O'Clock
  • Interface: SPI interface available
  • Display Drive IC: ST7565P
  • Power Supply: 3.0V
  • Driving Scheme: 1/64 Duty, 1/7 Bias
  • Operating Temperature: -20℃ to +70℃
  • Storage Temperature: -30℃ to +80℃
  • LCD Connector: COG + FPC
  • Backlight: 1 white LED, If=15mA; Vf=3.0V
Product Overview
This common LCD display component utilizes DFSTN (Double-layer Super-Twisted Nematic) technology for excellent contrast and wide viewing angles. The COG (Chip on Glass) process ensures compact dimensions and enhanced reliability.
Key Features
  • 2.4-inch diagonal screen size
  • 128×64 dot matrix resolution for clear graphics and text
  • 18-pin FPC interface with SPI communication
  • Low power consumption at 3.3V operating voltage
  • Wide operating temperature range: -20℃ to 70℃
Applications
  • Instrumentation: Multimeters, oscilloscopes, thermometers
  • Industrial Control: Equipment status monitoring and parameter display
  • Handheld Devices: Terminals, walkie-talkies, medical devices
  • Smart Home: Appliance control panels and status displays

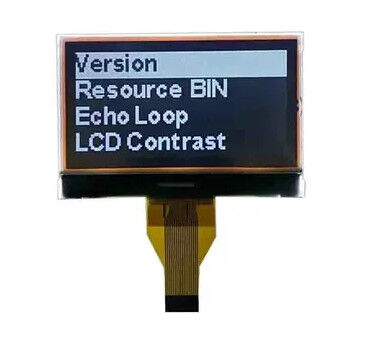

DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 0 DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 1
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Custom packaging available based on product size and customer requirements.
DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 2
Shipping: Express services including DHL, FedEx, EMS, UPS, air shipping, and sea shipping. Multiple shipping methods available.
DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 3
Payment Methods
DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 4
Frequently Asked Questions
I want an LCD display with 8 digits and outline size of 65x30x2.8mm. Is this possible?
Yes, please provide your specifications or drawing. If unavailable, send samples and we'll recommend suitable options or customize to your requirements.
This LCD is perfect but too large. Do you have smaller sizes with modified display content?
For segment type LCD modules requiring size or content modifications, we create new LCD glass modules with custom tooling.
This display is HTN type, but I need STN type. Can you produce this?
Yes, we can modify the display type according to your specifications.
Can you customize a new LCD module?
Absolutely. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer, connector mode, and operating conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing provided upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available.
What is the production lead time?
Standard products: 1 day after payment. Custom production: 15-30 days. We'll notify you if we can complete earlier.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo printing and model number application
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Comprehensive quality control and testing before shipment
  • 24-hour response time for all inquiries and support requests
  • Full customization services for all LCD display types
DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 5 DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 6
DFSTN 2.4 Inch 128x64 Dot Matrix LCD Display with SPI Interface COG LCD Module for Handheld Devices 7
