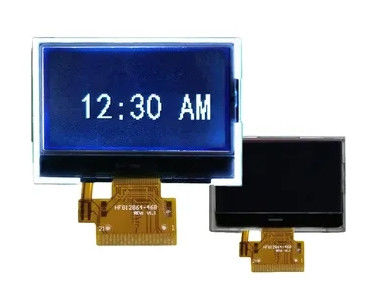

1.7 Inch 128 * 64 LCD Display FFSTN Negative 1.8V 21 PIN LCD Display Parallel Interface

1000
MOQ
0.1-5USD
Price
1.7 Inch 128 * 64 LCD Display FFSTN Negative 1.8V 21 PIN LCD Display Parallel Interface
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 3.0V
Dot Matrix: 128*64 Dots
Viewing Angle: 160 Degrees
Fpc Number: 30PIN
Contrast Ratio: 1000:1
Brightness: 300 Cd/m2
Response Time: 1ms
Power Supply: 3.3V
Name: 128x64 LCD Display
Highlight:

1.7 Inch 128 * 64 LCD Display

,

1.8V 21 PIN LCD Display

,

21 PIN LCD Display 12864
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001,RoHS,CE,REACH,SGS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T D/P Paypal
Supply Ability: 5000000/months
Product Description

Product Description



1.7 Inch 128 * 64 LCD Display FFSTN Negative 1.8V 21PIN Parallel Interface



FFSTN (Film-Film Super Twisted Nematic):



  • FFSTN is an advanced form of STN (Super Twisted Nematic) LCD technology, where two layers of film (instead of one) are used in the liquid crystal structure. This design enhances contrast, viewing angles, and image clarity compared to standard STN.

  • FFSTN displays typically offer:

    • Better Contrast: Higher contrast ratios, make the display easier to read in various lighting conditions.

    • Improved Viewing Angles: FFSTN displays allow you to view the screen from more angles with less distortion compared to standard STN displays.

    • Color Options: The display itself is typically monochrome (black on a light background or vice versa), but the backlighting can be different colors (e.g., white, blue, or green), enhancing visibility in low-light conditions.







Detailed Parameters:



1 Product Description COG Graphic LCD Display
2 Model Brand Bibuke
3 LCD Type FFTN(Black), Negative
4 Polarizer Type Transmissive
5 Viewing Angle 12 O'clock
6 Resolution
128x64 dots
7 Drive Method 1/65 Duty, 1/9 Bias
8 Working Voltage 1.8V
9 Operating Temperature -20~+70℃
10 Storage Temperature -30~+80℃
11 FPC Connector 21PIN, soldering type
12 FPC Pitch 0.8mm
13 Connector COG+FPC
14 Driver IC ST7567A
15 Interface 8-bit parallel
16 Backlight Type 2-LEDs, White
17 Power Consumption VF=1.8V, IF=30mA
18 Outline Dimension 45.00(W)* 31.60(H)* 3.00(T) mm
19 View Area 40.00(W)* 22.00(H) mm
20 Active Area 38.00(W)* 22.380(H) mm
21 Dot Size 0.282(W)* 20.98(H) mm
22 Dot Pitch 0.432(W)* 0.463(H) mm



Tag:

12864 LCD Screen

12864 LCD Display

128 * 64 LCD Display
