Features

Specifications

Name: Graphic LCD Display

Lcd Type: FSTN(Gray), Positive

Display Size: 128x64 Pixels

Vdd: 3.0V

Brightness: 300 Cd/m2

Interface Type: SPI/I2C

Weight: 50g

Operating Temperature: -20°C To 70°C

Interface: 8-bit Parallel, SPI

Highlight:

2.9 Inch 128x64 LCD Display

12864 LCD Screen

18 Pin LCD Display SPI Interface

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

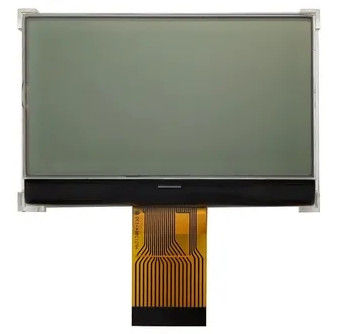

2.9 Inch 128x64 LCD Display FSTN Black White Transflective 18 Pin LCD Display SPI Interface

Product Description

Product Description

2.9 Inch 128x64 Graphic LCD Display FSTN Black White Transflective 18PIN SPI Interface

A 128x64 LCD refers to an LCD screen with a resolution of 128 pixels in width and 64 pixels in height.

This type of display is commonly used in embedded systems, portable electronics, and other applications where a compact graphical or text-based display is required.

These displays are usually monochrome (black and white) but can sometimes have colored backlighting (such as blue or green) to enhance visibility.

Considerations:

Power Consumption: LCDs consume less power compared to OLEDs or TFT displays, making them ideal for battery-powered devices.
Visibility: Although monochrome, the readability of the display depends heavily on the contrast, backlight intensity, and viewing angle.
Limitations: Limited resolution means you can only display a small amount of information at a time, so graphical interfaces need to be simple and clear.

Detailed Parameters:

1	Product Name	COG Graphic LCD Display
2	Model Brand	Bibuke
3	LCD Type	FSTN(Black-white), Positive
4	Polarizer Type	Transflective
5	Viewing Angle	12 O'clock
6	Resolution	128x64 dots
7	Drive Method	1/65 Duty, 1/9 Bias
8	Working Voltage	3.0V
9	Operating Temperature	-20~+70℃
10	Storage Temperature	-20~+70℃
11	FPC Connector	18PIN, socket type
12	FPC Pitch	1.0 mm
13	Connector	COG+FPC
14	Driver IC	ST7565R-G
15	Interface	SPI
16	Backlight Type	4-LEDs, White
17	Luminance	>100 cd/m2
18	Power Consumption	VF=3.2V, IF=60mA
19	Outline Dimension	77.4(W)* 52.4(H)* 6.5(T) mm
20	View Area	70(W)* 43(H) mm
21	Active Area	66.52(W)* 33.24(H) mm
22	Dot Size	0.48(W)* 0.48(H) mm
23	Dot Pitch	0.52(W)* 0.52(H) mm
