ST7565R Custom Segment LCD Display 3.0V 5V 132*64 DOTS Custom Shape LCD Screen

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Custom Segment LCD Display

Working Voltage: 3.0V

Display Resolution: Customizable

Backlight: White LEDs

Power Supply: 3.3V Or 5V

Display Type: Segment

Drive Method: 1/6 Duty, 1/3 Bias

Viewing Angle: Customizable

Voltage: 5.0V

Highlight:

ST7565R Custom Segment LCD Display

Custom Segment LCD Display 3.0V

Custom LCD Segment Display 5V

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Document: SMMC13264-AH-00-SPI-SC-B 12...wo.pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

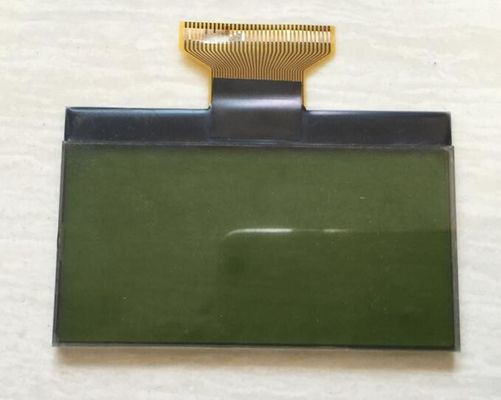

ST7565R Custom Segment LCD Display 3.0V 5V 132*64 DOTS Custom Shape LCD Screen

Product Description

Custom Segment 3.0V 132*64DOTS FSTN, POSITIVE ,TRANSFLECTIVE

General Specification:

Display Format

132*64DOTS

Power Supply

3.0V

Display Type

FSTN, POSITIVE ,TRANSFLECTIVE

Viewing Direction

6.00 O’clock

LCD Driving Method

1/65 Duty, 1/9 Bias, 9.2V

Driver IC

ST7565R

Input Data

Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface

/ Serial 4-Line SPI Interface

Module Size(W*H*T)

73.4*37.8/44.8 *2.85(MAX)mm

Viewing Area (W*H)

67.50*34.40mm

Active Area (W*H)

58.04*30.68mm

Dot Size (W*H)

0.40*0.44 mm

Dot Pitch (W*H)

0.44*0.48 mm

ABSOLUTE MAXIMUM RATINGS

Item

Symbol

MIN

Max

Unit

Supply Voltage

VDD

-0.3

3.6

VLCD

-0.3

13.5

Operating temperature

Topr

-20

℃

Storage temperature

Tstr

-30

℃

ST7565R Custom Segment LCD Display 3.0V 5V 132*64 DOTS Custom Shape LCD Screen 0

Products Application field:

Audio product Medical Equipment Industrial product(watermeter, electronicmeter,Equipment )

Automobiles Sports Equipment Watches Household appliance(air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)
