Features

Specifications

LED Backlight: White, 2PCS

Resolution: 128x64

Controller: ST7033

Storage Temperature: -30℃ To 80℃

Response Time: 5 Ms

Viewing Angle: 6 O'clock

Highlight:

COG LCD segment display

FPC VA LCD display

SPI interface LCD display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

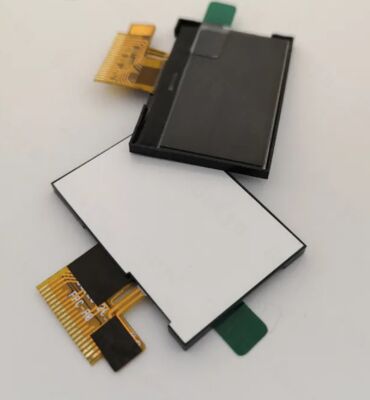

COG LCD Display with SPI Interface, 128x64 Resolution, and 6 O'clock Viewing Angle for Industrial Applications

Product Description

COG FPC VA LCD Segment Display White On Black SPI Interface

Technical Specifications

Parameter	Specification
LCD Type	VA, Negative
Viewing Angle	6 O'clock
Operating Temperature	-20°C to +70°C
Voltage	3.3V
Connector	COG + FPC
Driver IC	ST7033

Detailed Parameters

Module Size	35.9(W) × 24.4(H) × 2.5(T) mm	Display Mode	VA, Negative
LCD Viewing Area	31.5(W) × 16.0(H) mm	Driver IC	ST7033
Operating Temperature	-20°C to +70°C	LED Backlight	White, 2PCS
Drive Method	1/4 Duty, 1/2 Bias	Working Voltage	3.3V
Viewing Angle	6 O'clock	Connection Method	COG + FPC

Product Overview

The COG FPC VA LCD segment display with white on black SPI interface is a highly integrated, low-power consumption display module designed for industrial and commercial applications.

Key Technologies

COG Technology: Chip-on-Glass integration for compact size, enhanced stability, and superior display quality
FPC Connection: Flexible printed circuit for versatile installation in various environments
VA LCD Display: Vertical alignment technology delivering high contrast and wide viewing angles
Black & White Display: Optimized for clarity and contrast with low power consumption
SPI Interface: High-speed serial communication for easy integration with microcontrollers

Customization Options

Segment Layout: Custom numeric, alphanumeric, or icon-based displays
Backlighting: LED integration for enhanced visibility in low-light conditions
Display Size & Resolution: Available in various sizes from wearables to industrial equipment
Temperature Range: Customizable for extreme environmental conditions
Interface Options: SPI, I²C, or parallel interfaces for flexible system integration

Applications

Industrial Control: Temperature controllers, pressure meters, and equipment panels
Medical Equipment: Blood glucose meters, blood pressure monitors, and diagnostic devices
Portable Instruments: Handheld terminals, data collectors, and field measurement tools
Consumer Electronics: Smart home devices, electronic toys, and interactive interfaces

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?

Yes, we can accommodate your requirements. Please provide your specifications or drawings. If you don't have specifications, we can recommend suitable options based on your samples or customize to your specific requirements.

This LCD is what we want, but the size is too large. Do you have smaller sizes? We also need minor display content modifications.

For segment type LCD modules requiring size or content modifications, we will create a new LCD glass module with custom tooling.

This LCD display is HTN type, but I want STN type. Can you produce this?

Yes, we can modify the display type according to your specifications.

I want to customize a new LCD module. Can you do this?

Absolutely. Please provide your drawing or specifications including outline size, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.

What is the lead time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment. We will provide exact timelines upon drawing approval.

Can you send samples for evaluation?

Yes, sample orders are available for testing and verification.

What is the lead time for production?

For standard products in stock: 1 day after payment. For mass production of custom orders: 15-30 days. We will notify you if we can complete earlier.

Packaging & Shipping

Packaging

Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements, with consideration for international shipping regulations.

Shipping

Express services including DHL, FedEx, EMS, UPS, plus air and sea shipping options. We accommodate your preferred shipping method.

Payment Methods

Our Services

Free repair within one year after product shipment
Replacement within 30 days for product-related issues
Custom logo printing and model number application
Competitive shipping rates through established logistics partnerships
Professional technical support and responsive after-sales service
Comprehensive quality control with engineer testing before shipment
24-hour response time for customer inquiries and support
Full customization capabilities for all types of LCD displays
