Features

Specifications

Resolution: Customized

Drive: ST7789V

Voltage: 3.0V

Interface Type: SPI

Storage Temperature: - 10°C To + 60°C

Brightness: 300 Cd/m²

Highlight:

TN transflective LCD display module

custom small LCD positive display

small LCD module with warranty

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

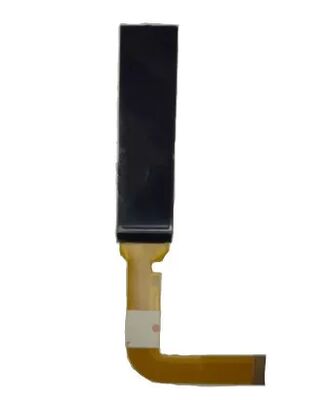

TN Transflective Custom Small LCD Display Module with 3.0V Voltage and SPI Interface

Product Description

TN Tranflective Custom Small LCD Positive Display Module

This TN transflective custom small LCD positive display module utilizes reflective twisted nematic liquid crystal technology to deliver clear, energy-efficient display performance. The module offers customizable dimensions, display content, and interface types to meet specific application requirements.

Key Specifications

Parameter	Specification
Display Type	Custom LCD Display
Backlight	White LED
Operating Voltage	3.0V
Connector	FPC
Driving Method	1/4 Duty, 1/3 Bias
Polarizer Type	Transmissive, Transflective

Detailed Technical Parameters

Item	Parameter	Value
1	LCD Type	TN LCD Display
2	Outline Size	55mm (L) × 14.6mm (W) × 1.1mm (T)
3	Viewing Area	50mm (L) × 10mm (W)
4	Viewing Direction	6 O'clock
5	Voltage	3.0V
6	Display Mode	Positive or Negative
7	Polarizer Mode	Transmissive
8	Operating Temperature	0°C to +50°C
9	Storage Temperature	-10°C to +60°C
10	LED Connection	Metal Pin

Product Technology Overview

The TN reflective custom small LCD positive display module employs reflective twisted nematic liquid crystal material for image display. When no electrical signal is applied, the liquid crystal molecules distort light, reflecting ambient light to display white. When an appropriate electrical signal is applied, the liquid crystal molecular arrangement changes, altering light transmittance to display black in corresponding areas, thereby presenting various patterns and characters.

Key Features

Fully customizable dimensions, display content, and interface types
Gray background with black characters for high contrast and clear display
No backlight panel required - operates using ambient light reflection
Exceptionally low power consumption
Cost-effective solution for various applications

Application Areas

This display module is widely used across multiple industries due to its low cost and minimal power requirements:

Portable Medical Devices: Electronic thermometers, blood glucose meters, and other handheld medical instruments
Consumer Electronics: Handheld calculators, simple game consoles, and portable devices
Home Appliances: Control panels for microwave ovens, air conditioners, refrigerators
Industrial Equipment: Display components for small instruments, controllers, and monitoring devices
DIY Electronics & Embedded Systems: Information display for electronic projects and development boards

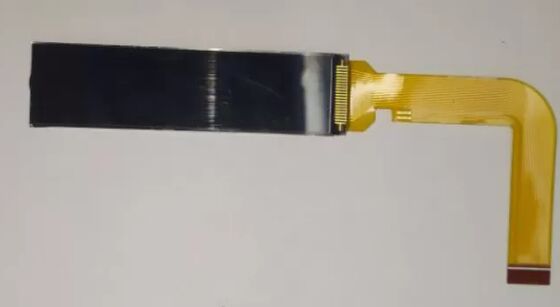

Product Visuals
