7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module

1000
MOQ
DISCUSSABLE
Price
7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module
Features Gallery Product Description Chat Now
Features
Specifications
Working Supply: 3.3v
Interface Type: PIN, 36 Numbers
Backligaht: Blue Backlight
Viewing Angle: 12 O'clock
Storage Temperature: -10~+60℃
Display Mode: Negative
Drive Mode: 1/4 Duty, 1/3 Bias
Control Ic: HT1621
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module

Detail Information

LCD Type: TN, Positive
Viewing Angle: 12 O'clock
Operating Temperature: 0~+50℃
Voltage: 3.3V
Backlight: Blue
Connector: PIN

Detailed Parameters:

Module Size 66(W)* 56(H)* 10.2(T) mm Display mode TN, positive
LCD viewing area 45(W)* 35(H) mm Polarizer type Transmissive
Driver IC HT1621 LED backlight Blue, 3 pcs
Drive method 1/4 Duty, 1/3 Bias Working voltage 3.3V
Viewing angle 12 O'clock Connection Way PIN, 36 numbers
Operate temperature 0℃~+50℃ Storage temperature -10~+60℃

Display Types:

  • TN displays are often used for monochrome or RGB (color) displays, depending on the application.
  • They are typically seen in segment-based displays (e.g., digital clocks, simple readouts) as well as full-screen displays like computer monitors, TV screens, and smartphone

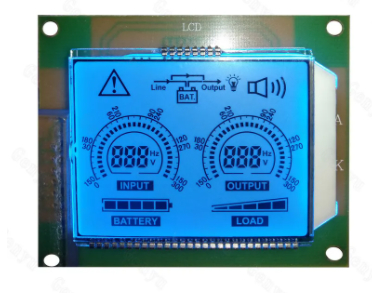

7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module 0

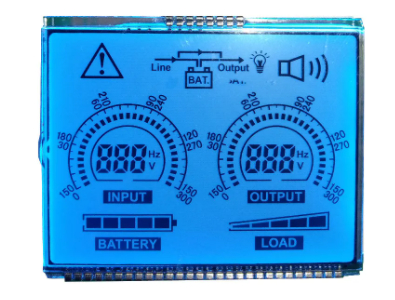

7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module 1


7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module 2

Production Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.

7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module 3

***In compliance with ISO9001 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
