Customized LCD Display HTN Negative 7 Segment LCD Display For Audio

1000
MOQ
DISCUSSABLE
Price
Customized LCD Display HTN Negative 7 Segment LCD Display For Audio
Features Gallery Product Description Chat Now
Features
Specifications
Operate Temperature: 0~+50℃
Display Type: Custom Segment LCD Display
Connection Way: PIN, 13 Numbers
Working Voltage: 3.3V
Viewing Angle: 12 O'clock
Backlight Color: Customizable
Application: Industrial/Consumer Electronics
Drive Method: 1/6 Duty, 1/3 Bias
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

Customized LCD Display HTN Negative 7 Segment LCD Display For Audio

Detail Information

LCD Type: HTN, Negative
Viewing Angle: 12 O'clock
Operating Temperature: 0~+50℃
Connector: PIN
Voltage: 3.3V
Backlight: White

Detailed Parameters:

 1  LCD Type  HTN Negative, Transmissive
 2  Viewing Angle  12 O'clock
 3  Drive Method  1/6 Duty, 1/3 Bias, 3.3V
 4  Operating Temperature  0~+50℃
 5  Storage Temperature  -10~+60℃
 6  Connector  PIN, 13 numbers
 7  Backlight  LED, White
 8  LCD Outline Dimension  40.0(W)* 27.0(H)* 2.8(T) mm
 9  View Area  37.6(W)* 22.6(H) mm

HTN (High-Temperature Nematic)


  • Display Technology: HTN is a variant of the TN (Twisted Nematic) LCD technology designed to operate at higher temperatures than regular TN displays.
  • Thermal Stability: The key feature of HTN is its ability to operate in environments with high temperatures, typically ranging from -20°C to +70°C. This makes HTN more robust in extreme conditions than standard TN and STN displays.



  • Performance:
    • Display Characteristics: HTN displays typically have poorer contrast and viewing angles compared to STN displays, but they are suitable for industrial environments.
    • Faster Response Times: HTN displays can have faster response times compared to STN, which might be advantageous in some industrial or automotive applications.
    • Durability: The increased temperature tolerance makes HTN displays ideal for applications in harsh environments, such as automobiles, industrial equipment, and outdoor displays.



  • Applications: HTN displays are commonly found in automotive dashboards, industrial instruments, thermometers, and other devices that need to function reliably in high-temperature settings.

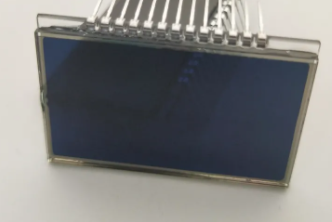

Customized LCD Display HTN Negative 7 Segment LCD Display For Audio 0

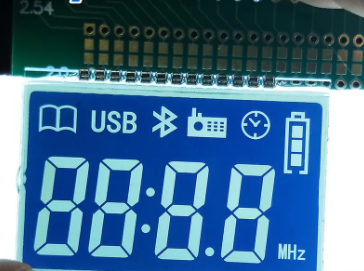

Customized LCD Display HTN Negative 7 Segment LCD Display For Audio 1

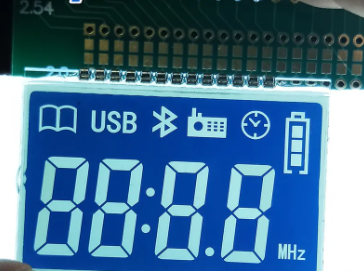

Customized LCD Display HTN Negative 7 Segment LCD Display For Audio 2

CHARACTER / GRAPHIC TYPE LCD MODULES LIST:

Model

Content
 (W X H)

Module size
W x H(mm)

View area
W x H(mm)

Dot size
W x H(mm)

Dot pitch
W x H(mm)

Driving Method

Controller LSI or Equiv

IC
Package

STN-TYPE

FSTN-TYPE

8D -C2004A

20X4

98.0X60.0

76.0X25.2

0.55X0.55

2.95X4.75

1/16

S6A0069

COB

Y

Y

8D -C2004B

20X4

77.0X47.0

60.0X22.0

0.42X0.46

2.3X4.03

1/16

S6A0070

COB

Y

Y

8D -C2004C

20X4

146.0X62.5

123.5X43.0

0.92X1.1

4.84X9.22

1/16

S6A0069

COB

Y

Y

8D -C2402A

24X2

118.0X36.0

93.5X16.0

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2402B

24X2

208.0X40.0

178.0X23.0

1.16X1.16

6.0X9.63

1/16

S6A0069

COB

Y

Y

8D -C4001A

40X1

182.0X33.5

154.4X16.5

0.6X0.75

3.2X6.35

1/16

S6A0069

COB

Y

Y

8D -C4002B

40X2

182.0X33.5

154.4X16.5

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D C4004A

40X4

190.0X54.0

147.0X29.5

0.5X0.55

2.78X4.89

1/16

S6A0069

COB

Y

Y

8D -G12232A

122X32

84.0X44.0

60.0X18.5

0.4X0.4

0.44X0.44

1/32

SED1520

COB

Y

Y

8D -G12232B

122X32

80.0X36.0

55.0X18.5

0.36X0.41

0.4X0.45

1/32

SED1520

COB

Y

Y

8D -G12232C

122X32

98.0X60.0

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12232D

122X32

80.2X47.4

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12864A

128X64

78.0X70.0

62.0X44.0

0.39X0.55

0.44X0.6

1/64

S6B0108A

COB

Y

Y

8D -G12864B

128X64

105.0X60.5

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864C

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864D

128X64

113.0X65.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864E

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

ST7920

COB

Y

Y

8D -G19264A

192X64

130X65.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G19264B

192X64

120X62.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G24064B

240X64

180.0X65.0

132.0X39.0

0.53X0.53

0.49X0.49

1/64

T6963C

QFP/COB

Y

Y

8D -G240128A

240X128

144X104

114X64

0.4X0.4

0.45X045

1/128

T6963C

QFP/COB

Y

Y
