Features

Specifications

Pin: 14

Number Of Dots: 240（RGB）X 320

Product Type: Tft Lcd

Operation Temperature: -30℃ To +85℃

Outline Dimension: 42.72x60.26x3.05mm

Operating Temp: -20~70℃

Angle Of View: IPS All View Angle

Specification: ISO9001, ROHS

Highlight:

300 Nit Brightness IPS TFT LCD Display

800:1 Contrast Ratio TFT LCD Screen

-20~70℃ Operating Temperature LCD Display Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

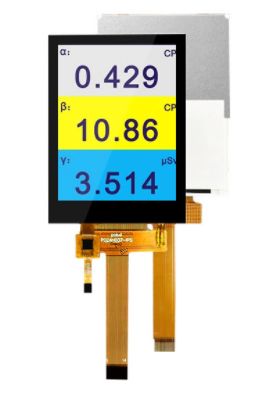

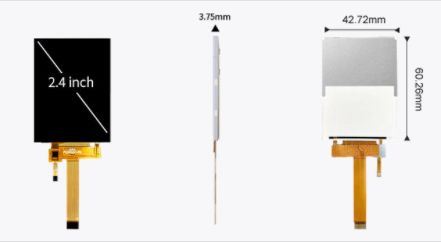

2.4 Inch IPS TFT LCD Display with 300 Nit Brightness 800:1 Contrast Ratio and -20~70℃ Operating Temperature

Product Description

2.4" IPS TFT LCD Display 240×320 Resolution SPI Interface with CTP

2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.4 inches and a resolution of 240×320 pixels, providing clear and sharp images with accurate color representation.

Key Specifications

Resolution	2.4 Inch 240×320
Interface	4 Wire SPI
Driver IC	ST7789V
Brightness	300 Nit
Viewing Angle	IPS All View Angle
Display Area	36.72(H)×48.96(V)mm
Contrast Ratio	800:1

Detailed Technical Specifications

Screen Size	2.4 inch
Number of Pixels	240RGB(H)×320(V)
Display Area	36.72(H)×48.96(V)mm
Pixel Pitch	0.153(H)×0.153(V)mm
Pins	14 Pins
Outline Dimension	42.72×60.26×3.05mm
Pixel Arrangement	RGB Vertical Stripe
Display Mode	Normally Black
Viewing Direction	ALL
Display Color	262K
Luminance	300 nit
Interface	4Line SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Product Features

IPS Technology: Features full-view characteristics with minimal color distortion from any angle
SPI Interface: Simple 4-wire connection with fast data transmission for easy microcontroller integration
Capacitive Touch Panel (CTP): Supports multi-touch with fast response and high accuracy
High Brightness: 300 nit brightness ensures visibility in various lighting conditions
Wide Temperature Range: Operates from -20℃ to 70℃ for diverse application environments
Compact Size: Small form factor (42.72×60.26×3.05mm) ideal for portable devices
