Static Drive LCD COG Module with 6 o'clock Viewing Angle 26 Pins and 3.3V Voltage for SPI Interface

1000
MOQ
0.7-7USD
Price
Static Drive LCD COG Module with 6 o'clock Viewing Angle 26 Pins and 3.3V Voltage for SPI Interface
Features Gallery Product Description Chat Now
Features
Specifications
Backlight Technology: LED
Display Type: COG
Light Source: White LED
Pins Number: 26PINS
Viewing Angle: 6 O'clock
Display Size: Customized
Display Drice Mode: Static Drive LCD Module
Operating Temperature: -10 -60
Highlight:

6 o'clock Viewing Angle LCD COG Module

,

26 Pins Static Drive LCD Module

,

3.3V Voltage SPI Interface LCD
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Static Drive Transflective SPI Interface LCD COG Module
Product Specifications
Type COG
DOT-Matrix Row/Column-Driven
LCD Drive Mode Static Drive LCD Module
Outline Size 60.27 X 102.4 X 5 Mm
Backlight White LED
Detailed Specifications
ITEM CONTENT DESCRIPTION
1 Customized yes
2 Polarizer type transflective
3 Viewing angle 6 o'clock
5 Driving Method 1 / 4 duty, 1 / 3 bias
6 Operating Temperature -10 -60
7 Storage Temperature -20-70
8 Driver IC AiP31033E
9 Voltage 3.3V

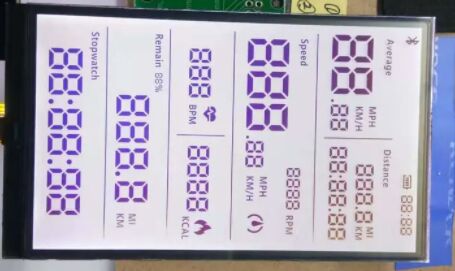

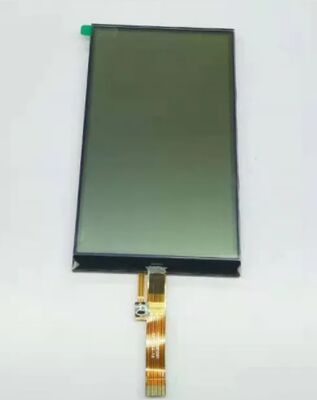

Static Drive LCD COG Module with 6 o'clock Viewing Angle 26 Pins and 3.3V Voltage for SPI Interface 0 Static Drive LCD COG Module with 6 o'clock Viewing Angle 26 Pins and 3.3V Voltage for SPI Interface 1
Product Overview

The static drive transparent SPI interface LCD COG module is a specialized liquid crystal display module with advanced technical features suitable for various applications.

Display Features
  • Interface Method: SPI (Serial Peripheral Interface) - a full-duplex synchronous serial communication protocol offering high speed with minimal pin usage
  • Packaging Form: COG (Chip On Glass) - direct chip bonding to glass reduces module volume for thinner, lighter products
  • Display Characteristics: Monochrome dot matrix with common resolutions (128*64, 128*128); transparent optical design with excellent viewing effects
  • Control Chip: Typically uses ST7565, ST7567 chips supporting multiple display modes and instruction sets
  • Working Voltage: 3.3V low-voltage operation for reduced power consumption
Applications
  • Mobile Devices: Elderly phones, MP3 players, video game consoles
  • Instrumentation: Industrial control instruments, measuring devices, smart meters
  • Communication Products: Walkie-talkies, wireless data modules
  • Medical Equipment: Blood glucose meters, blood pressure monitors
  • Automotive Electronics: Dashboards, multimedia systems, reversing radar
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

No problem. Please send us your specification/drawing. If unavailable, provide samples and we'll recommend suitable standard products or customize based on your requirements.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

For segment type LCD modules requiring size or content modifications, new LCD glass modules with tooling are required.

This LCD display is HTN type, but I want STN type, can you make?

Yes, we can modify the display type according to your request.

I want customize a new LCD module. Can you do?

Yes. Please send your drawing or provide outline size, display information (glass thickness, polarizer type, display type, connector mode, temperature ranges, voltage, viewing direction, drive condition).

What is leading time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.

Can you send us samples for checking?

Yes, sample orders are available.

What is the Leading Time?

Standard products: 1 day after payment if in stock. Special mass production: 15-30 days (earlier completion will be communicated in advance).


Static Drive LCD COG Module with 6 o'clock Viewing Angle 26 Pins and 3.3V Voltage for SPI Interface 2

Tag:

COG LCD Module

Chip On Glass LCD Display

Segmented LCD Display
