Custom 7 Segment LCD Display with 37mm x 17mm x 1.1mm Dimensions and 3.0V Supply Voltage for 34mm x 12mm Viewing Area

1000
MOQ
0.7-7USD
Price
Custom 7 Segment LCD Display with 37mm x 17mm x 1.1mm Dimensions and 3.0V Supply Voltage for 34mm x 12mm Viewing Area
Features Gallery Product Description Chat Now
Features
Specifications
Backlight Color: Customizable
Dimensions: 37mm ( L ) * 17mm ( W ) * 1.1mm T
Supply Voltage: 3.0V
Display Type: Segment LCD
Connect: Pin
Viewing Area: 34mm ( L ) * 12mm ( W )
Backlight Type: LED
Highlight:

37mm x 17mm x 1.1mm 7 Segment LCD Display

,

3.0V Supply Voltage TN Digit LCD Display

,

34mm x 12mm Viewing Area Custom Segment LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Custom 7 Segment LCD Reflective Display Module / TN Digit LCD Positive Display
Product Details
Type: Custom TN LCD Display
Background: Custom
Voltage: 3.0 V
Connector: Pin
Driving Method: Dynamic
Polarizer Type: Transmissive
Product Specifications
Item Content Description
1 LCD Type FSTN LCD Display
2 Outline Size 37mm (L) * 17mm (W) * 1.1mm (T)
3 VA Size 34mm (L) * 12mm (W)
4 Viewing Direction 6 O'clock
5 Voltage 3.0V
6 Display Mode Positive
7 Polarizer Mode Transmissive, Transflective
8 Backlight White LED
9 LED Number 2pcs
10 Contactor Pin

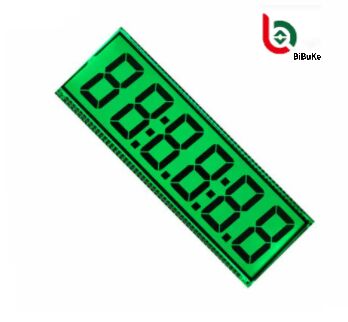

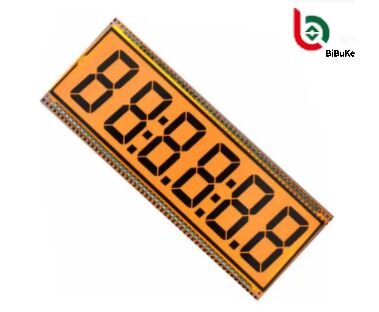

Custom 7 Segment LCD Display with 37mm x 17mm x 1.1mm Dimensions and 3.0V Supply Voltage for 34mm x 12mm Viewing Area 0 Custom 7 Segment LCD Display with 37mm x 17mm x 1.1mm Dimensions and 3.0V Supply Voltage for 34mm x 12mm Viewing Area 1 Custom 7 Segment LCD Display with 37mm x 17mm x 1.1mm Dimensions and 3.0V Supply Voltage for 34mm x 12mm Viewing Area 2
Display Screen Introduction
Structure and Principle
The 7-segment liquid crystal reflective display module consists of seven liquid crystal display segments arranged in an "8" shape, with each segment independently controllable. It utilizes the optical rotation property of TN liquid crystal molecules that change arrangement under an electric field, altering light transmission and reflection to achieve segment on/off display. In positive display mode, segments appear bright when no electricity is applied (light reflection) and dark when powered (light transmission).
Display Characteristics
  • Monochrome display capability (black/white tones)
  • Low power consumption - reflective design eliminates need for backlight
  • Fast response speed for quick content updates
  • Optimized for simple numeric and character display
Technical Parameters
  • Operating voltage: 3.0V typical
  • Operating temperature: -20℃ to 70℃
  • Storage temperature: -30℃ to 80℃
  • Optimal viewing angle: 12:00 direction (front view)
Configuration Options
  • Customizable dimensions to fit specific space requirements
  • Multiple connection options: PIN pads, FPC, or zebra strips
  • Flexible integration with circuit boards
Applications
  • Consumer Electronics: Electronic watches, calculators, handheld games
  • Home Appliances: AC remotes, washing machines, microwaves
  • Instrumentation: Multimeters, oscilloscopes, electronic scales
  • Industrial Control: Process monitoring for temperature/pressure/flow
  • Transportation: Vehicle dashboards for speed/fuel/temperature display
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
We can accommodate custom specifications. Please provide your detailed requirements or samples, and we'll recommend suitable options or create a customized solution.
This LCD is the right type but needs size reduction and minor display changes?
For segment-type LCD modules, size or content modifications require new tooling for a custom LCD glass module.
Can you produce STN type instead of HTN?
Yes, we can modify the display type according to your requirements.
Do you offer custom LCD module development?
We provide full customization services. Please share your specifications including outline dimensions, display parameters, operating conditions, and connection requirements.
What is the tooling lead time?
Standard lead time is 15-25 days after drawing approval and tooling payment. Exact timeline will be confirmed upon project finalization.
Can we request samples for evaluation?
Sample orders are available for quality verification.
What are your production lead times?
Standard products ship within 1 day of payment. Custom mass production typically requires 15-30 days, with possible earlier completion notifications.

Custom 7 Segment LCD Display with 37mm x 17mm x 1.1mm Dimensions and 3.0V Supply Voltage for 34mm x 12mm Viewing Area 3
