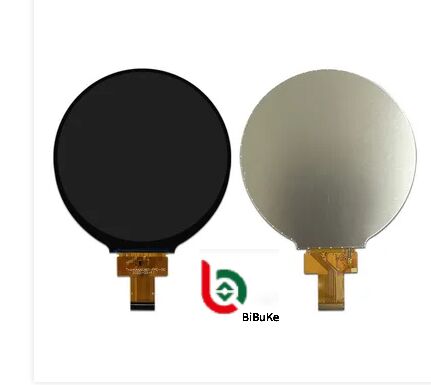

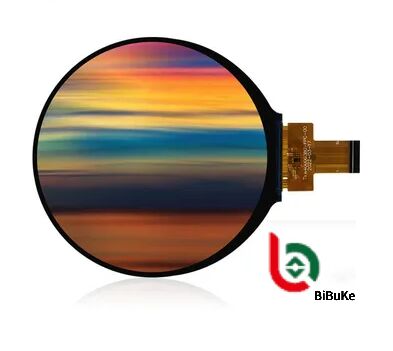

4-inch 720×720 Circular IPS LCD Display
This 4.0-inch circular full-color TFT LCD display features capacitive touch compatibility, 720×720 resolution, IPS wide viewing angle technology, and high-brightness 450cd/m² output. Designed for wide temperature operation from -20°C to +70°C, it utilizes MIPI interface with customizable FPC, touch, and backlight configurations.
We provide comprehensive technical support, superior production quality control, and professional after-sales service to ensure optimal performance and reliability.
Ideal for smart home appliances, kitchen equipment, instrument displays, security access control, educational devices, medical equipment, and automotive connectivity applications.
Product Specifications
| Viewing Direction |
All O'clock |
| Pixel Pitch (W×H) |
0.047×0.141 mm |
| Number of Pixels |
720×720 |
| Active Area |
Φ101.52 mm |
| Driver IC |
NV3051F |
| Product Name |
Round TFT LCD |
| Size |
4.0 inch |
| Brightness |
450 cd/m² |
| Interface |
MIPI 4 LANE BIT Interface |
Key Features
- Circular TFT LCD with Active Matrix Technology
- Full Color Display with High Resolution (720×720 pixels)
- Wide Viewing Angle (All O'clock)
- High-quality Image and Video Performance
- Suitable for Wearable Devices and Industrial Applications
Technical Parameters
| Parameter |
Value |
Unit |
| Size |
4.0 |
Inch |
| LCD Type |
Normally black |
-- |
| Drive Element |
TFT active matrix |
-- |
| Number of Pixels |
720×3RGB(H)×720(V) |
Dots |
| Pixel Arrangement |
RGB stripe |
-- |
| Pixel Pitch (W×H) |
0.047×0.141 |
mm |
| Active Area |
Φ101.52 |
mm |
| Outline Size (W×H×T) |
105.6×109.87×2.13 |
mm |
| LCM Interface |
MIPI 4 LANE BIT Interface |
- |
| LCM Pin Count |
40 |
|
| Backlight LEDs |
6 |
pcs |
| Backlight Current |
40 |
mA |
| Backlight Voltage |
18 |
V |
| Operating Temperature |
-30 to +80 |
℃ |
| Storage Temperature |
-30 to +80 |
℃ |
| Brightness |
450 |
cd/m² |
Frequently Asked Questions
I want an LCD display with 8 digits and outline size of 65×30×2.8mm. Is this possible?
Yes, we can accommodate this request. Please provide your specifications or drawings. If you don't have technical drawings, you can send samples, and we'll recommend suitable standard products or customize according to your requirements.
This LCD is what we need, but the size is too large. Do you have smaller sizes available?
For segment type LCD modules requiring size modifications or display content changes, we'll need to create a new LCD glass module, which involves opening new tooling.
This LCD display is HTN type, but I need STN type. Can you manufacture this?
Absolutely. We can modify the display type according to your specific requirements.
Can you customize a new LCD module for our application?
Yes, we specialize in custom LCD modules. Please provide your drawings or specifications including outline size, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the typical lead time for tooling development?
Tooling typically requires 15-25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines upon drawing approval.
Can you provide samples for evaluation?
Yes, sample orders are available for quality verification and testing.
What are your standard lead times for production?
For standard products in stock, lead time is one day after payment. For mass production of custom items, lead time is approximately 15-30 days. We'll notify you promptly if we can complete orders ahead of schedule.
