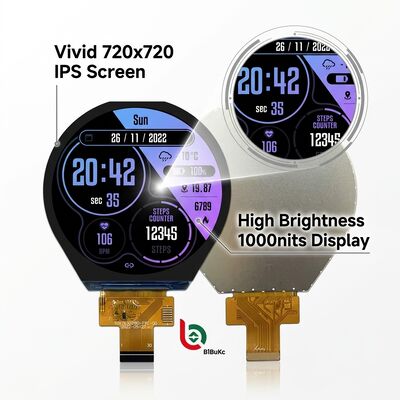

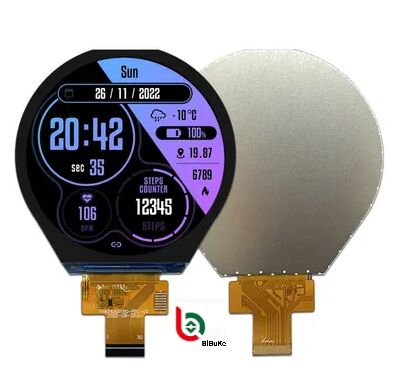

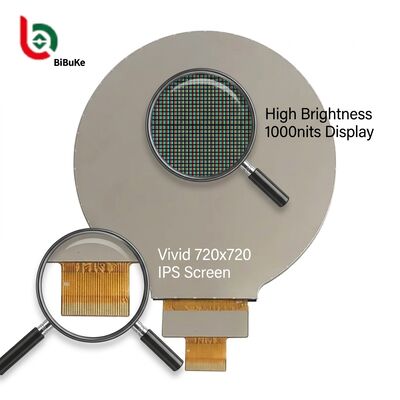

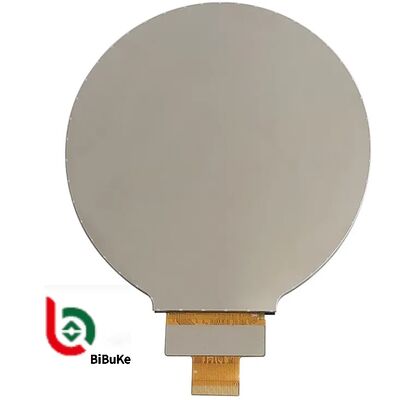

4-inch Circular Automotive Grade TFT LCD Display
High-brightness 1000 nits circular TFT LCD display designed for automotive and industrial applications with wide temperature range and superior reliability.
Key Features
| Specification |
Details |
| LCD Display Size |
4 inch Round TFT |
| Module Structure |
TFT Display |
| LCD Display Type |
TFT/TRANSMISSIVE |
| LCD Display Mode |
Normally Black |
| Viewing Direction |
IPS all viewing angles |
| Module Size |
107.60(H) * 111.87(V) * 3.83(T) mm |
| Active Area |
101.52 mm Diameter |
| Resolution |
720RGB * 720 pixel |
| Interface Type |
MIPI interface |
| Operating Temperature |
-30℃ to +85℃ |
| Surface Luminance |
1000 cd/m² |
| Color Numbers |
16.7M |
| Backlight Type |
White LED |
Outline Drawing
Pin Definition
| No. |
Pin |
Description |
| 1 |
LEDA |
LED anode |
| 2 |
LEDK1 |
LED Cathode |
| 3 |
LEDK2 |
LED Cathode |
| 4 |
VCI |
Power Supply 2.8~3.3V |
| 5 |
IOVCC |
Power Supply 1.8V-2.0V |
| 6 |
RESET |
LCM reset signals |
| 7 |
TE |
Tearing effect output |
| 8 |
PWM |
The PWM frequency output for LCD driver control |
| 9 |
GND |
Ground |
| 10 |
D0P |
DSI-D0+ data signals |
| 11 |
D0N |
DSI-D0- data signals |
| 12 |
GND |
Ground |
| 13 |
D1P |
DSI-D1+ data signals |
| 14 |
D1N |
DSI-D1- data signals |
| 15 |
GND |
Ground |
| 16 |
CLKP |
DSI-Clock+ |
| 17 |
CLKN |
DSI-Clock- |
| 18 |
GND |
Ground |
| 19 |
D2P |
DSI-D2+ data signals |
| 20 |
D2N |
DSI-D2- data signals |
| 21 |
GND |
Ground |
| 22 |
D3P |
DSI-D3+ data signals |
| 23 |
D3N |
DSI-D4- data signals |
| 24 |
GND |
Ground |
| 25 |
TP_INT |
Touch Interrupt |
| 26 |
TP_SDA |
Touch IIC Data signal |
| 27 |
TP_SCL |
Touch IIC Clock signal |
| 28 |
TP_RESET |
Touch Reset Signal |
| 29 |
TP_VCI |
Touch Power supply |
| 30 |
TP_IOVCC |
Touch Power supply |
Product Core Introduction
This 4-inch circular automotive-grade TFT LCD display with 1000 nits brightness is a high-specification circular display module specifically engineered for vehicle-mounted applications and harsh industrial environments. It features exceptional brightness, wide temperature range operation, shock resistance, and automotive-grade reliability, making it ideal for circular gauges, dashboards, HUD systems, and various other scenarios.
Core Parameters
- Size: 4 inches diagonal, circular design with 101.52mm effective display diameter
- Resolution: 720*720 pixels with square pixels for full circular coverage
- Brightness: 1000 cd/m² for clear visibility in strong lighting conditions
- Panel Technology: IPS hard screens with full viewing angle capability
- Contrast Ratio: 800:1 or higher for vivid color representation
- Interface: MIPI-DSI with 2/4 lanes compatibility
- Driver IC: Automotive-grade chips including ST7701S
- Power Supply: 2.6-3.6V with low power consumption design
- Operating Temperature: -30℃ to +85℃ meeting automotive standards
- Lifespan: Backlight life exceeding 40,000 hours
- Reliability: AEC-Q100 certified with shock resistance and EMI protection
Core Advantages
- 1000 nit ultra-bright display ensures clear readability even in direct sunlight
- Circular shape complements retro and high-end vehicle instrument panel designs
- Automotive-grade quality with wide temperature range and shock resistance
- IPS full-view technology maintains color accuracy from any viewing angle
- High integration with MIPI interface simplifies wiring and supports touch integration
Main Applications
Automotive Electronics
- Circular instrument panels replacing traditional gauges
- Central control rotary screens and passenger seat displays
- HUD auxiliary displays for speed, navigation, and ADAS warnings
- Electronic rearview mirrors with stream media capability
- Rear entertainment and control screens
Industrial and Special Equipment
- Industrial instruments and controllers for parameter display
- Medical portable equipment and diagnostic instruments
- Outdoor handheld terminals for inspection and mapping
- Smart home appliances and high-end consumer electronics
