Features

Specifications

Connect: Plugging In

Backlight Color: Green Backlight

Operating Temperature: -10°C To +60°C

Resolution: 128x64

Backlight: LED Backlight

Viewing Angle: 6 O'clock

Touch Screen: Without Touch Screen ( Customizable )

Dimensions: 65.0(L) X 38.6(W) X 4.9(T) Mm

Highlight:

Green LED Backlight COG LCD Display

10 Pins Graphic LCD Module

128x64 Resolution COG LCD Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

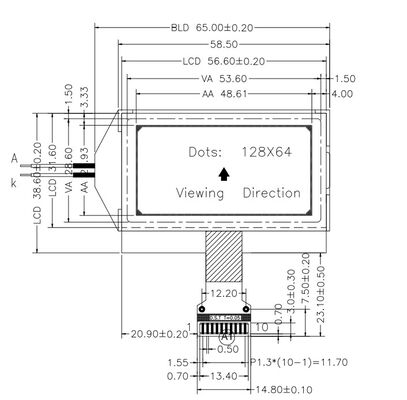

Green LED Backlight 10 Pins Graphic 128x64 COG LCD Display Module with High Resolution

Product Description

Green LED Backlight 10 pins Graphic 128x64 COG LCD Display

This 10-pin graphics LCD module features a 128×64 COG (Chip-on-Glass) display with green LED backlighting, designed for compact and lightweight applications requiring clear graphic and text information display.

Technical Specifications

Product	128x64 COG LCD Module
Resolution	128x64 Graphics
LCD Type	STN, Positive, Transmissive
Backlight Color	Green Backlight
Operating Voltage	2.8 V
Optics	6 O'clock
Outline Dimensions	65.0(L) X 38.6(W) X 4.9(T) mm
Viewing Area	53.6(L) X 28.0(W) mm
Driving Method	1/64 Duty, 1/7 Bias
Operating Temperature	-10°C To +60°C
Pin Number	10 Pins
Controller	ST7567 Or Equivalent
Interface	MCU
Compliance	REACH & RoHS Compliant

Product Features

Display Technology: STN liquid crystal material with green LED backlight for clear visibility in various lighting conditions
Optical Structure: Semi-transmissive reflective design for all-weather visibility
Pin Configuration: 10-pin interface for power, ground, data transmission, and control signals
Interface Options: Supports parallel and serial interfaces including SPI and I2C communication protocols
Driver Compatibility: Compatible with ST7565P, ST7567, ST7920 and equivalent controller chips
Power Efficiency: Low power consumption design ideal for battery-powered devices
Temperature Range: Commercial-grade operating temperature from -10°C to +60°C

Application Areas

Industrial Control: Equipment status monitoring, parameter settings, and fault information display
Instrumentation: Digital multimeters, oscilloscopes, flow meters for data and waveform display
Medical Equipment: Patient monitoring devices, diagnostic equipment interfaces
Smart Home Systems: Central control displays for home automation
Handheld Devices: Portable data collectors, terminals, and mobile instruments

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?

Yes, we can accommodate this requirement. Please provide your specifications or drawing. If you don't have specifications, send us samples and we'll recommend suitable standard products or customize based on your requirements.

This LCD is what we want, but it's too big. Do you have smaller sizes? We also need minor display content changes.

For segment type LCD modules requiring outline size or display content modifications, we need to create new tooling for a custom LCD glass module.

This LCD display is HTN type, but I want STN type. Can you make this change?

Yes, we can change the display type to STN as per your request.

Can you customize a new LCD module for us?

Yes, we provide custom LCD module services. Please send your drawing or provide specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.

What is the lead time for tooling?

Tooling typically takes 15-25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines upon drawing approval.

Can you send samples for evaluation?

Yes, sample orders are available for quality checking and evaluation.

What is the lead time for production?

For standard products in stock, lead time is one day after payment. For mass production of special orders, lead time is approximately 15-30 days. We'll notify you if we can complete orders earlier.
