0.96 Inch Yellow+Blue Dual Color OLED Display with SPI Interface and High Contrast Ratio

1000
MOQ
0.7-7USD
Price
0.96 Inch Yellow+Blue Dual Color OLED Display with SPI Interface and High Contrast Ratio
Features Gallery Product Description Chat Now
Features
Specifications
Module Size: 24.74*16.9*1.42 (mm)
Backlight Technology: LED
Fpc Connect: 30 Pins
Interface Types: 6800/8080 Parallel, 4-wire SPI, And I2C
Viewing Angles: All Viewing Angles
Controller:: SSD1315
Contrast Ratio: 20,000 : 1
Highlight:

0.96 Inch OLED Display

,

Yellow+Blue Dual Color OLED Screen

,

SPI Interface Graphic OLED Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Yellow+Blue 0.96 Inch Thin OLED Display SPI Interface
A compact dual-color OLED display module featuring yellow and blue segments with SPI interface compatibility, ideal for embedded systems and industrial applications.
Technical Specifications
Product: 0.96" Inch Graphic OLED
Resolution: 128x64
Color: Yellow+Blue (Dual Color)
Module Size: 24.74*16.9*1.42 (mm)
Controller: SSD1315
Pin Number: 30 Pins
Life Time: 50,000 Hours
Contrast Ratio: 20,000 : 1
Optics: All Viewing Angles
Glass: OLED
Operating Temp: -40°C To +80°C
Interfaces: 6800/8080 Parallel, 4-wire SPI, And I2C
Brightness: 180 Nits

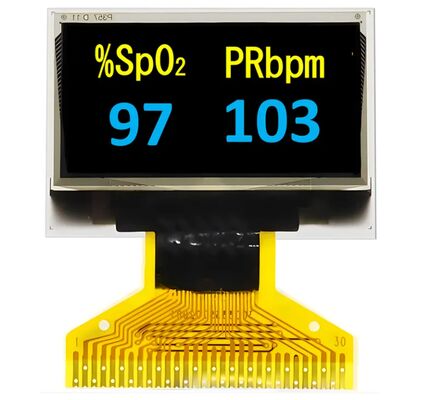

0.96 Inch Yellow+Blue Dual Color OLED Display with SPI Interface and High Contrast Ratio 0
Product Overview
This popular small-sized self-luminous display module features a fixed partition dual-color design with the top 1/4 area (16 pixel rows) displaying yellow and the bottom 3/4 area (48 pixel rows) displaying blue against a black background for high contrast visibility.
Key Features
  • 128×64 dot matrix resolution with SSD1306 or SSD1315 driver IC
  • Supports 3-wire/4-wire SPI interface with I2C compatibility
  • 3.3V operating voltage (5V compatible modules available)
  • Ultra-thin design (less than 1.5mm) without backlight requirement
  • Self-luminous technology provides >160° wide viewing angle
  • Exceptional contrast ratio with clear readability in various lighting conditions
  • Low power consumption with micro-ampere current during static display
  • Microsecond-level response speed
  • Wide operating temperature range (-20℃ to 70℃)
  • Compatible with Arduino, STM32, Raspberry Pi and other embedded platforms
Application Scenarios
  • Maker/OSS Hardware Projects: Debug panels for Arduino, Raspberry Pi displaying sensor data and system status
  • Portable/Battery-powered Devices: Smart wristbands, weather stations, tire pressure monitors
  • Industrial Control and Instruments: Status display panels for PLCs, frequency converters, medical equipment
  • Smart Home and IoT Terminals: Gateways, sensor nodes, remote controls
  • Consumer Electronic Auxiliary Screens: Battery level and mode displays for audio devices and power banks

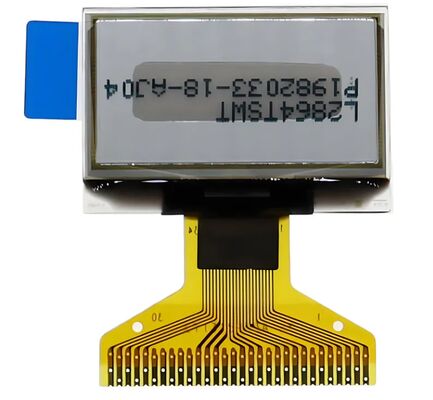

0.96 Inch Yellow+Blue Dual Color OLED Display with SPI Interface and High Contrast Ratio 1 0.96 Inch Yellow+Blue Dual Color OLED Display with SPI Interface and High Contrast Ratio 2
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we will recommend suitable products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module. We can create new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change the display type as per your request.
I want customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you don't have one, please provide the outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive condition), and we can customize for you.
What is leading time for tooling?
Generally, it takes 15 to 25 days after drawing paper confirmation and tooling charge payment. We will provide exact timing upon drawing paper confirmation.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Leading Time?
For standard products in stock, lead time is one day after payment. For mass production of special orders, lead time is approximately 15-30 days. We will notify you in advance if we can finish earlier.
