Product Specifications
| Product |
OLED Display 1.5 Inch |
| Resolution |
128 X 128 |
| Glass Type |
OLED (Organic Light Emitting Diode) |
| Optics |
All Viewing Angles 80/80/80/80 |
| Interface |
I2C, SPI, 6800, 8080 Optional |
| Outline Dimensions |
33.8(W) X 43.7(H) X 1.41(T) mm |
| Active Area |
26.86 (W) X 26.86 (H) mm |
| Operating Temperature |
-40°C To +70°C |
| Pin Number |
25 Pins |
| Controller |
SSD1327 Or Equivalent |
| Drive Mode |
1/128 Duty Cycle |
| Connector |
COG+FPC |
Product Introduction

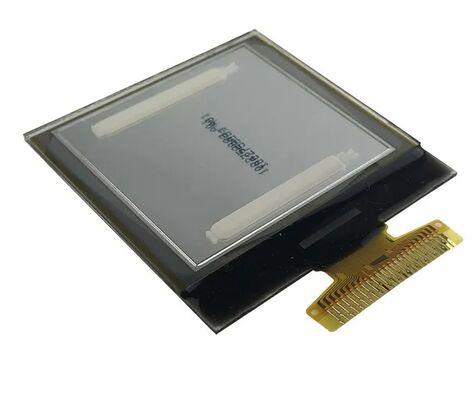

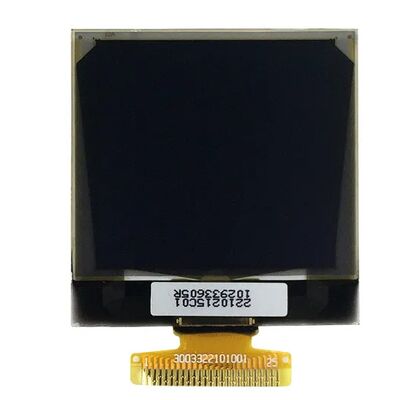

This is a 1.5-inch square single-color OLED display with a resolution of 128×128. It offers the option of white or blue light, is self-luminous, has high contrast, is ultra-thin, and focuses on low power consumption and industrial-grade stability. It is an ideal display solution for miniaturized embedded devices.
Core Features
- Display Specifications: 1.5 inches (square), 128×128 dot matrix, dot pitch 0.21mm, effective display area approximately 26.86×26.86mm
- Color Options: Single-color white / blue option, black background with light emission, extremely high contrast (∞:1)
- Brightness: Approximately 100cd/m², no backlight required, strong self-illuminating visibility
- Viewing Angle: Close to 180° full viewing angle, no color bias
- Driver and Interface: Common SH1107, SSD1327; SPI/I2C (some parallel ports), 3.3V level, compatible with STM32, Arduino, etc.
- Power Consumption: Working approximately 10-20mA, sleep < 5μA, ultra-low power consumption
- Structure: COG (Chip-on-Glass), thickness approximately 2.6-3mm, lightweight
- Operating Temperature: -40℃ to +70℃, industrial-grade temperature resistance
- Power Supply: Logic 3.3V, OLED high voltage 7-16.5V (module built-in boost)
Main Applications
- Instrumentation: Industrial dials, temperature controllers, power monitoring instruments, display data / curves / status
- Smart home: Smart switches, air conditioners / remote controllers, video doorbells, small interface clear
- Wearable devices: Fitness bands, health monitors, smart headphones, low power consumption + small size suitable for adaptation
- Medical equipment: Portable blood oxygen meters, blood glucose meters, electrocardiogram monitors, low temperature stability, high contrast easy to read
- Internet of Things terminals: Sensor nodes, LoRa/Wi-Fi controllers, environmental monitoring equipment
- Embedded development: STM32/Arduino prototypes, DIY projects, educational experiments, simple interface easy to drive
- Automotive and security: Reverse radar, access card reader, camera status screen, wide viewing angle, temperature resistance
