4 Inch 540x1080 High PPI 30 Pin IPS TFT LCD Display

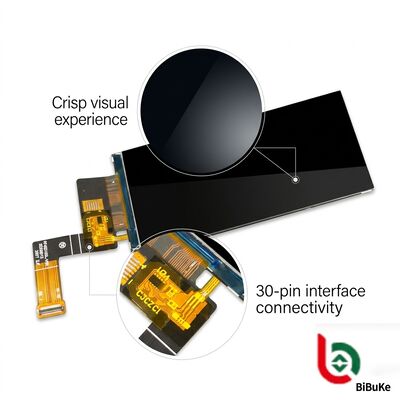

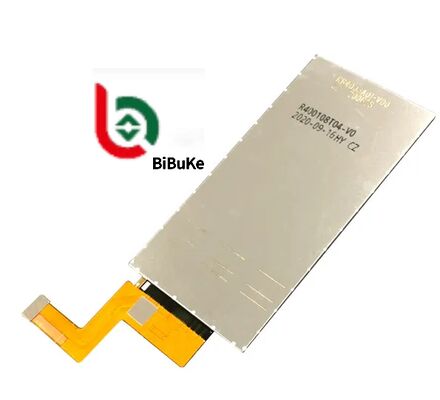

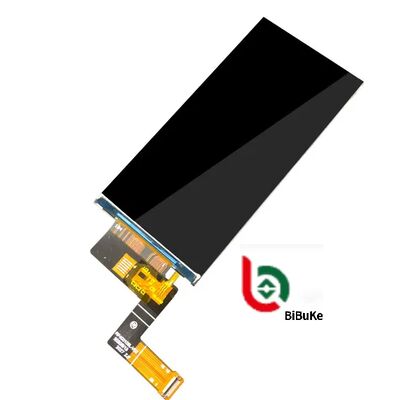

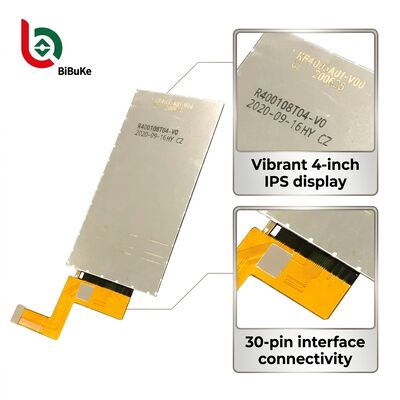

This 4-inch IPS TFT LCD display features high resolution (540*1080 pixels), excellent pixel density, and full viewing angles, making it ideal for mid-to-high-end embedded systems and consumer electronics applications.
Product Specifications
| Product | 4" Inch IPS TFT LCD |
| Resolution | 540x1080 Pixels |
| Viewing Direction | IPS All Viewing Angles |
| Touch Screen | Without, Resistive And PCAP Optional |
| Cover Lens | Can Be Customized |
| Surface Luminance | 350 Cd/m² (Customizable) |
| Interface | MIPI (Customizable) |
| Pin Number | 30 Pins |
| Connection | Connector Type (Customizable) |
| Driver IC | ST7703 |
| Operating Temperature | -20℃ To +70℃ |
| Compliance | REACH & RoHS Compliant |
Product Drawing
Interface Pin Definition
| NO | SYMBOL | FUNCTION |
|---|
| 1 | RST_LCM | This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low. |
| 2 | TE_LCM | Tearing effect signal is used to synchronize MCU to frame memory writing. |
| 3 | GND | Power Ground |
| 4 | TDP0 | MIPI Data Lane |
| 5 | TDN0 | MIPI Data Lane |
| 6 | GND | Power Ground |
| 7 | TDP1 | MIPI Data Lane |
| 8 | TDN1 | MIPI Data Lane |
| 9 | GND | Power Ground |
| 10 | TDP2 | MIPI Data Lane |
| 11 | TDN2 | MIPI Data Lane |
| 12 | GND | Power Ground |
| 13 | TDP3 | MIPI Data Lane |
| 14 | TDN3 | MIPI Data Lane |
| 15 | GND | Power Ground |
| 16 | TCP | MIPI Clk |
| 17 | TCN | MIPI Clk |
| 18 | GND | Power Ground |
| 19 | IOVCC1.8V | Power Supply for I/O system. IOVCC= 1.65V~3.3V. |
| 20 | LEDA | LED Anode |
| 21 | LEDK | LED Cathode |
| 22 | ID1 | ID |
| 23 | NC | NC |
| 24 | VDD2V8 | Power Supply for Analog, VDD=2.5V~3.3V. |
| 25 | NC | NC |
| 26 | SDA_CTP | I²C data signal of Touch Panel；If no used ,let this pin open. |
| 27 | SCL_CTP | I²C clock signal of Touch Panel；If no used ,let this pin open. |
| 28 | EINT_CTP | Interrupt signal to main processor of Touch Panel；If no used ,let this pin open. |
| 29 | RST_CTP | System reset of Touch Panel；If no used ,let this pin open. |
| 30 | VDD2.8_CTP | Power Supply for Analog, VDD=2.4V~3.3V. |
Product Core Features
This 4-inch, 540*1080 resolution, high PPI, 30-pin IPS TFT LCD display module delivers high definition, full viewing angle capability, and high integration, making it the ideal color screen solution for mid-to-high-end embedded systems and consumer electronics.
Key Parameters and Characteristics
- Size and Resolution: 4-inch diagonal, 540 (RGB) * 1080 pixels, approximately 18:9 aspect ratio similar to full-screen mobile phones
- Pixel Density (PPI): Approximately 300 PPI for sharp text and images without visible graininess
- Panel Type: IPS TFT (planar conversion) with full viewing angles (up, down, left, right ≥ 80°)
- Interface: 30-pin with MIPI DSI interface (compatible RGB versions available)
- Backlight and Brightness: LED backlight with typical brightness of 350-550 cd/m² (customizable to 1000 nits)
- Power Supply: Operating voltage 2.4-3.3V (typical 2.8V) with ST7701S/ILI series driver IC
- Temperature Range: Operating -20℃ to +70℃, storage -30℃ to +80℃
- Structure: Module thickness approximately 4-5mm with 30-pin FPC flexible ribbon cable
Typical Applications
Consumer Electronics and Smart Terminals
- Smartphones and feature phones secondary displays
- Smartwatches and fitness bands with large screen versions
- Smart speakers and voice assistants central control interfaces
- Portable media players (MP4/MP5)
- Educational devices and children's tablets
Industrial and Embedded Devices
- Industrial HMI and handheld terminals
- IoT gateways and smart home central control
- Vehicle-mounted aftermarket systems and dashcams
- Security monitoring and video doorbells
Medical and Professional Equipment
- Handheld medical detectors and portable monitors
- Beauty equipment and dental equipment interfaces
Other Applications
- POS machines and cash registers
- Smart locks and access control systems
- Drone remote controllers and FPV glasses
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specifications or drawing. If you don't have specifications, you can send samples and we'll recommend suitable products or create custom solutions based on your requirements.
This LCD is what we want, but the size is too large. Do you have smaller sizes? Can the display content be modified?
For segment type LCD modules requiring size modifications or display content changes, we can create new LCD glass modules with custom tooling to meet your specific requirements.
This LCD display is HTN type, but I want STN type. Can you manufacture this?
Yes, we can modify the display type according to your specifications and requirements.
Can you customize a new LCD module for my application?
Absolutely. Please provide your drawing specifications. If you don't have drawings, please specify the outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions).
What is the lead time for custom tooling?
Typically, custom tooling requires 15-25 days after drawing confirmation and tooling charge payment. We will provide exact timelines once your drawing specifications are confirmed.
Can you provide samples for evaluation?
Yes, sample orders are available for product evaluation and testing.
What is your standard lead time for production?
For standard products in stock, lead time is one day after payment. For mass production of custom products, lead time is typically 15-30 days. We will notify you promptly if we can complete orders ahead of schedule.
