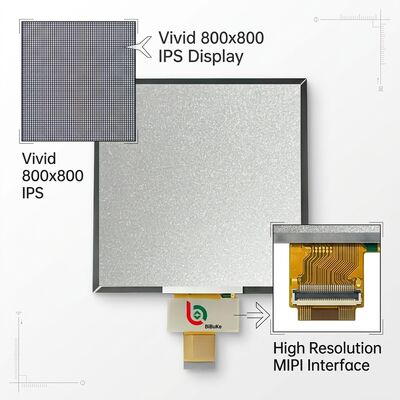

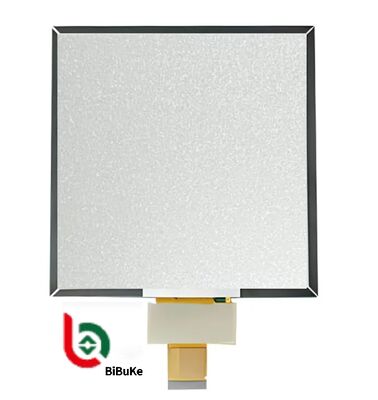

7.6-Inch 800x800 Resolution, MIPI Interface IPS Square TFT LCD Display
High-performance square TFT LCD display with IPS technology and MIPI interface, designed for industrial and commercial applications.
Product Specifications
| Product | 7.6 Inch Square LCD Display |
| Resolution | 800*800 Dots |
| Surface Luminance | 1000 Cd/m² (nits) |
| Interface | MIPI |
| Touch Screen | Customizable |
| Cover Glass Dimension | Customizable |
| Viewing Direction | IPS, All Viewing Angle (85/85/85/85) |
| LCD Controller | ILI9881C |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +75°C |
| Brightness | 1000 Nits |
| LED Lifetime | 40,000 Hours |
| Connection | ZIF FPC |
| Compliance | REACH & RoHS Compliant |
Product Drawing
Pin Definition
| Pin No. | Symbol | Description |
|---|
| 1 | LEDA | LED backlight anode |
| 2 | LEDK | LED backlight cathode |
| 3 | LEDK | LED backlight cathode |
| 4 | VCl | Power supply for the analog power |
| 5 | IOVCC | Power supply for the logic power and I/O circuit |
| 6 | RESET | Reset signal (low active) |
| 7 | TE | Tearing effect output |
| 8 | PWM | The PWM frequency output for LCD driver control |
| 9 | GND | Power ground |
| 10 | MIPI_DP0 | MIPI-DSI data lane 0 positive input pin |
| 11 | MIPI_DN0 | MIPI-DSI data lane 0 negative input pin |
| 12 | GND | Power ground |
| 13 | MIPI_DP1 | MIPI-DSI data lane 1 positive input pin |
| 14 | MIPI_DN1 | MIPI-DSI data lane 1 negative input pin |
| 15 | GND | Power ground |
| 16 | MIPI_CLKP | MIPI-DSI data lane positive input pin |
| 17 | MIPI_CLKN | MIPI-DSI data lane negative input pin |
| 18 | GND | Power ground |
| 19 | MIPI_DP2 | MIPI-DSI data lane 2 positive input pin |
| 20 | MIPI_DN2 | MIPI-DSI data lane 2 negative input pin |
| 21 | GND | Power ground |
| 22 | MIPI_DP3 | MIPI-DSI data lane 3 positive input pin |
| 23 | MIPI_DN3 | MIPI-DSI data lane 3 negative input pin |
| 24 | GND | Power ground |
| 25 | TP_INT | INT pin for CTP (NC) |
| 26 | TP_SDA | SDA pin for CTP (NC) |
| 27 | TP_SCL | SCL pin for CTP (NC) |
| 28 | TP_RESET | Reset pin for TP (NC) |
| 29 | TP_VCl | VCl pin for CTP (NC) |
| 30 | TP_IOVCC | IOVCC pin for CTP (NC) |
Product Core Features
This square full-view display module is designed for both industrial and commercial applications. It features a transmissive IPS panel with a 1:1 800*800 pixel resolution. The display area measures 135.36*135.36mm, providing a balanced square shape ideal for text, charts, and UI layouts without distortion.
The display supports 16.7 million colors with a 4-way full-view angle of 85° (left/right/top/bottom), ensuring minimal color deviation when viewed from any angle. The high-brightness model reaches 1000 cd/m² for clear outdoor visibility, while a standard 400 cd/m² option is also available. The white LED backlight offers adjustable brightness and extended lifespan.
The MIPI DSI interface (30-pin FPC flexible cable) provides a high-speed display solution for mobile and embedded devices, offering lower power consumption and superior anti-interference compared to parallel RGB interfaces. Compatible with controllers including RK3568, ESP32-S3, Jetson Nano, and Raspberry Pi. Capacitive multi-touch options (FT6336U touch IC, I2C communication) are available.
Electrical specifications include 3.3V operating voltage with a working temperature range of -20°C to +70°C and storage temperature of -25°C to +75°C, ensuring reliable performance in industrial and outdoor environments.
Core Application Scenarios
- Industrial Control & IoT Terminals: HMI panels, intelligent gateways, PLC interfaces, warehouse scanning terminals. Square format ideal for data sets, status icons, and operation buttons.

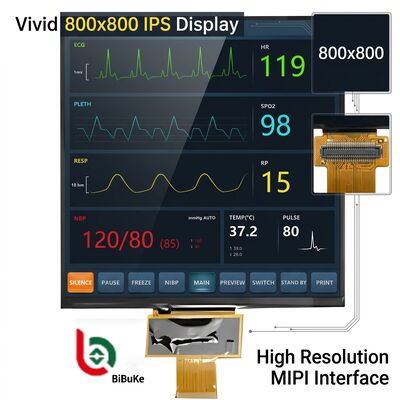

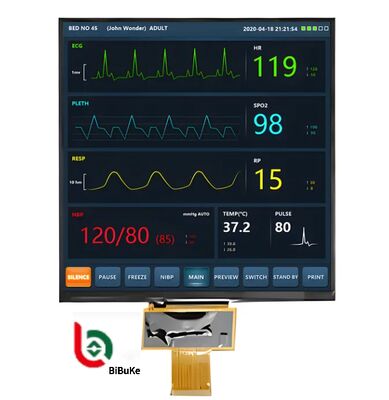

- Portable Medical Equipment: Handheld ultrasound, ECG monitors, blood analyzers. IPS viewing angles facilitate data reading from different positions.
- Vehicle & Navigation Systems: Passenger information screens, instrument panels, monitoring displays. Wide temperature range withstands vehicle environmental conditions.
- Smart Retail & Home Automation: Self-checkout displays, control panels, smart home interfaces. Square layout optimizes information organization.
- Embedded Development: Raspberry Pi, Jetson Nano displays, robotics feedback screens, simulation instrument panels with comprehensive open-source drivers.
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specifications or drawing. If you don't have specifications, we can recommend suitable options based on your samples or requirements.
This LCD is what we want, but it's too large. Do you have smaller sizes? Can the display content be modified?
For segment-type LCD modules requiring size or content modifications, new LCD glass modules with custom tooling are required.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type according to your requirements.
Can you customize a new LCD module?
Yes, we offer full customization services. Please provide your drawing or specifications including outline size, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for product evaluation.
What is the production lead time?
Standard products in stock ship within one day after payment. Mass production for custom orders typically requires 15-30 days, with earlier completion communicated in advance.
