Name: 1.54 Inch OLED Display Module White Color 128x64 Pixels SSD1309 I2C Interface
Brand: Dongguan Bibuke Electronic Technology Co., Ltd.
SKU: BBI-001
Price: 2.10 USD
Availability: InStock

1.54 Inch OLED Display Module White Color 128x64 Pixels SSD1309 I2C Interface

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Weight: 2.18 (g)

Storage Temp: -30°C ~ +80°C

Direction: IPS

Color: Color(round)

Operating Temp: -20°C ~ +70°C

Oled Type: Amoled

Outline: 26.70×19.26×1.4mm

Lcd Driver Ic: SEPS114A

Name: OLED Display

Highlight:

1.54 Inch OLED Display

White OLED Display Module

128X64 I2C OLED Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Model Number: BBI-001

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

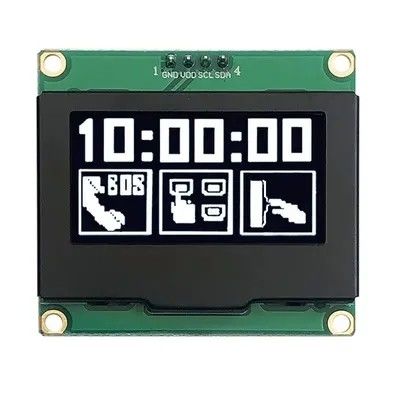

1.54 Inch OLED Display Module White Color 128x64 Pixels SSD1309 I2C Interface

Product Description

1.54 Inch OLED Display Module White Color 128x64 Pixels SSD1309 I2C Interface

Key Features:

Interface: The SSD1309 supports I2C or SPI communication protocols. This makes it compatible with many microcontrollers like Arduino, Raspberry Pi, ESP32, and others.
Display Technology: The SSD1309 is used to control OLED (Organic Light Emitting Diode) screens, which offer excellent contrast and low power consumption because each pixel is individually lit (no backlight).
Low Power Consumption: OLED screens are known for their low power consumption, especially when displaying dark content, as they only use power for the pixels that are turned on (no need for a backlight).
High Contrast & Wide Viewing Angles: OLED displays have great contrast ratios, providing deep blacks and vibrant colors (if applicable), as well as wide viewing angles.

Detailed Parameters:

1	Brand Name	Bibuke
2	Product Description	1.54 Inch OLED Display
3	Display Mode	OLED(Organic Light Emitting Diode)
4	Display Color	White
5	Panel Size	1.54 Inch
6	Dot Matrix	128*64 Pixels
7	Module Size	47.0(W) x 43.0(H) x 13.8(D) mm
8	View Area	37.06(W) x19.52(H) mm
9	Active Area	35.06(W) x17.52(H) mm
10	Dot Size	0.254(W) x 0.254(H) mm
11	Dot Pitch	0.274(W) x 0.274(H) mm
12	Drive IC	SSD1309
13	Interface	I2C
14	Operating Temperature	-40~+70℃
15	Voltage	3~5V
16	PIN Pitch	2.54 mm
