SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board

1000
MOQ
DISCUSSABLE
Price
SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board
Features Gallery Product Description Chat Now
Features
Specifications
Name: OLED Display 128X64 SSD1309
Lcd Type: AMOLED
Pixel Number: 128*64
Interface: 12c
Color: Color(round)
View Area: 37.06(W) X19.52(H) Mm
Active Area: 35.06(W) X17.52(H) Mm
Highlight:

SSD1309 OLED Display

,

OLED Display 128X64 SSD1309

,

1.54 Inch OLED Screen

Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board



Product Description

Key Features:


  1. Interface: The SSD1309 supports I2C or SPI communication protocols. This makes it compatible with many microcontrollers like ArduinoRaspberry PiESP32, etc.

  2. Display Technology: The SSD1309 is used to control OLED (Organic Light Emitting Diode) screens, which offer excellent contrast and low power consumption because each pixel is individually lit (no backlight).

  3. Low Power Consumption: OLED screens are known for their low power consumption, especially when displaying dark content, as they only use power for the pixels that are turned on (no need for a backlight).

  4. High Contrast & Wide Viewing Angles: OLED displays have great contrast ratios, providing deep blacks and vibrant colors (if applicable), as well as wide viewing angles.





Detailed Parameters:


1 Brand Name Bibuke
2 Model Description SSD1309 1.54 Inch OLED Screen
3 Display Mode OLED(Organic Light Emitting Diode)
4 Display Color Blue
5 Panel Size 1.54 Inch
6 Dot Matrix 128*64 Pixels
7 Module Size
47.0(W) x 43.0(H) x 13.8(D) mm

8

View Area

37.06(W) x19.52(H) mm

9 Active Area
35.06(W) x17.52(H) mm
10 Dot Size 0.254(W) x 0.254(H) mm
11 Dot Pitch 0.274(W) x 0.274(H) mm
12 Drive IC SSD1309
13 Interface I2C
14 Operating Temperature -40~+70℃
15 Voltage 3~5V
16 PIN Pitch 2.54 mm

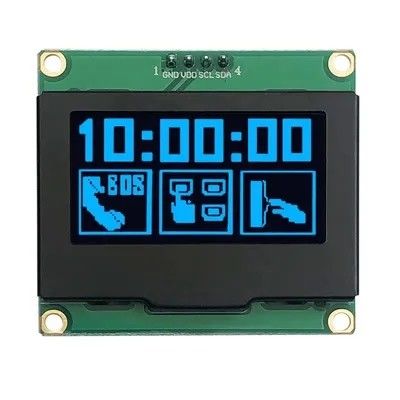

SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board 0

SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board 1





Product application



Household appliances-refrigerators: air conditioners, fans, hot and cold air heaters, water heaters, electric blankets, heaters, air purifiers, washing machines, clothes dryers, vacuum cleaners, lampblack cleaners, microwave ovens, cookers, electric ovens, rice cookers, water drinkers, tea sets, etc.;



Communication :equipment-telephone, interphone, fax machine, wireless wifi, etc.



Automotive: electronics-on-board entertainment system, automobile fault detector, CarLog, vehicle navigator, car audio, reverse radar, reverse mirror, camera, anti-theft device, etc.



Instruments :water meters, electric meters, multimeter, electronic scales, pressure meters, temperature meters, flow meters, display instruments, electrical instruments, space instruments, measuring instruments, analytical instruments, electrochemical instruments, optical instruments, etc.;



Fitness: equipment-treadmill, waist machine, fitness bike, training device, pedometer, code table, beauty instrument, fat square measuring instrument, fitness instrument, electronic sphygmomanometer, weighing scale, etc.



 Financial :tax control-tax control cash machine, poss machine, usb-key cheque printer, banknote counting machine, tax control invoice machine, etc.



Consumer electronics:mp3,mp4,dvd, electronic dictionary, click reader, early teaching machine, learning machine, electronic organ, electronic clock, chronograph, calculator, etc.



high resolution, high definition, high brightness, cost-effective, energy conservation, high temperature, low temperature, Wide Temperature Range, Positive, Negative




Production Line:

 Clean Room class 10k@0.8um, Pressurec 0.8kgf

 Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

 COG production lines: 4 .

 Backlight production lines: 2 .

 Existing machine capacity will be 1KK per month.

SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board 3

SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board 4

SSD1309 OLED Display 128X64 SSD1309 1.54 Inch OLED Screen Blue Bigger PCB Board 5

***In compliance with ISO9001 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
