Home /Products/OLED Display/1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

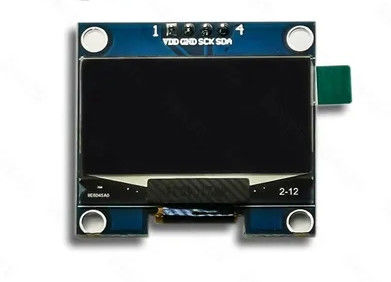

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

1000

MOQ

0.1-5USD

Price

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

Features Gallery Product Description Request A Quote

Features

Specifications

Outline Drawing: According To The Annexed Outline Drawing

Pixel Pitch: 0.7*0.7MM

Display: Oled

Luminance: 350 Nits

Storage Temp: -30°C ~ +80°C

Sizes Range: 1.18 Inch

Brightness: Varies Depending On Model

Pixel: 1080*1920

Name: OLED Display

Highlight:

1.3 Inch I2C OLED Display

,

I2C OLED Display Module

,

SH1106 OLED Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Model Number: BBI-001

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

Product Description

Product Description

1.3 Inch I2C OLED Display Module White Color 128x64 Resolution SH1106

Key Features:

Display Size: 1.3 inches (diagonal).
Resolution: 128x64 pixels (monochrome).
Controller: SH1106.
Interface: I2C (or SPI, but I2C is more common for this display).
Power Consumption: Very low, especially when displaying darker content.
Excellent Contrast: OLED technology provides perfect black levels and high contrast ratios.
Color: Typically black/white, but other color combinations may exist (blue/white).

Detailed Parameters:

1	Brand Name	Bibuke
2	Model Description	1.3 Inch I2C OLED Display
3	Display Mode	OLED(Organic Light Emitting Diode)
4	Color	White
5	Size	1.3 Inch
6	Dot Matrix	128*64 Pixels
7	Module Size	35.5(W) x 33.5(H) x 11.3(D) mm
8	View Area	31.42 (W) x 16.70(H) mm
9	Active Area	29.42 (W) x 14.70(H) mm
10	Dot Size	0.21(W)*0.21(H) mm
11	Dot Pitch	0.23(W)*0.23(H) mm
12	Drive IC	SH1106G
13	Interface	I2C
14	FPC Connector	4PIN, soldering
15	PIN Pitch	2.54 mm
16	Drive Method	VCC=3.3V~4.2V
17	Viewing Angle	160°
