BBI Monochrome LCD Display HTN Positive Polarizer LCD Display 12 O'Clock

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Dot Pitch: 0.519mm(L)*0.45mm(W)

Controller: SPLC780D1 OR EQUIVALENT

Polarizer Type: TRANSMISSIVE

Color: White

Display Format: 20*4, 20 Characters X 4 Line

Connetor: FPC

Backlight Type: LED

Dispay Type: FSTN/positie

Name: Monochrome LCD Display

Highlight:

Monochrome LCD Display HTN

Polarizer LCD Display 12 O'Clock

Positive LCD Display 12 O'Clock

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Document: SDH-M13271-HP-1-A1.pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

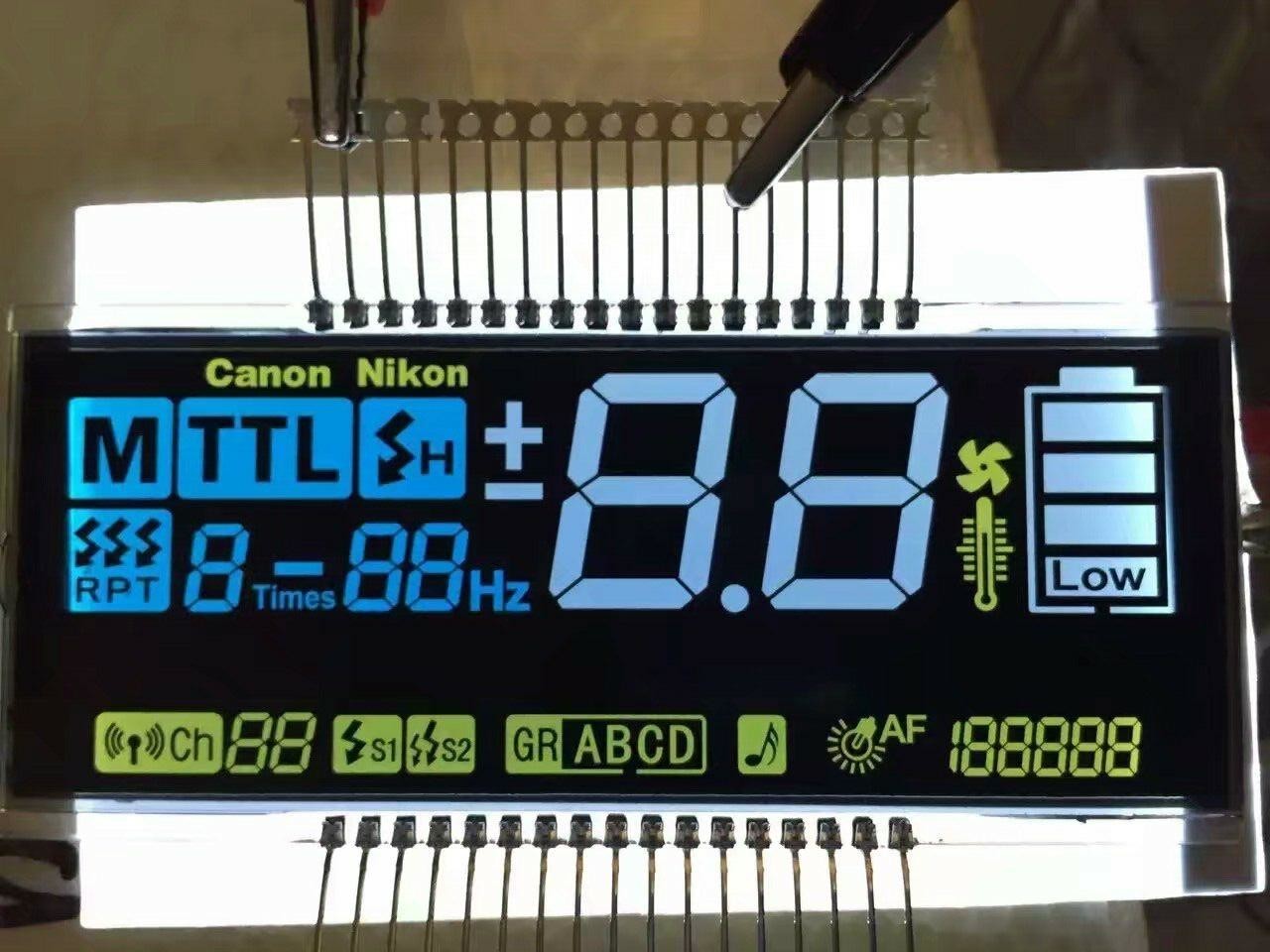

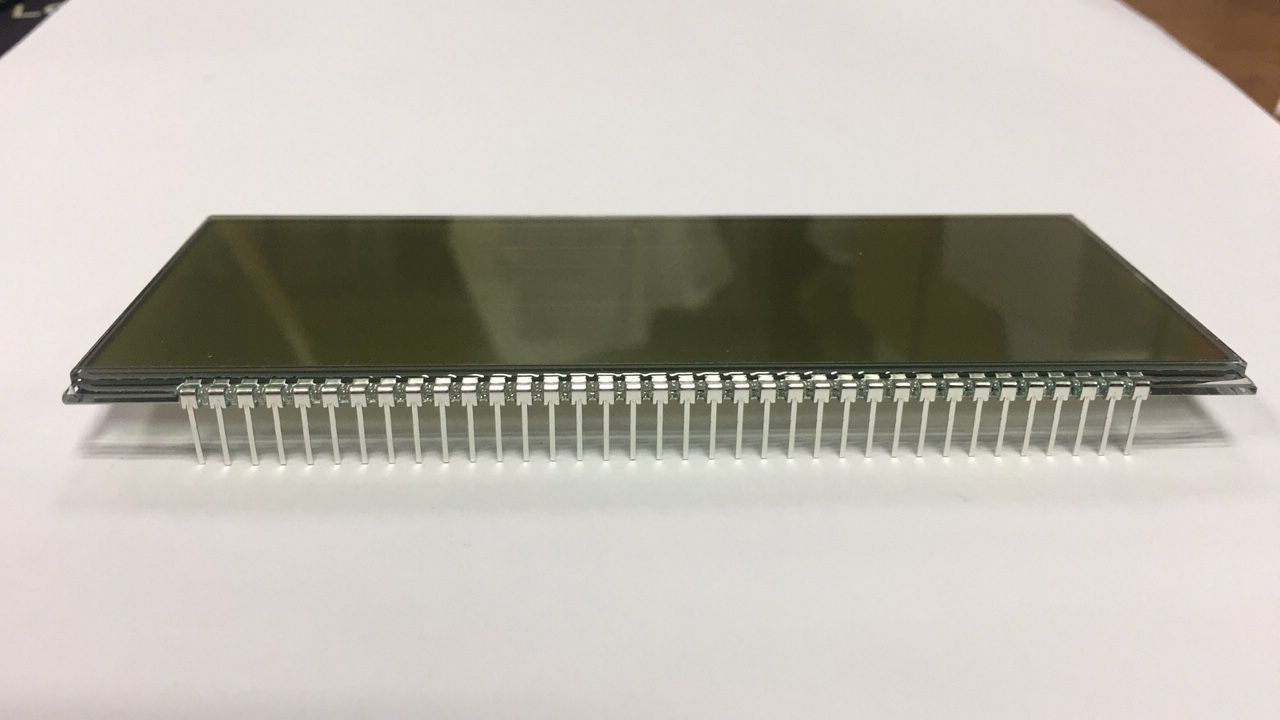

BBI Monochrome LCD Display HTN Positive Polarizer LCD Display 12 O'Clock

Product Description

Monochrome LCD Display HTN Positive Polarizer 102.00mm*34.50mm 12 O'Clock .

General Specification:

Display Type : HTN .

Display Modeġ Positive . Polarizer Mode: Transflective .

Driving MethodġVop 3.0 ēDuty 1/4ēBias 1/3 . Viewing Direction: 12 o’clock .

Display Color: Display Pixel: Black .(On Stage, Pixel Color)

Back Ground: gray .(Off stage,Display Color)

Mechanical Specification:

Item	Specifications	Unit
Dimensional Outline	102.00*34.50	mm
Viewing Area	99.00(L)MIN X 27.50(W)MIN	mm
PIN Pitch	2.54	mm
PIN Length	6.35	mm
Number of PIN	36	-----

Absolute maximum ratings:

No.	Item	Characteristic values			Unit	Remark
No.	Item	Min.	Typ.	Max.	Unit	Remark
1	Operating temperature range	-15	----	50	qC
2	Storage temperature range	-20	----	70	qC
3	AC voltage	----	----	10	V	1hr
4	DC voltage	----	----	3	V	1hr
5	Tolerable DC component	----	0	30	mV
6	Tolerable atmospheric pressure	86	----	106	kPa
7	Tolerable vibration	----	0	50	m/s2
