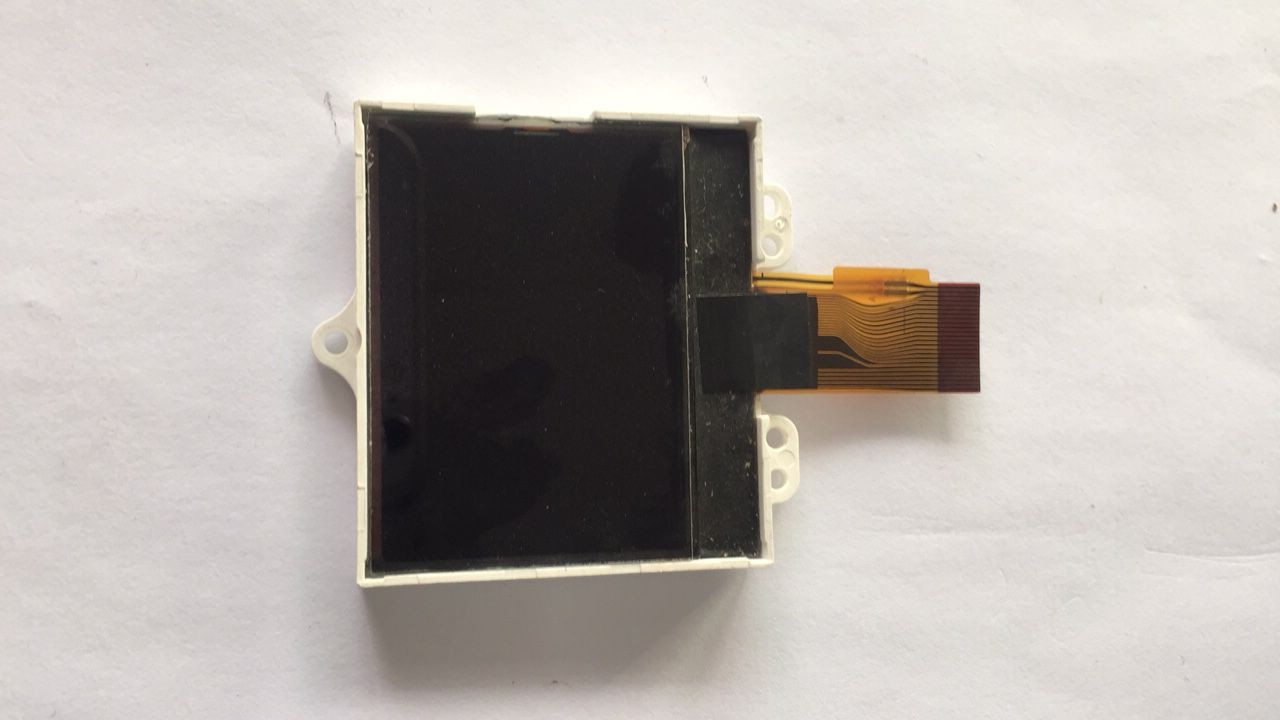

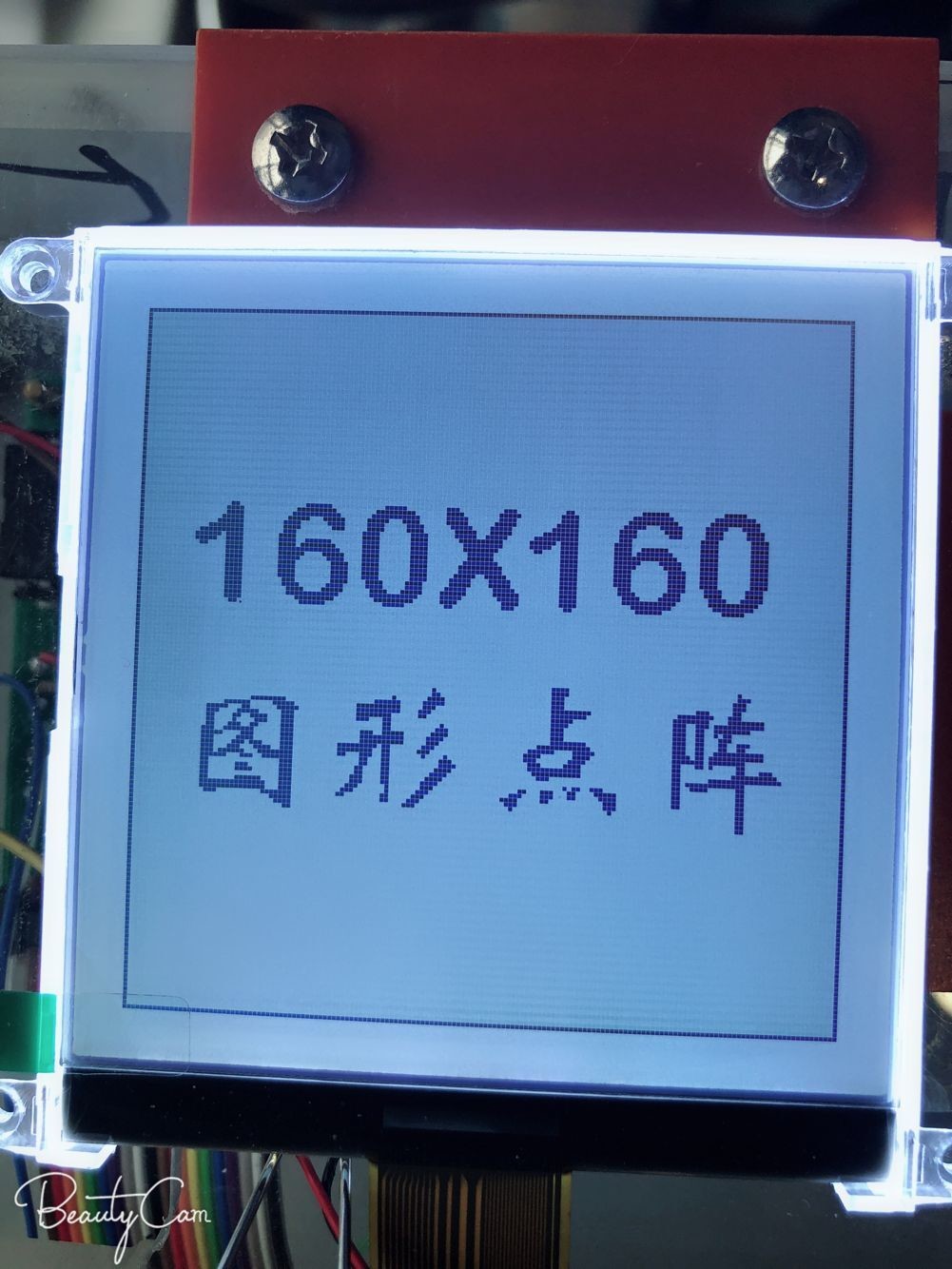

Transflecitve Positive Monochrome LCD Display 300cd/M2 6 O'Clock

ITEM

DESCRIPTION

UNIT

Outline Size(mm)

80.0(L)×72.5(W)×5.0(T) (Not Include Connector)

mm

LCD Type

FSTN, Transflecitve/Positive,1/160Duty,1/10Bias

---

Display Type

160×160 dots

---

View Area

60.00×60.00

mm

Display Area

54.38×54.38

mm

Dots Size

0.32×0.32

mm

Dots Pitch

0.34×0.34

mm

Controller & Driver

UC1698U (COG)

---

View Direction

6 O’Clock

---

Interface Mode

8 bit 6800,8 bit 8080

---

VDD&VOP(Type)

3.3 V & 16.3 V

V

Backlight Color

White, 3.0V, 90mA

---

Operation Temp.

-20~+70

℃

Storage Temp.

-30~+80

℃

Pin No.

Pin Out

Description

1-2

NC

No connection.

3-4

VLCD

High voltage LCD Power Supply. When internal VLCD is used, connect these pins together. When external VLCD source is used, connect external VLCD source to VLCDIN, pins and leave VLCDOUT open.

5

VS+

LCD Bias Voltages. These are the voltage sources to provide SEG driving currents. These voltages are generated internally. Connect capacitors of CAX / CBX value between VAX+ / VBX+ and VAX– / VBX–, respectively.

6

VS-

7

VB0-

8

VB1-

9

VB1+

10

VB0+

11-12

VDD

Power supply for LCD circuit.

13-14

VSS

Ground

15

BM0

Bus Mode: The interface bus mode is determined by BM0 with the following relationship:

16

CS0

Chip Selection. Chip is selected when CS0 = “L”. When the chip is not selected, DB [7:0] will be high impedance.

17

A0(CD)

Selects Control data or Display data for read/write operation. In S9 mode, CD pin is not used. Connect to VSS when not used.

”L”: Control data        ”H”: Display data

18

WR1(RD)

WR[1:0] control the read/write operation of the host interface. See section Host Interface for more detail.

In parallel mode, the meaning of WR[1:0] depends on whether the interface is in the 6800 mode or the 8080 mode. In serial interface modes, these two pins are not used, connect them to VSS.

19

WR0(WR)

20

RST

When RST=”L”, all control registers are re-initialized by their default states. Since UC1698u has built-in Power-ON reset and software reset commands, RST pin is not required for proper chip operation.

An RC Filter has been included on-chip. There is no need for external RC noise filter.  When RST is not used, connect the pin to VDD.

21

DB0

Bi-directional bus for parallel host interface.

22

DB1

23

DB2

24

DB3

25

DB4

26

DB5

27

DB6

28

DB7
