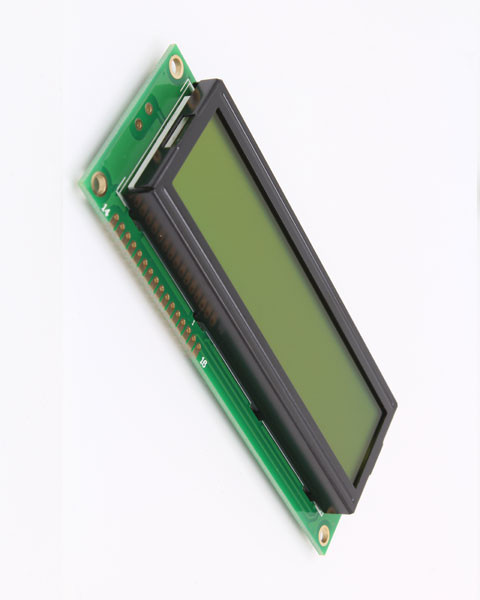

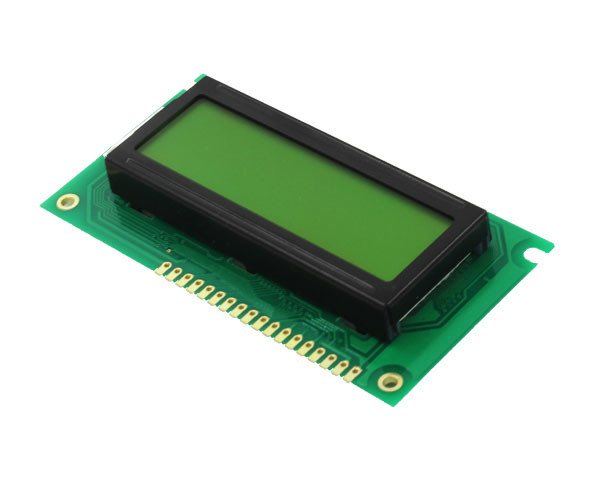

Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen

1000
MOQ
DISCUSSABLE
Price
Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Polarzer Mode: Transflective
Display Resolution: 160x128 Pexels
Contrast Ratio: Varies Depending On Model
Duty: 1/128DUTY
Lcd Connector: COG+FPC
Controller: T6963C
Highlight:

Transflective Monochrome LCD Display

,

Monochrome LCD Display 160X128

,

160X128 Dot Matrix LCD Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: BBI-F-FRB-160128A_spec.pdf
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen

General Specification:

1          FEATURES

(1)   Display format : 160 ´ 128 dot-matrix ; 1/ 128 duty.

(2)   Construction : LCD, Bezel, Zebra and PCB.

(3)   Optional Edge LED or EL back-light.

(4)   Controller : T6963C.

(5)   5V single power input. Built-in DC/DC converter for LCD driving.

(6)   Normal / Extended temperature type.

2          MECHANICAL DATA

 Parameter

Standard Value

Unit

Dot size

0.54 (W) ´ 0.54(H)

mm

Dot pitch

0.58(W) ´ 0.58(H)

mm

Viewing area

101.0(W) ´ 82.2(H)

mm

Module size       (w/ LED back-light)

129.0(W) ´ 102.0(H) ´ 18.0 max (T)

mm



3          ABSOLUTE MAXIMUM RATINGS

Parameter

Symbol

Min

Max

Unit

Logic Circuit Supply Voltage

VDD-VSS

-0.3

5.0

V

LCD Driving Voltage

VDD-VO

-0.3

16.0

V

Input Voltage

VI

-0.3

VDD+0.3

V

Normal temp. type

Operating Temp.

TOP

0

50

°C

Storage Temp.

TSTG

-10

60

°C

Extended temp. type

Operating Temp.

TOP

-20

70

°C

Storage Temp.

TSTG

-30

80

°C




Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 0


Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 1          Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 2



Transflective Monochrome LCD Display 160X128 Dot Matrix LCD Screen 3






List of Exiting COB LCD Modules:

Model

Content
CharsXLines

Module size
W x H(mm)

View area
W x H(mm)

Dot size
W x H(mm)

Character size W x H(mm)

iving Method

Controller LSI or Equiv

IC
Package

STN-TYPE

FSTN-TYPE

8D-C0802A

8X2

84.0X44.0

63.0X25.0

1.15X1.36

6.07X11.56

1/16

S6A0069

COB

Y

Y

8D-C0802B

8X2

58.0X32.0

38.0X16.0

0.56X0.66

2.95X5.56

1/16

S6A0069

COB

Y

Y

8D-C1202A

12X2

55.7X32.0

46.7X17.5

0.45X0.6

2.65X5.5

1/16

S6A0069

COB

Y

Y

8D-C1601A

16X1

80.0X36.0

64.5X13.8

0.55X0.65

3.2X5.95

1/16

S6A0069

COB

Y

Y

8D-C1601B

16X1

122.0X33.0

99.0X13.0

0.92X1.1

4.84X8.06

1/16

S6A0069

COB

Y

Y

8D -C1601C

16X1

80.0X36.0

64.5X13.8

0.6X0.7

3.2X8.2

1/11

S6A0069

COB

Y

Y

8D -C1601D

16X1

85.0X28.0

65.0X16.0

0.55X0.75

3.07X6.56

1/16

S6A0069

COB

Y

Y

8D -C1601E

16X1

80.0X36.0

64.5X13.8

0.55X0.75

3.07X6.56

1/16

S6A0069

COB

Y

Y

8D -C1602A

16X2

80.0X36.0

64.5X13.8

0.55X0.5

2.95X4.35

1/16

S6A0069

COB

Y

Y

8D -C1602B

16X2

122.0X44.0

99.0X24.0

0.92X1.1

4.84X9.66

1/16

S6A0069

COB

Y

Y

8D -C1602C

16X2

80.0X36.0

64.5X15.5

0.55X0.66

2.96X5.56

1/16

S6A0069

COB

Y

Y

8D -C1602D

16X2

84.0X44.0

64.5X15.5

0.55X0.66

2.96X5.56

1/16

S6A0069

COB

Y

Y

8D -C1602E

16X2

85.0X36.0

64.5X15.5

0.56X0.66

2.96X5.56

1/16

S6A0069

COB

Y

Y

8D -C1602F

16X2

72.0X36.0

64.5X15.5

0.56X0.66

2.96X5.56

1/16

S6A0069

COB

Y

Y

8D -C1604A

16X4

87.0X60.0

62.0X25.6

0.55X0.55

2.95X4.75

1/16

S6A0069

COB

Y

Y

8D -C2001A

20X1

116.0X37.0

83.0X18.6

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2002A

20X2

98.0X60.0

83.0X18.6

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2002B

20X2

116.0X37.0

83.0X18.6

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C200C

20X2

146.0X43.0

123.0X23.0

0.92X1.1

0.98X1.17

1/16

S6A0069

COB

Y

Y





List of Exiting COB LCD Modules:





Model

Content
 (W X H)

Module size
W x H(mm)

View area
W x H(mm)

Dot size
W x H(mm)

Dot pitch
W x H(mm)

Driving Method

Controller LSI or Equiv

IC
Package

STN-TYPE

FSTN-TYPE

8D -C2004A

20X4

98.0X60.0

76.0X25.2

0.55X0.55

2.95X4.75

1/16

S6A0069

COB

Y

Y

8D -C2004B

20X4

77.0X47.0

60.0X22.0

0.42X0.46

2.3X4.03

1/16

S6A0070

COB

Y

Y

8D -C2004C

20X4

146.0X62.5

123.5X43.0

0.92X1.1

4.84X9.22

1/16

S6A0069

COB

Y

Y

8D -C2402A

24X2

118.0X36.0

93.5X16.0

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2402B

24X2

208.0X40.0

178.0X23.0

1.16X1.16

6.0X9.63

1/16

S6A0069

COB

Y

Y

8D -C4001A

40X1

182.0X33.5

154.4X16.5

0.6X0.75

3.2X6.35

1/16

S6A0069

COB

Y

Y

8D -C4002B

40X2

182.0X33.5

154.4X16.5

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D C4004A

40X4

190.0X54.0

147.0X29.5

0.5X0.55

2.78X4.89

1/16

S6A0069

COB

Y

Y

8D -G12232A

122X32

84.0X44.0

60.0X18.5

0.4X0.4

0.44X0.44

1/32

SED1520

COB

Y

Y

8D -G12232B

122X32

80.0X36.0

55.0X18.5

0.36X0.41

0.4X0.45

1/32

SED1520

COB

Y

Y

8D -G12232C

122X32

98.0X60.0

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12232D

122X32

80.2X47.4

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12864A

128X64

78.0X70.0

62.0X44.0

0.39X0.55

0.44X0.6

1/64

S6B0108A

COB

Y

Y

8D -G12864B

128X64

105.0X60.5

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864C

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864D

128X64

113.0X65.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864E

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

ST7920

COB

Y

Y

8D -G19264A

192X64

130X65.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G19264B

192X64

120X62.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G24064B

240X64

180.0X65.0

132.0X39.0

0.53X0.53

0.49X0.49

1/64

T6963C

QFP/COB

Y

Y

8D -G240128A

240X128

144X104

114X64

0.4X0.4

0.45X045

1/128

T6963C

QFP/COB

Y

Y
