6 O'clock Monochrome LCD Panel, Dot Matrix LCD Display 160x128
A high-performance monochrome dot matrix LCD display module featuring 160×128 resolution with optimal 6 o'clock viewing direction, designed for industrial and instrumentation applications.
General Specification
Features
- Display format: 160×128 dot-matrix; 1/128 duty
- Construction: LCD, Bezel, Zebra and PCB
- Optional Edge LED back-light
- Controller: T6963C or equivalent
- 5V single power input with built-in DC/DC converter for LCD driving
- Extended temperature type available
Mechanical Data
| Parameter |
Standard Value |
Unit |
| Dot size |
0.54 (W) × 0.54(H) |
mm |
| Dot pitch |
0.58(W) × 0.58(H) |
mm |
| Viewing area |
101.0(W) × 82.2(H) |
mm |
| Module size (w/ LED back-light) |
129.0(W) × 102.0(H) × 14 max (T) |
mm |
Absolute Maximum Ratings
| Parameter |
Symbol |
Min |
Max |
Unit |
| Logic Circuit Supply Voltage |
VDD-VSS |
-0.3 |
5.0 |
V |
| LCD Driving Voltage |
VDD-VO |
-0.3 |
16.0 |
V |
| Input Voltage |
VI |
-0.3 |
VDD+0.3 |
V |
| Normal temp. type - Operating Temp. |
TOP |
0 |
50 |
°C |
| Normal temp. type - Storage Temp. |
TSTG |
-10 |
60 |
°C |
| Extended temp. type - Operating Temp. |
TOP |
-20 |
70 |
°C |
| Extended temp. type - Storage Temp. |
TSTG |
-30 |
80 |
°C |

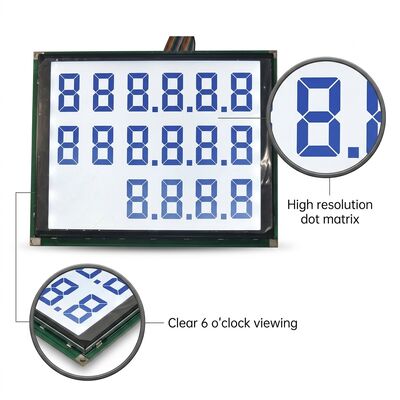

This 160×128 monochrome dot matrix LCD panel features 6 o'clock viewing direction, providing optimal contrast and readability when viewed from below the screen. The display is ideal for applications requiring wall-mounted installation or equipment scenarios where users look upward at the display.
Product Core Characteristics
The 6 o'clock viewing direction ensures maximum contrast when viewing from below, making it perfect for wall-mounted instruments and handheld terminals. Using monochrome dot matrix technology with STN or FSTN processes, the display supports graphics and character content including 10×8 grid of 16×16 dot matrix Chinese characters, as well as simple curves and icons.
Key Technical Parameters
Driven by mature ICs such as T6963C or UC1638, the module supports parallel or SPI serial interfaces for microcontroller compatibility. Operating at 5V with duty cycle of 1/128 and bias of 1/12, it provides stable display performance suitable for industrial environments.
Core Advantages
- Significantly lower power consumption compared to color TFT displays
- Simple structure and drivers with high cost-effectiveness
- Excellent readability in various lighting conditions with strong anti-interference performance
Product Structure
Supplied as a complete LCD module (LCM) integrating liquid crystal panel, driver IC, backlight unit, PCB, and interface pins. Features standard 30-pin connectors with 0.5mm pitch for easy integration with industrial control systems.
Typical Applications
- Industrial control and automation equipment
- Instrumentation and measurement devices
- Medical monitoring equipment
- Smart home and metering equipment
- Vehicle-mounted and IoT terminals
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size modifications or display content changes, we'll create new tooling for custom LCD glass modules.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can change the display type according to your request.
I want customize a new LCD module. Can you do?
Yes, we can customize LCD modules. Please send your drawing or provide specifications including outline size, display information, glass thickness, polarizer, display type, connector mode, temperature ratings, supply voltage, viewing direction, and drive conditions.
What is leading time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing upon drawing approval.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Leading Time?
For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days. We'll notify you if we can complete earlier.
