Home /Products/Round TFT LCD Display/2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology

2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology

1000
MOQ
0.7-7USD
Price
2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology
Features Gallery Product Description Chat Now
Features
Specifications
Interface:: 3line SPI + 18bit RGB
View Direction: Free
Lcd Type: AMOLED , Normally Black
Working Temperature: -20℃~70℃
Surface Luminancee: 250nits
Port: Shenzhen/Hong Kong
Name: Round TFT LCD Display
Highlight:

Round TFT LCD Display Module

,

Round Display TFT LCD Screen

,

18bit RGB LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.1 Inch ST7701S Round TFT LCD Display Module
High-performance 18-bit RGB LCD display module with circular design for industrial and consumer applications
Technical Specifications
Size 2.1" TFT Dot Arrangement 480 × 480
Display Mode IPS / Transmissive / Normally Black Module Size 56.18(W) × 59.71(H) × 2.3(T) mm
Active Area φ53.28 mm Brightness 250 cd/m²
Interface 3-line SPI + 18-bit RGB Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C Contrast Ratio 900:1
Colors 262K NTSC Color Gamut 70%
Viewing Angle 80° (all directions) Backlight Life 40,000 hours
Product Features
Compact Design
Circular form factor with minimal footprint for easy integration into small devices
High Resolution
480 × 480 pixel density for sharp, clear image quality
Advanced Interface
ST7701S controller supports 18-bit RGB and 3-wire SPI interfaces
Wide Temperature Range
Reliable operation from -20°C to +70°C
Touch Screen Options
Supports custom resistive or projected capacitive touch screens
IPS Technology
Wide viewing angles with consistent color and brightness
Application Areas
Consumer Electronics
Smart wearables, home appliances, portable audio-visual devices
Industrial Control
Analyzers, detectors, access control systems, monitoring devices
Internet of Things
Garden irrigation controllers, smart home interfaces
Medical Devices
Portable blood glucose testers, blood oxygen meters
Security Systems
Alarm devices, monitoring terminals

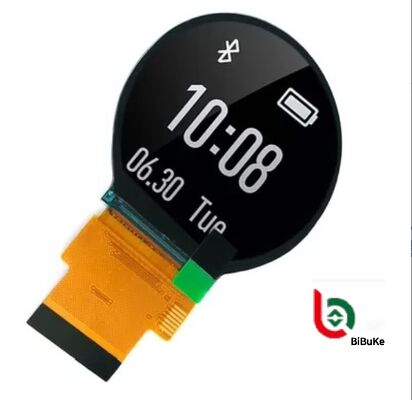

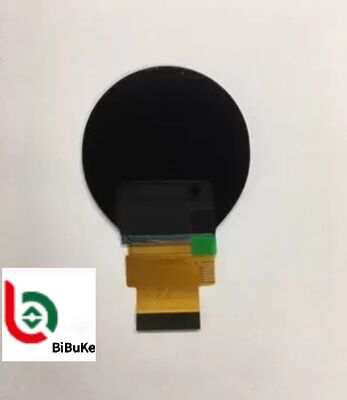

Product Images
2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology 0 2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology 1
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Custom packaging available based on product size and customer requirements.
2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology 2
Shipping: DHL, FedEx, EMS, UPS, air shipping, sea shipping. All shipping methods available.
2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology 3
Payment Methods
2.1 Inch ST7701S Round TFT LCD Display Module with 480x480 Resolution and 18bit RGB Interface Using IPS Display Technology 4
Frequently Asked Questions
  • Can you customize LCD displays? Yes, we can customize based on your specifications or samples.
  • What about different display types? We can modify from HTN to STN types as requested.
  • What is the tooling lead time? Typically 15-25 days after drawing confirmation and payment.
  • Do you provide samples? Yes, sample orders are available for testing.
  • What is the production lead time? 1 day for stock items, 15-30 days for mass production.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom printing and model numbering available
  • Competitive shipping rates with major carriers
  • Professional technical support and after-sales service
  • Comprehensive quality inspection before shipment
  • 24-hour customer support response time
  • Full customization capabilities for all LCD display requirements
