1.6 Inch 400 X 400 RGB 8 BIT Interface Round TFT LCD Display with High Resolution

1000
MOQ
DISCUSSABLE
Price
1.6 Inch 400 X 400 RGB 8 BIT Interface Round TFT LCD Display with High Resolution
Features Gallery Product Description Chat Now
Features
Specifications
LCM Interface: RGB 8 BIT Interface
LCD Type: Normally Black
Touch Ic: ST1624i
Number Of Pixel: 400 × 400 Pixels
Commodity: 1.6 Inch Round TFT LCD Display
Operating Temp: -20℃~ + 70℃
Viewing: All O'clock
Ltps Glass Outline: 53.3*53.3*3.19
Highlight:

1.6 Inch Round TFT LCD Display

,

400 X 400 Resolution Round TFT LCD Display

,

RGB 8 BIT Interface Round TFT LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
1.6 Inch 400 X 400 RGB Interface Round TFT Screen LCD Module Display
1.6 Inch 400 X 400 RGB Interface Round TFT Screen LCD Module Display
Technical Parameters
ITEM Standard value Unit
size 1.6 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 400*3RGB(H)X400(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.0996 mm
Active area Φ39.84 mm
Mechanical OutlineSize(W*H*T) 53.3*53.3*3.19 mm
Viewing direction ALL O'CLOCK -
LCM Driver IC ST77903 -
LCM interface RGB 8 BIT Interface -
Lcm pin count 21
Backlight leds 3 pcs
Backlight current 60 mA
Backlight voltage 3.2 V
Operating temperature -20+70 ℃
Storage temperature -30+80 ℃
Lumens degrees 350 cd/㎡
Features
  • Product Name: Round TFT LCD
  • Active area: 39.84(H) * 39.84(V)
  • IC/LCM Driver IC: ST77903
  • Pixel arrangement: RGB Stripe
  • Drive element: TFT Active Matrix
  • Viewing direction: ALL O'CLOCK
  • Round TFT Liquid Crystal Display
  • Circular TFT LCD
  • Round TFT LCD Module
  • Circular LCD Screen
  • Active Matrix Display

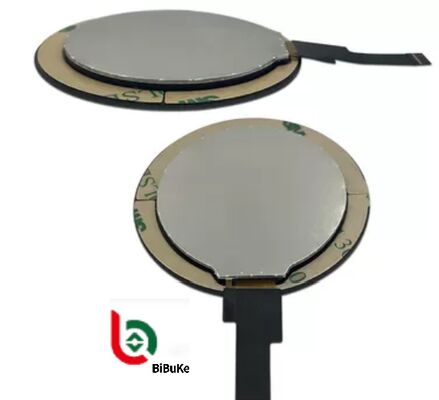

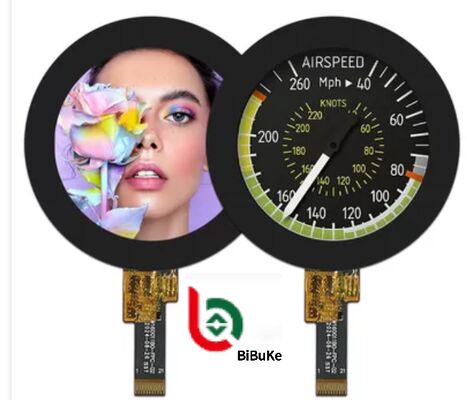

1.6 Inch 400 X 400 RGB 8 BIT Interface Round TFT LCD Display with High Resolution 0 1.6 Inch 400 X 400 RGB 8 BIT Interface Round TFT LCD Display with High Resolution 1
The 1.6-inch 400×400 RGB interface round TFT screen liquid crystal module is a small circular color liquid crystal display component with high resolution and excellent color performance.
Key Specifications
  • Dimensions: Diagonal size is 1.6 inches, with an effective display area diameter of approximately 39.84mm
  • Resolution: 400×400 pixels, providing clear image display
  • Interface type: RGB interface compatible with various microcontrollers and development boards
  • Brightness: Approximately 300cd/m² with contrast ratio of 800:1
  • Viewing angle: IPS full viewing angle (80°/80°/80°/80°)
  • Operating temperature: -20℃ to 70℃ (some models support -30℃ to 80℃)
Display Principle
The TFT screen precisely controls each pixel through a thin-film transistor array. The LED backlight emits white light diffused by the light guide plate. The liquid crystal layer changes molecular arrangement under voltage control, adjusting light transmission intensity. The RGB color filter decomposes light into primary colors to form full-color images.
Application Fields
  • Smart wearable devices: Smart watches and bands displaying time, health data, and notifications
  • Smart home devices: Control panels for appliances showing menus and operating status
  • Vehicle displays: Dashboards and multimedia systems showing speed, navigation, etc.
  • Instrumentation: Electronic thermometers and smart meters displaying measurement data

1.6 Inch 400 X 400 RGB 8 BIT Interface Round TFT LCD Display with High Resolution 2

Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we'll recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can change the type as per your request.
I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper or provide outline size, display information (glass thickness, polarizer, display type, connector mode, storage temp, operating temp, supply voltage, viewing direction, drive condition).
What is leading time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling payment. We'll provide exact timing upon drawing confirmation.
Can you send us samples for checking?
Answer: Yes, sample orders are available.
What is the Leading Time?
Answer: For standard products in stock, 1 day after payment. For special mass production, about 15-30 days. We'll inform you if we can finish earlier.
