Features

Specifications

Pins Number: 13Pins

Size: 0.96inch

Resolution: 128 X 64

Va Size: 11.86 (W) X 22.74(H) Mm

Touchscreen: No

Active Area: 10.86 (W) X 21.74(H) Mm

Fpc Connect: 13PIN, Soldering

Colors: White

Highlight:

0.96 Inch OLED Screen

128x64 Dots OLED Display

13PIN Soldering FPC SH1107 Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

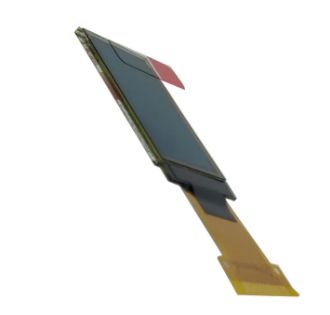

Vertical Type 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC

Product Description

Vertical Type 0.96 Inch OLED Screen 128x64 Dots SH1107 13PIN Soldering FPC

A 0.96-inch OLED display with the SH1107 driver is a popular small OLED display, frequently used in microcontroller projects. It offers similar functionality to displays using other controllers like SSD1306, with differences in communication and display handling.

Key Features

Driver IC: SH1107 controller
Resolution: 128*64 pixels
Display Type: Monochrome (black and white) OLED
Size: 0.96 inches diagonally
Communication Protocol: Typically uses I2C or SPI (I2C more common)
Interface: Compatible with both I2C and SPI interfaces

Detailed Specifications

Display Mode	OLED (Organic Light Emitting Diode)
Color	White
Size	0.96 inch
Dot Matrix	64*128 Pixels
Module Size	14.0(W)28.0(H)1.227(D) mm
View Area	11.86(W)*22.74(H) mm
Active Area	10.86(W)*21.74(H) mm
Dot Size	0.15(W)*0.15(H) mm
Dot Pitch	0.17(W)*0.17(H) mm
Drive IC	SH1107
Interface	4-wire serial, I2C
FPC Connector	13PIN, soldering
Voltage	VDD=1.65~3.3V, Vin=8.5~9.5V
Viewing Angle	160°

Applications

Smart Wearable Devices

Ideal for smart watches and bracelets, with vertical design and small size suitable for wrist wear. The 128*64 resolution clearly displays health data and notifications, while low power consumption extends battery life.

Smart Home Devices

Used in control panels and sensor devices, displaying environmental data in real time with high contrast visibility in various lighting conditions.

Instrumentation

Suitable for portable instruments like multimeters and gas detectors, providing clear measurement data display and enhancing portability.

Consumer Electronics

Used in music players, electronic dictionaries, and game consoles, offering clear display interfaces and compact product integration.

Industrial Control

Applied in automation controllers and indicator panels, displaying operational status and fault information with stable performance in industrial environments.

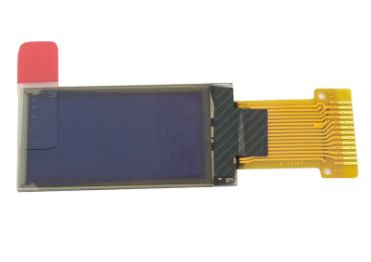

Vertical Type 0.96 Inch OLED Screen 128x64 Dots SH1107 Display with 13PIN Soldering FPC 2
