3.97 Inch Sunlight Readable IPS TFT LCD Display with 480x800 Resolution and MCU 16Bit Interface

1000

MOQ

DISCUSSABLE

Price

Features Gallery Product Description Chat Now

Features

Specifications

Backlight: Low Power Consumption

Interface: MCU16 Bit

Type: TFT, TFT LCD

Pixel Pitch: 480x800

Outline Mm: 57.86*97.70*3.93MM

Viewing Angle: 12'Oclock

Backlight Type: LED

Touch Type: With/without RTP/ With CTP

Highlight:

3.97 Inch IPS TFT LCD Display

480x800 Resolution TFT LCD Display

MCU 16Bit Interface LCD Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

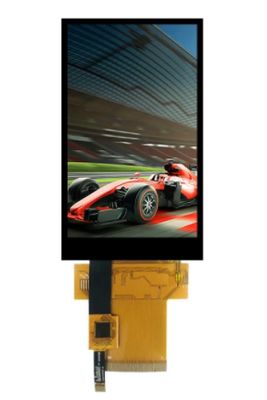

3.97 Inch Sunlight Readable IPS TFT LCD Display with 480x800 Resolution and MCU 16Bit Interface

Product Description

3.97" Sunlight Readable LCD Display 480×800 MCU 16Bits Interface

High-performance 3.97-inch sunlight readable LCD display with 480×800 resolution and MCU 16-bit interface, designed for optimal visibility in bright environments.

Product Specifications

Display Size	3.97 Inch
Resolution	480RGB × 800
Angle Of View	12' O Clock
Interface	MCU16 Bit
Driver IC	NT35510

LCM Dimensions	57.14 × 96.85 × 2.30mm
CTP Dimensions	57.86 × 97.70 × 1.38mm
Assembly Dimensions	57.86 × 97.70 × 3.93mm
Display Area	51.84(H) × 86.40(V)mm
Pixel Size	0.108 × 0.108mm
LCD Type	TFT; Transmissive Normal white
Assembly Method	COG+FPC+BL
Backlight Type	8 Dies LED

Key Applications

1. Industrial Control and IoT Terminals

Ideal for industrial equipment operating in bright environments, including status monitoring screens for PLC control cabinets, sensor terminals, and IoT nodes like weather stations and soil moisture monitors. The 16-bit interface directly matches microcontroller parallel data requirements.

2. Outdoor Portable Electronic Devices

Perfect for handheld GPS devices, outdoor multimeters, and delivery terminals where sunlight visibility is crucial. The 3.97-inch size balances portability with display area, while low power consumption extends battery life.

3. Intelligent Transportation and Vehicle Equipment

Excellent for truck dashboards, EV displays, and parking payment terminals. Sunlight readability prevents washout in direct light, while the 16-bit interface ensures fast response with vehicle microcontrollers.

4. Consumer Electronics and Smart Home

Suitable for smart home control panels and portable appliances requiring microcontroller control and outdoor visibility, such as balcony switch screens and camping equipment displays.

3.97 Inch Sunlight Readable IPS TFT LCD Display with 480x800 Resolution and MCU 16Bit Interface 2
