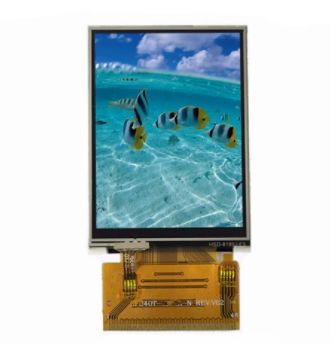

2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature

1000
MOQ
0.7-7USD
Price
2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 4 White LED Backlight and -20°C to 70°C Operating Temperature
Features Gallery Product Description Request A Quote
Features
Specifications
TFT Mode: TFT, Transmissive
Storage Temperature: -30°C To 80°C
Back Light: Four White LED
Origin: China
Active Area: 36.72mm×48.96mm
Display Ic: ST7789V
Lcm Luminance: 180
Interface: COF
Highlight:

240x320 Resolution TFT LCD Touch Screen

,

4 White LED Backlight TFT Display Module

,

-20°C to 70°C Operating Temperature LCD Touch Panel
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.4 Inch Liquid Crystal TFT LCD Touch Screen Module 180Cd/M² Brightness
2.4 Inch TFT LCD Touch Screen Module front view 2.4 Inch TFT LCD Touch Screen Module side view 2.4 Inch TFT LCD Touch Screen Module technical diagram
Key Specifications
Resolution 240 × 320
Size 2.4 Inch
Viewing Direction 12 O'clock
TFT Mode TFT, Transmissive
Outline Size 42.72mm (W) × 60.26mm (L) × 2.6mm (T)
Brightness 180Cd/m²
Technical Details
Item Nominal Dimension Unit
Dot Matrix 240 x RGB x 320 Dots
Module Size (W×H×T) 42.72 × 60.26 × 2.6 mm
Dot Pitch (W×H) 0.153 × 0.153 mm
Interface COF -
Driving IC Package COG, I2C -
Operating Temperature -20 ~ 70 ºC
Storage Temperature -30 ~ 80 ºC
IC Drive ST7789V -
LCD Mode TN/Normal White -
Backlight Type 4 White LEDs in Parallel PCS
Product Overview
The 2.4-inch TFT liquid crystal touch screen module is a compact display solution with 180Cd/m² brightness, ideal for indoor applications. Its thin profile (under 3mm) and light weight make it suitable for portable devices.
Key Features
  • Display Technology: TFT (Thin Film Transistor) with independent pixel switches for high-speed refresh and precise color control
  • Resolution: 240×320 (QVGA) provides excellent clarity for information display and graphical interfaces
  • Brightness: 180Cd/m² ensures clear visibility in typical indoor lighting conditions
  • Viewing Angle: Approximately 50° vertical and 70° horizontal without IPS material
  • Interface Options: Supports SPI, 8080 parallel port for easy microcontroller integration (STM32, ESP32, etc.)
  • Touch Options: Available in resistive (pressure sensing) or capacitive (multi-touch support) variants
  • Temperature Range: Operates from -20°C to +70°C with storage up to -30°C to 80°C
Applications
This versatile display module is widely used in portable devices, industrial control systems, medical instruments, and smart home applications including:
  • Smart locks and access control systems
  • Handheld detectors and measurement devices
  • Medical monitoring equipment (blood pressure monitors, etc.)
  • Electronic photo frames and information displays
