Home /Products/TFT LCD Touch Screen/2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 6 O'clock Viewing Direction and 180Cd/M2 Brightness

2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 6 O'clock Viewing Direction and 180Cd/M2 Brightness

1000
MOQ
0.7-7USD
Price
2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 6 O'clock Viewing Direction and 180Cd/M2 Brightness
Features Gallery Product Description Chat Now
Features
Specifications
Backlight Type: White LED
Dot Pitch ( W×H ): 0.153 (H) X 0.153 (V)
Driver Ic: ST7789V Or ILI9341V
Size: 2.4inch
Module Size: 42.72 (W) X 60.26 (L) X 2.6 (T)
LCD Mode: TN/IPS/Normal White
Display Type: TFT LCD
Interface: MCU Or SPI
Highlight:

240x320 Resolution TFT LCD Touch Screen

,

6 O'clock Viewing Direction TFT Display

,

180Cd/M2 Brightness LCD Touchscreen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.4" TFT Display SPI Interface Display with ST7789 TFT LCD Resistive Touchscreen
Key Specifications
Resolution 240 × 320
Size 2.4 Inch
Viewing Direction 6 O'clock
TFT Mode TFT, Transmissive
Outline Size 42.72 mm (W) × 60.26 mm (L) × 2.6 mm (T)
Brightness 180 Cd/M²
Technical Parameters
Item Nominal Dimension Unit
Dot Matrix 240 x RGB x 320 Dots
Module Size (W×H×T) 42.72 (W) × 60.26 (L) × 2.6 (T) mm
Dot Pitch (W×H) 0.153 (H) × 0.153 (V) mm
Interface MCU or SPI -
Operating Temperature -20 ~ 70 ºC
Storage Temperature -30 ~ 80 ºC
IC Drive ST7789V or ILI9341V -
LCD Mode TN/IPS/Normal White -
Backlight Type 4 White LEDs in Parallel PCS

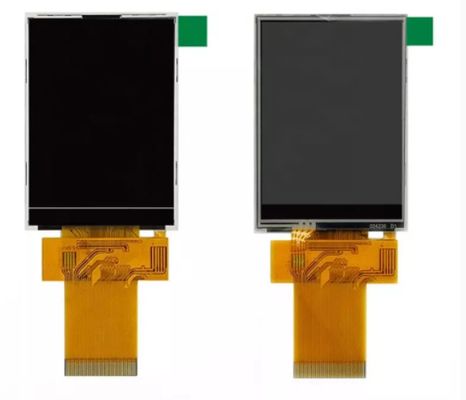

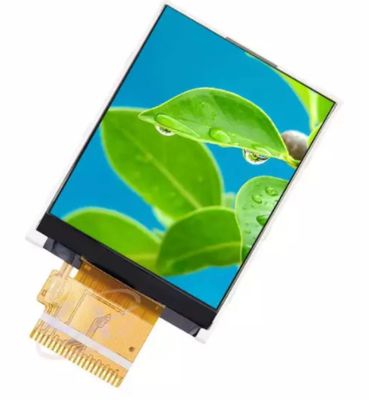

2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 6 O'clock Viewing Direction and 180Cd/M2 Brightness 0 2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 6 O'clock Viewing Direction and 180Cd/M2 Brightness 1
Product Features
  • High-quality display: 2.4-inch diagonal with 240×320 resolution and 16-bit color (65K or 16.7M colors)
  • Bright visibility: Brightness approximately 200-800 cd/m² (varies by model)
  • Wide temperature range: Operating temperature -20℃~+70℃, storage temperature -30℃~+80℃
  • SPI interface: 4-wire SPI (SCK, MOSI, MISO, CS) with optional DC, RST, and backlight control pins
  • Universal compatibility: Direct connection to STM32, Arduino, ESP32 and other microcontrollers
  • Advanced driver: ST7789/ST7789V chip supports high-speed refresh and color calibration
  • Resistive touch: Pressure-sensitive single-point touch that works with gloves
  • Compact design: Small form factor with FPC flexible ribbon cable for easy integration
  • Power efficient: Configurable rotation/mirror display with deep standby mode
Typical Applications
  • Industrial control equipment and smart home controllers
  • Instruments and meters for parameter setting and status monitoring
  • Handheld game consoles and mobile data terminals
  • STM32/ESP32/Arduino development and education
  • IoT device displays for sensor data visualization

2.4 Inch TFT LCD Touch Screen with 240x320 Resolution 6 O'clock Viewing Direction and 180Cd/M2 Brightness 2
