Industrial 3.5 Inch TFT LCD Screen with 640x480 Resolution 9 O'clock Viewing Direction and 400 Cd/m2 Brightness

1000
MOQ
0.7-7USD
Price
Industrial 3.5 Inch TFT LCD Screen with 640x480 Resolution 9 O'clock Viewing Direction and 400 Cd/m2 Brightness
Features Gallery Product Description Chat Now
Features
Specifications
Outline Size: 85 Mm ( L ) * 64 Mm ( W )
Operating Temperature: -20~+70℃
Screen Type: TFT
Product Type: TFT LCD Screen
Interface: RS232 / TTL
With /Without Touch Screen: RTP
Va Size: 79.7 Mm ( L ) * 53.28 Mm ( W )
Backlight Technology: LED
Highlight:

640x480 Resolution TFT LCD Screen

,

9 O'clock Viewing Direction TFT LCD Module

,

400 Cd/m2 Brightness TFT Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Industrial 3.5 Inch TFT LCD Resistive Touchscreen RS232 Interface With Driver Board
Product Specifications
Resolution 640 * 480
Size 3.5 Inch
Viewing Direction 9 O'clock
TFT Mode TFT, Transmissive
Detailed Product Information
ITEM CONTENT DESCRIPTION
1 Display outline size 85 mm ( L ) * 64 mm ( W )
2 VA size 79.7 mm ( L ) * 53.28 mm ( W )
3 Resolution 640 * 480 Dots
4 With /Without Touch screen RTP
5 Interface RS232 / TTL
6 Brightness 400 Cd / m2
7 MicroSD Card Interface SD/SDHC
8 Driver IC HX8363A

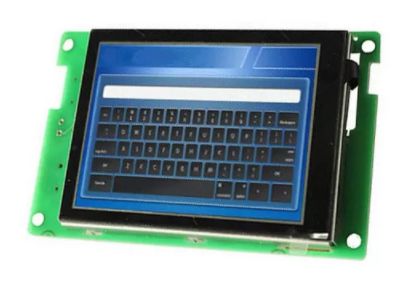

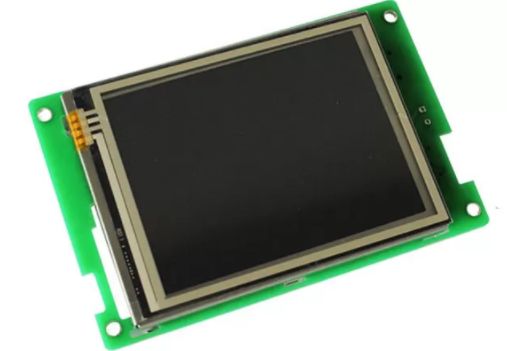

Industrial 3.5 Inch TFT LCD Screen with 640x480 Resolution 9 O'clock Viewing Direction and 400 Cd/m2 Brightness 0 Industrial 3.5 Inch TFT LCD Screen with 640x480 Resolution 9 O'clock Viewing Direction and 400 Cd/m2 Brightness 1
Display Screen Features
Display Performance
Common resolutions include 320*240 and 320*480. Some products feature higher brightness up to 1000cd/m² for sunlight readability. Available in various color options including 16-bit color depth (RGB565 format) or 260K colors.
Physical Characteristics
Available in various sizes with resistive touch screen technology and industrial-grade durability. Example: touch screen surface hardness of AMZ035W01RA reaches 4H.
Interfaces and Electrical Characteristics
RS232 (UART) interface with 6-pin configuration. Features 8KV anti-static ESD protection. Operating temperature range: -20℃ to 70℃. Supply voltage options include 3.3V or 5.0V.
Driver Board Features
Integrated functions with stable performance and strong anti-interference. Includes backlight boost circuits and VGH/VGL/VCOM voltage circuits. Some models feature built-in processors.
Applications
  • Industrial control: Human-machine interface for automation equipment, parameter setting and status monitoring
  • Medical equipment: Display and operation interface for instruments like blood glucose meters and monitoring devices
  • Automotive field: In-vehicle display for information and navigation with anti-interference and wide temperature operation
  • Instrumentation: Display terminal for smart meters, controllers, showing real-time measurement data
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Please send your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
This LCD is what we want but too large. Do you have smaller sizes?
For segment type LCD modules requiring size or content modification, new tooling is required for custom LCD glass modules.
This LCD display is HTN type, but I want STN type. Can you make?
Yes, we can modify the display type according to your requirements.
I want to customize a new LCD module. Can you do this?
Yes, we can customize based on your specifications including outline size, display information, glass thickness, polarizer type, connector mode, and operating parameters.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
Can you send samples for checking?
Yes, sample orders are available for standard products.
What is the lead time?
Standard products: 1 day after payment. Custom production: 15-30 days. We'll update if completion is earlier than estimated.

Industrial 3.5 Inch TFT LCD Screen with 640x480 Resolution 9 O'clock Viewing Direction and 400 Cd/m2 Brightness 2
