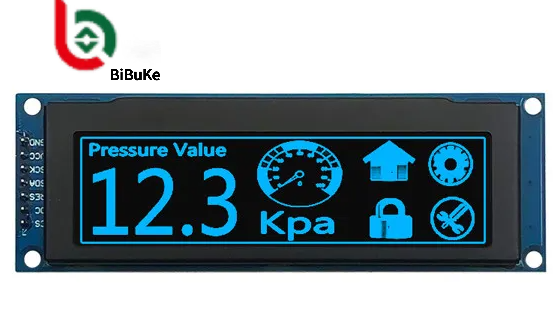

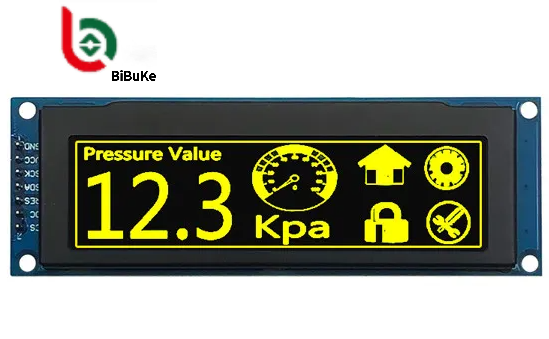

COF 256x64 OLED Display Module 3.12" Inch 16 Greyscale 3.3V Power
Product Specifications
| Product |
3.12" 256x64 COF OLED Display |
| Resolution |
256x64 Dots Resolution |
| Display Mode |
Passive Matrix |
| Interface |
4 Wires SPI Interface |
| Optics |
All Viewing Angles |
| Outline Dimensions |
100.5(L) X 33.5(W) X 6.3(T) mm |
| Active Area |
76.78(L) X 19.18(W) mm |
| Driving Method |
1/64 Duty Cycle |
| GreyScale |
16 Greyscale |
| Controller |
SSD1322U |
| Operating Temperature |
-30°C To +85°C |
| Storage Temperature |
-40°C To +90°C |
| Font Color |
White/Blue/Yellow/Green |
| Supply Voltage |
3V |
Product Features
- 256 x 64 pixel resolution for clear graphics and text display
- Ultra-wide viewing angle exceeding 160 degrees
- Low power consumption: 0.04W normal operation, 0.08W full screen
- Compatible with Arduino Mega, Raspberry Pi, 51 MCU, STM32, and more
- Embedded driver IC requiring only 2 I/O ports for I2C interface communication
- Self-illuminating design with no backlight required
- High contrast ratio with bright, clear dots for excellent readability
- Available in four color options: blue, white, yellow, green
- Compatible with MMDVM, Pi-Star, and Raspberry Pi systems
Product Drawing
Technical Parameters
Size and Resolution: 3.12-inch diagonal with 256x64 pixel graphic dot matrix display. Effective display area measures approximately 76.78mm x 19.18mm.
Display Technology: OLED technology with self-illuminating characteristics, eliminating the need for backlight. Features high contrast and fast response speed.
Grayscale and Colors: 16 gray levels providing rich color gradations. Available in single colors including white, yellow, blue, and green.
Driver Chip: Built-in SSD1322 driver chip delivering high contrast ratio of 20,000:1 with comprehensive display functionality support.
Interface Method: Supports SPI and parallel interfaces for easy connection with various microcontrollers including Arduino, ESP32, and STM32.
Power Supply: Operates on 3.3V power supply with low power consumption. Compliant with RoHS standards.
Operating Temperature: Wide operating range from -40℃ to 85℃ for reliable performance in diverse environmental conditions.
