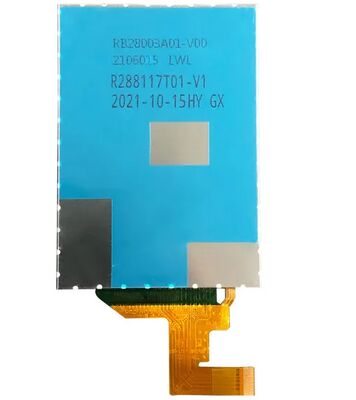

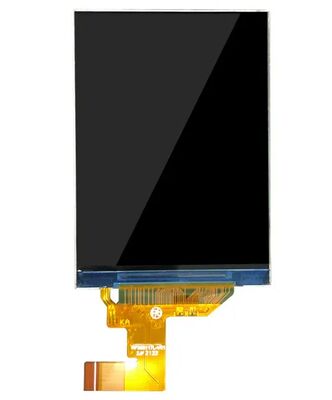

2.88 Inch 480x640 Resolution TFT LCD Touch Screen with 2 Lane MIPI Interface

This compact active-matrix TFT-LCD touch module (common models: SF-TO288AS-8983A-N, TTH288BVS series) features a transmissive IPS panel with a 2.88-inch diagonal size and 480×640 pixel resolution. Capable of displaying 16.7 million colors, it delivers rich color reproduction and wide viewing angles (85°/85°/85°/85°) while maintaining clarity without color distortion from any angle.

The panel typically pairs with a projection capacitive touch screen (PCAP) that supports multi-touch functionality, offering sensitive operation and enhanced durability.

Interface specifications include a 2-channel MIPI DSI standard with 21-pin FPC soft ribbon cable design. Compared to traditional RGB interfaces, MIPI provides lower power consumption, reduced electromagnetic interference, and simplified wiring, making it ideal for mobile and embedded applications. Operating voltage is typically 2.8V (range 2.4V-3.3V) with excellent power efficiency.

The module features a slim profile (approximately 1.6mm thickness), compact dimensions (46.2×65mm), high vibration resistance, and wide operating temperature range suitable for harsh industrial and outdoor environments. Complies with RoHS environmental standards.

• Portable Medical Equipment: Operating and display panels for handheld ECG monitors, blood oxygen meters, and small ultrasound diagnostic devices, clearly presenting data curves and parameters with touch control for quick function switching.
• Industrial Control and IoT Terminals: Small PLC panels, intelligent sensor displays, and handheld logistics tracking terminals providing stable status information display in complex environments with on-site touch input capability.
• Smart Wearables and Sports Equipment: Bicycle speedometers, outdoor watches, and portable navigators offering compact size, high brightness for sunlight readability, and MIPI low power consumption for extended battery life.
• Consumer Electronics and Embedded Devices: View screens for digital cameras, smart home control panels, educational devices, and portable POS machines balancing display clarity with touch interaction convenience.
• Automotive Electronics: Vehicle tire pressure monitoring displays and seat adjustment control panels maintaining stability in temperature-variable vehicle environments with intuitive display and simple operation.
