4.3-Inch 480x272 Resistive Touch IPS TFT LCD Display with All Viewing Angles

1000
MOQ
0.7-7USD
Price
4.3-Inch 480x272 Resistive Touch IPS TFT LCD Display with All Viewing Angles
Features Gallery Product Description Chat Now
Features
Specifications
Color Gamut: RGB
Pin Number: 40 PIN
Surface Luminance: 500 Cd/m2
Connect: ZIF FPC 46mm
Screen Type: TFT
Lcd Type: IPS
Operating Temp: -20℃ To +70℃
Size: 4.3 Inches
Highlight:

4.3-Inch TFT LCD Display

,

480x272 Resolution IPS TFT LCD

,

IPS All Viewing Angles Resistive Touch Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
4.3-Inch 480x272 Resistive Touch IPS TFT LCD Display
Technical Specifications
Product 4.3 Inch Resistive Touchscreen TFT
Resolution 480x272
Surface Luminance 500 Cd/m² (nits)
Viewing Direction IPS, All Viewing Angles
Interface RGB
Driver IC ST7283
Pin Number 40 Pins
Touch Screen Resistive Touch Panel (RTP)
Connection ZIF FPC 46mm
Operating Voltage 3.3V
Operating Temperature -20ºC to +70ºC
Storage Temperature -30ºC to +80ºC
LED Lifetime 40,000 Hours
Product Overview
This 4.3-inch resistive touch IPS TFT LCD module offers a practical and compatible small-sized display solution. The compact 4.3-inch design is ideal for portable devices, providing clear display of operation interfaces and data information without occupying excessive space.
Key Features
  • 480×272 WQVGA resolution with moderate pixel density
  • IPS technology for full-view display with minimal color deviation
  • Four-wire resistive touch screen compatible with fingers, gloves, and stylus
  • Resistant to oil, dust, and wear for industrial environments
  • RGB parallel interface for easy MCU/MPU integration
  • Wide temperature operating range (-20ºC to 70ºC)
  • Low power consumption suitable for battery-powered devices
  • Cost-effective solution for mid-range embedded display projects
Applications
  • Industrial Control: HMI for frequency converters, PLC control panels, textile machinery, packaging equipment, and intelligent instruments
  • Vehicle & Transportation: Navigation systems, instrument panels, monitoring terminals, and bus card readers
  • Portable Terminals: Handheld POS machines, logistics scanners, medical testing instruments, and data collectors
  • Smart Home & Appliances: Charging stations, air conditioning controllers, smart home gateways, and vending machines
  • Security & IoT: Access control systems, intercom units, and network camera displays

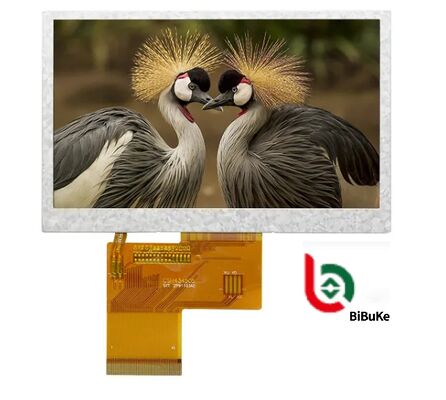

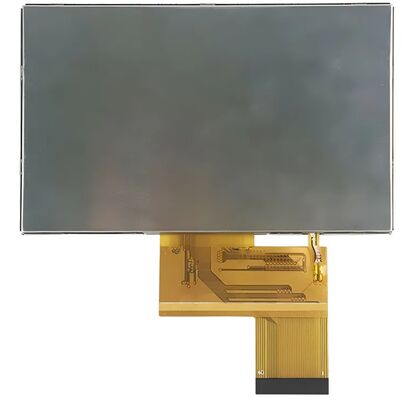

4.3-Inch 480x272 Resistive Touch IPS TFT LCD Display with All Viewing Angles 0 4.3-Inch 480x272 Resistive Touch IPS TFT LCD Display with All Viewing Angles 1 4.3-Inch 480x272 Resistive Touch IPS TFT LCD Display with All Viewing Angles 2
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specifications or drawing. If unavailable, send samples and we'll recommend suitable standard products or customize based on your requirements.
This LCD is what we want, but it's too large. Do you have smaller sizes with modified display content?
For segment type LCD modules requiring size or content modifications, new LCD glass modules with custom tooling are necessary.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type according to your specifications.
Can you customize a new LCD module?
Yes, we provide full customization services. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer, display type, connector mode, temperature ranges, voltage requirements, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for standard products.
What is the production lead time?
Standard products in stock ship within one day after payment. Mass production for custom orders typically takes 15-30 days, with earlier completion communicated in advance.
